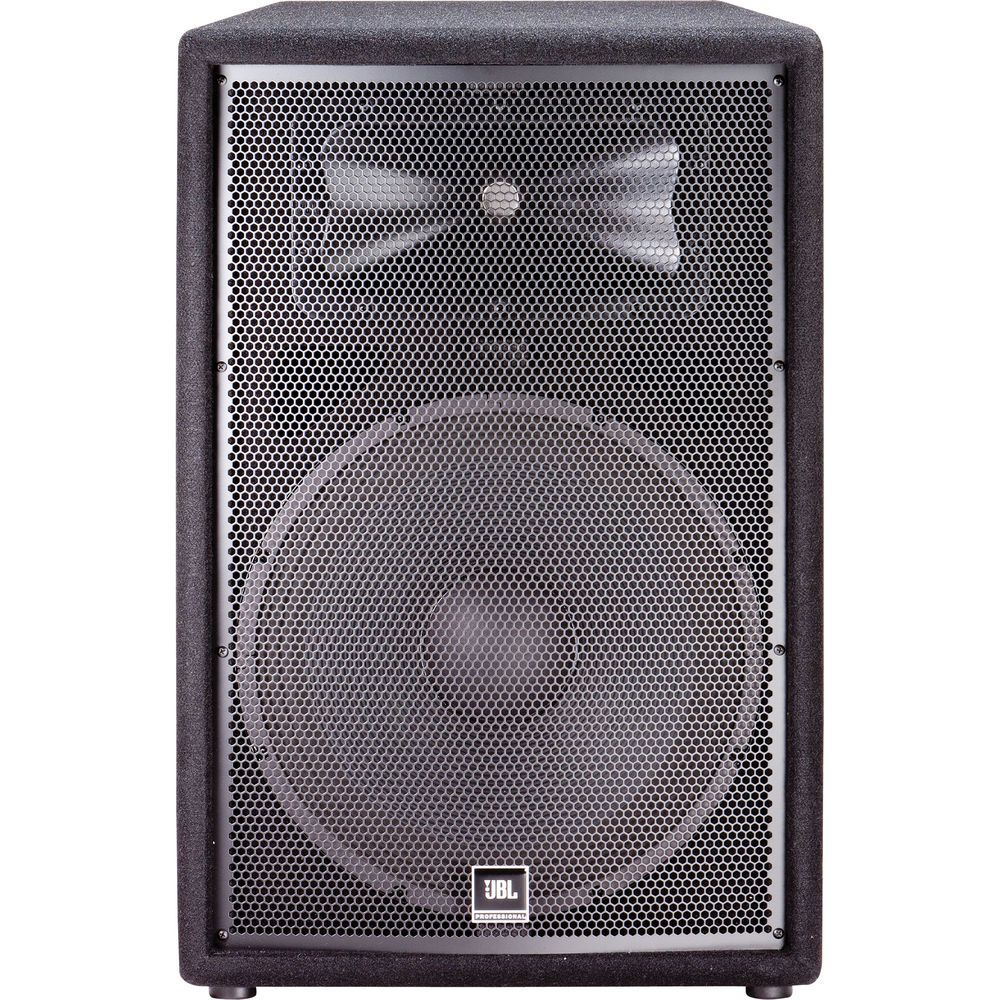

JBL JRX215 | 500w 15-in Two-way Loudspeaker

JRX215

15" Two-Way Sound Reinforcement Loudspeaker System

The JRX215 is a two-way 15" loudspeaker system. It is suitable for live sound and speech reinforcement applications. It features a 2.5" voice coil and a 1" compression driver, as well as a frequency range of 59 Hz to 13 kHz.

Its high-frequency driver is protected by a SonicGuard system, while the speaker's overall MDF construction allows for both durability and a suitable low-frequency response. With its non-resonant steel handles, the speaker is portable, even at a weight of 60.5lbs. For connections, this loudspeaker has 1/4" TS and Neutrik SpeakON terminations.

• Low frequency driver has a 2.5" / 64mm diameter edge-wound ribbon voice coil, providing a cross-sectional wire area in the voice coil gap
• JBL 2414H-C 1" (25mm) polymer diaphragm compression driver delivers high frequency response
• The network topology crossover design shapes the frequency response to deliver coherent summation in the crossover region
• High-voltage capacitors and inductors with cores and heavy gauge wire enable the crossover network to handle high power without saturating
• Progressive Transition high frequency waveguide provides coverage control, reduced distortion, and smoother frequency response
• The enclosure is constructed from 0.75" / 19mm MDF (Medium Density Fiberboard) to ensure durability and suitable low-frequency performance
• SonicGuard protection for high frequency driver preserves against excess power without interrupting performance
• Non-resonant, all-steel handles
• 18-gauge perforated, steel grille for protecting internal components from damage
• Dual-angle pole-mount socket allows the speakers to tilt 10° for more uniform audience coverage

Specifications

• Speaker Type
  • Passive Loudspeaker
• Configuration
  • 2-Way
• Total Passive Power Handling
  • 250 W / 1000 W Peak
• Nominal Impedance
  • 8 Ohms
• LF Driver
  • 1x 15" / 38 cm Woofer
• HF Driver
  • 1x 1" / 25 mm Compression Driver
• Frequency Range/Response
  • 59 Hz to 13 kHz
• Maximum SPL
  • 129 dB
• Coverage Angle
  • 90° H x 50° V
• Crossover Frequency
  • 2100 Hz
• Audio I/O
  • 1x speakON NL4 Input
  • 1x 1/4" TS Input
• Color
  • Black
• Dimensions
  • 27.5 x 18.1 x 17" / 699 x 460 x 432 mm
• Weight
  • 60.5 lb / 27.4 kg

In The Box

• JBL JRX215 15" Two-Way Sound Reinforcement Loudspeaker System
• Limited 5-Year Manufacturer Warranty
