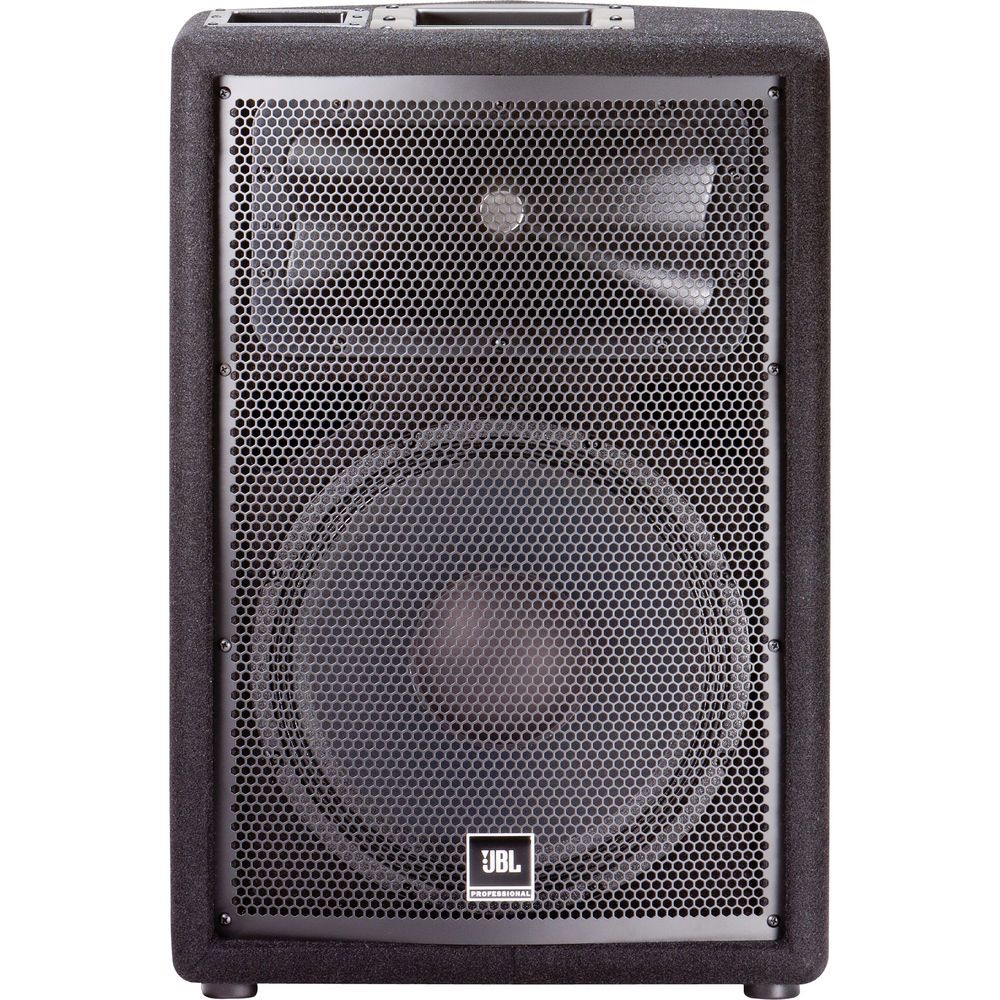

JBL JRX212 | 500w 12-in Two-way Stage Monitor Loudspeaker

JRX212

12" Two-Way Sound Reinforcement Loudspeaker System

The JRX212 is a two-way 12" loudspeaker system. It is suitable for live sound and speech reinforcement applications, and can also be used for monitoring on stage. It features a 2.5" voice coil and a 1" compression driver, as well as a frequency range of 60 Hz to 20 kHz.

Its high-frequency driver is protected by a SonicGuard system, while the speaker's overall MDF construction allows for both durability and a suitable low-frequency response. With its non-resonant steel handles, the 43 lb speaker is easier to move around. For connections, this loudspeaker has 1/4" TS and Neutrik SpeakON terminations.

• Low frequency driver sports a 2.5" / 64mm diameter edge-wound ribbon voice coil, providing a cross-sectional wire area in the voice coil gap
• JBL 2414H-C 1" (25mm) polymer diaphragm compression driver delivers high frequency response
• The network topology crossover design shapes the frequency response to deliver coherent summation in the crossover region
• High-voltage capacitors and inductors with cores and heavy gauge wire enable the crossover network to handle high power without saturating
• Progressive Transition high frequency waveguide provides coverage control, reduced distortion, and smoother frequency response
• The enclosure is constructed from 0.75" / 19mm MDF (Medium Density Fiberboard) to ensure durability and suitable low-frequency performance
• SonicGuard protection for high frequency driver preserves against excess power without interrupting performance
• Non-resonant, all-steel handles
• 18-gauge perforated, steel grille for protecting internal components from damage
• Dual-angle pole-mount socket allows the speakers to tilt 10° for more uniform audience coverage

Specifications

• Speaker Type
  • Passive Loudspeaker
• Configuration
  • 2-Way
• Total Passive Power Handling
  • 250 W / 1000 W Peak
• Nominal Impedance
  • 8 Ohms
• LF Driver
  • 1x 12" / 30.5 cm Woofer
• HF Driver
  • 1x 1" / 25 mm Compression Driver
• Frequency Range/Response
  • 60 Hz to 20 kHz
• Maximum SPL
  • 128 dB
• Coverage Angle
  • 90° H x 50° V
• Crossover Frequency
  • 2100 Hz
• Audio I/O
  • 1x speakON NL4 Input
  • 1x 1/4" TS Input
• Color
  • Black
• Dimensions
  • 23 x 15.7 x 12.8" / 58.4 x 39.9 x 32.5 cm
• Weight
  • 43 lb / 19.5 kg

In The Box

• JBL JRX212 12" Two-Way Sound Reinforcement Loudspeaker System
• Limited 5-Year Manufacturer Warranty
