JBL JRX225 | Dual 15" Two Way Sound Reinforcement Loudspeaker System

JRX225

Dual 15" Three-Way Sound Reinforcement Loudspeaker System

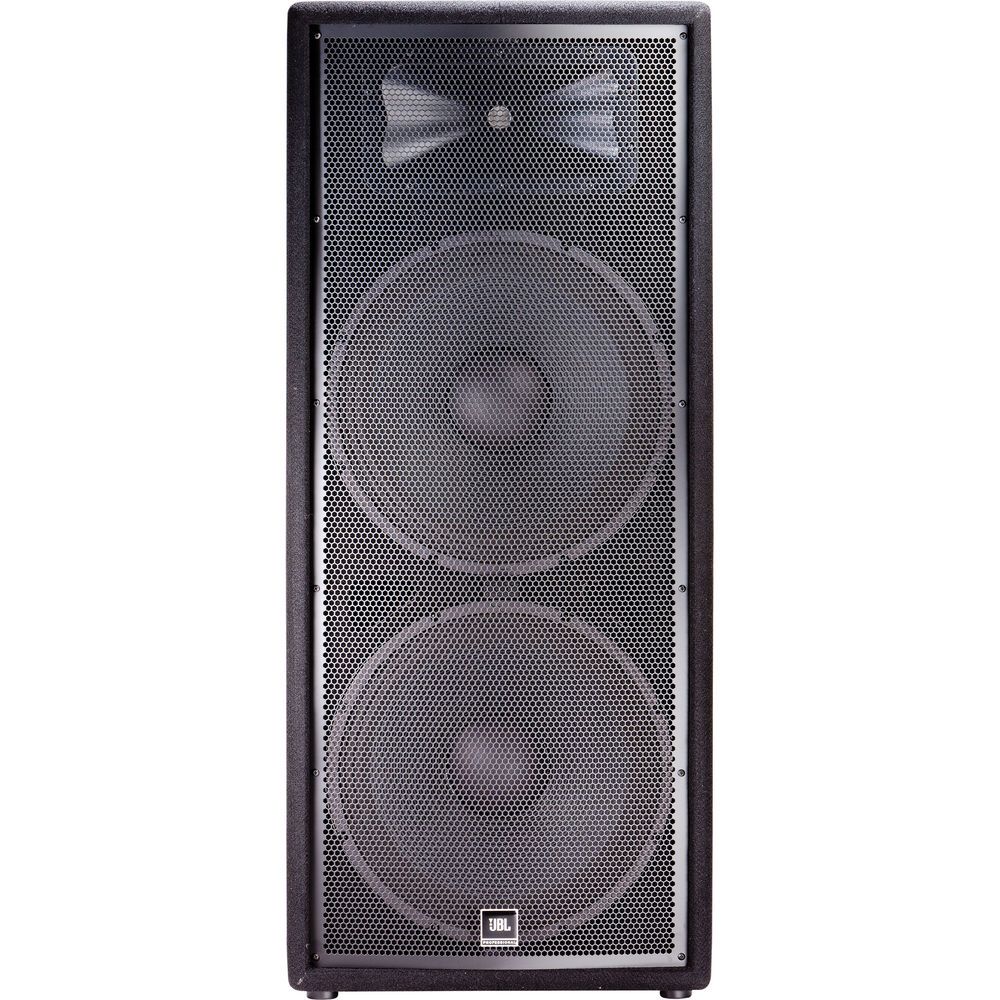

Suitable for live-music performances and DJ setups, the JRX225 from JBL provides dual 15" woofers, and thus, offers much in the way of low-end without muddying up the midrange of your signal, providing a solid solution if you're looking for a speaker capable of reproducing thick, lower frequencies without a subwoofer. It can handle between 500 and 1000W into 4 Ohms, and it provides SpeakON and 1/4" TS phone jacks. The JRX225 offers other features such as a rugged 19mm MDF enclosure, steel handles, and a perforated steel grille. Its high-frequency driver is protected by SonicGuard technology, while its waveguide provides coverage control, minimized distortions, and an even frequency response.

• Dual JBL low-frequency drivers with a 2.5"-diameter edgewound-ribbon voice coil
• JBL 2414H-C 1"-polymer-diaphragm compression driver
• Crossover design shapes frequency response, delivering coherent summation in the crossover region
• "Quasi 3-Way" design provides low-end without sacrificing performance in the critical midrange; the upper woofer produces mid-frequencies and bass, while the lower woofer concentrates on bass only, thus resulting in a reduction of midrange phase cancellation
• High-voltage capacitors and inductors with cores and heavy-gauge wire enable the crossover network to handle high power without saturating
• High-frequency waveguide provides coverage control, reduced distortion, and smooth frequency response
• The rugged, acoustically efficient enclosure is constructed from 19mm MDF (Medium Density Fiberboard) to ensure durability and low-frequency performance
• SonicGuard protects the high-frequency driver from excess power without interrupting performance
• Non-resonant, all-steel handles
• 18-gauge perforated steel grille protects components from damage

Specifications

• Speaker Type
  • Passive Loudspeaker
• Configuration
  • 3-Way
• Total Passive Power Handling
  • 250 W / 1000 W Peak
• Nominal Impedance
  • 4 Ohms
• LF Driver
  • 2x 15" / 38 cm Woofer
• HF Driver
  • 1x 1" / 25 mm Compression Driver
• Frequency Range/Response
  • 42 Hz to 18 kHz (-10dB)
  • 62 Hz to 13 kHz (+/- 3dB)
• Maximum SPL
  • 133 dB
• Coverage Angle
  • 90° H x 50° V
• Crossover Frequency
  • 2300 Hz
• Audio I/O
  • 1x speakON NL4 Input
  • 1x 1/4" TS Input
• Color
  • Black
• Dimensions
  • 43 x 18.3 x 16.8" / 109.2 x 46.4 x 42.6 cm
• Weight
  • 94 lb / 42.6 kg

In The Box

• JBL JRX225 Dual 15" Three-Way Sound Reinforcement Loudspeaker System
• Limited 5-Year Manufacturer Warranty
