MACKIE THUMP 15 V4 | 15-inch Powered Loudspeaker | Wireless Streaming & Linking

Thump15v4

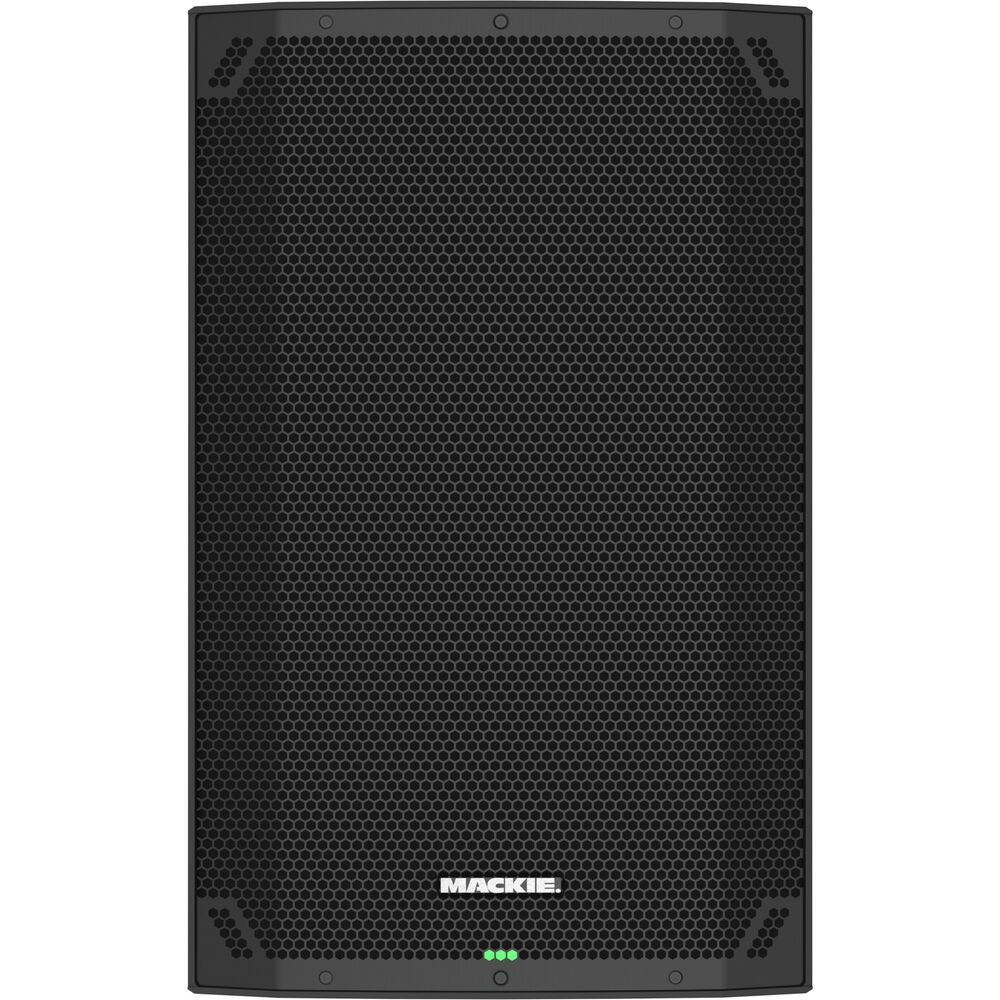

15" Professional Powered Loudspeaker with SoundCheck DSP and Bluetooth

Thump15v4 is a professional, portable loudspeaker featuring SoundCheck DSP that's easy to operate thanks to its simple interface. Simply press a button to select voicing modes that transform the Thump15v4 into an ideal PA speaker, DJ speaker, stage monitor, or flat speaker with pure sound.

Keep high-pressure professional gigs running smoothly by using the SoundCheck DSP Instant Setup that offers Music Ducking, Feedback Eliminator, and Outdoor Mode. The built-in mixer allows you to connect two mic/line sources. Pair your phone via Bluetooth for wireless streaming and linking while controlling every setting wirelessly from the Thump Connect 2 app.

• Loudest volume with 130 dB maximum SPL
• Lowest bass with 34 Hz low frequency response
• Clearest sound with SoundCheck DSP
• 1400W Class-D amp, 1” compression driver, 15” woofer
• Bluetooth streaming, linking and Thump Connect 2 app
• Premium metal handles and rugged frame
• M10 fly points for suspending and permanent installation

SoundCheck DSP Voicing Modes

Flat Mode: Neutral, Pure Sound

• You work hard to shape your sound. If you're a guitarist, you might create a signature tone using a perfectly curated pedalboard. If you're a live sound professional, you know how to build your mix using tools like EQ and compression. Flat mode turns Thump12v4 into a full range, flat response FRFR speaker, projecting your sound in its purest form.

DJ Mode: Music Playback

• Maybe you're a DJ, and you need enough “low end” in your speaker to get people moving their “low ends” on the dance floor. Maybe you just need a speaker to stream music at parties or events. For music playback that really thumps, use Thump12v4 in DJ mode. Connect your DJ gear or stream with Bluetooth®. (Or both at the same time!)

Live Mode: Live Music and Events

• Mackie rules live sound. Thump12v4 takes that reputation into a new generation with enhanced sound quality, more volume and modern voicing that makes your vocals pop with midrange clarity. Used in Live mode, Thump12v4 delivers flawless sound for vocal performances, speeches and even karaoke.

Wedge Mode: Stage Monitor

• Thump12v4 makes the perfect stage monitor or wedge monitor. Just flip the speaker on its side and switch to Wedge mode. You'll hear yourself clearly on stage, giving you that extra boost of confidence you need when you're belting it out for the crowd. (Putting your foot up on the monitor won’t improve your sound, but Wedge mode will.)

SoundCheck DSP Instant Setup

Feedback Eliminator

• Remember in those old movies when a principal is giving a speech to the students using a microphone, and there's an ear-piercing squeal? Sorry to tell you, but that is now a thing of the past. With Feedback Eliminator, all your performances are feedback free, without you having to know a thing about audio.

Music Ducking

• You’re DJing. The music is flowing. People are moving on the dance floor. But, oh no: You have to make an announcement. Don’t want to bring the mood to a screeching halt? Just turn on Music Ducking. The music will automatically dim (not stop) when you're speaking into the mic, then return to full volume.

Outdoor Mode

• Speakers sound different outdoors. Music that once sounded full and punchy might become muffled and dull. There are scientific reasons for this difference, involving resonance and reflections. But you don’t need to worry about that. Just use Outdoor mode when you take Thump15v4 outside.

Bluetooth Streaming and App

• Stream songs from your phone or tablet with Bluetooth. Link two Thump15v4 speakers wirelessly for stereo, zone or dual mono playback without cables. Control every setting on the speaker from across the room with the intuitive Thump Connect 2 app, so you're never caught out of reach. Bluetooth works simultaneously with analog inputs and passes to XLR mix output.

Built-In Mixer

Connect Thump12v4 to anything: microphones, DJ controllers, aux playback devices, keyboards, guitar pedalboards and more, using the combo inputs on the built-in mixer. Adjust the input gain and overall volume for the perfect mix. The convenient XLR output is great for chaining the signal to another speaker.

Thump Connect 2 App

Pair your phone via Bluetooth and control your Thump12v4 or Thump12v4 loudspeaker with the Thump Connect 2 app. You can adjust anything from EQ and speaker modes to channel levels and custom presets-all from the center of the dance floor. Connect to two speakers at once to control both from a single app and stream in stereo, zone or dual mono.

Specifications

• Speaker Type
  • Active Loudspeaker
• Configuration
  • 2-Way
• Enclosure Type
  • Bass-Reflex
• Total Output Power
  • 1400 W Peak
• Amplifier Power Rating
  • Low Frequency (LF) 1200 W Peak
  • High Frequency (HF) 200 W Peak
• Amplifier Class
  • Class-D
• LF Driver
  • 1x 15" / 38 cm Woofer
  • Magnet: Ferrite
• HF Driver
  • 1x 1" / 25.4 mm Polymer Compression Driver
• Frequency Range/Response
  • 34 Hz to 20 kHz (-10 dB)
  • 41 Hz to 20 kHz (-3 dB)
• Maximum SPL
  • 130 dB SPL
• Coverage Angle
  • 140° H x 40° V
• Protections
  • Output Limiter, RMS, Signal Limiter, Thermal
• Crossover Frequency
  • 1800 Hz
• Dynamic Processing
  • Peak Limiter
• Digital Signal Processing
  • Venue Settings, Voicing Modes
• Audio I/O
  • 2x Combo XLR-1/4" TRS Mic/Line Input
  • 1x 1/8" / 3.5 mm TRS Line Input
  • 1x XLR 3-Pin Line Output
• Wireless
  • Bluetooth 5.0
• Mobile App Compatible
  • Yes: Android & iOS
  • App Name: Thump Connect 2
  • Functionality: Adjust Settings, Remote Control, Setup
• AC Input Power
  • 100 to 240 VAC, 50 / 60 Hz
• AC Power I/O
  • 1x IEC Input
• Current Consumption
  • 10 A
• Power Consumption
  • 300 W
• Color
  • Black
• Mounting
  • Stand Mount: 1 x 1.38" / 35 mm Pole Socket (Bottom)
  • Suspension Points: 3 x M10 Fly Point
• Handles
  • 1x Each Side
  • 1x Top
• Dimensions
  • 27.4 x 17.3 x 14" / 696 x 439.4 x 355.6 mm
• Weight
  • 32.6 lb / 14.8 kg

In The Box

• Mackie Thump15v4 15" Professional Powered Loudspeaker with SoundCheck DSP and Bluetooth
• Power Cord
• Limited 1-Year Manufacturer Warranty
