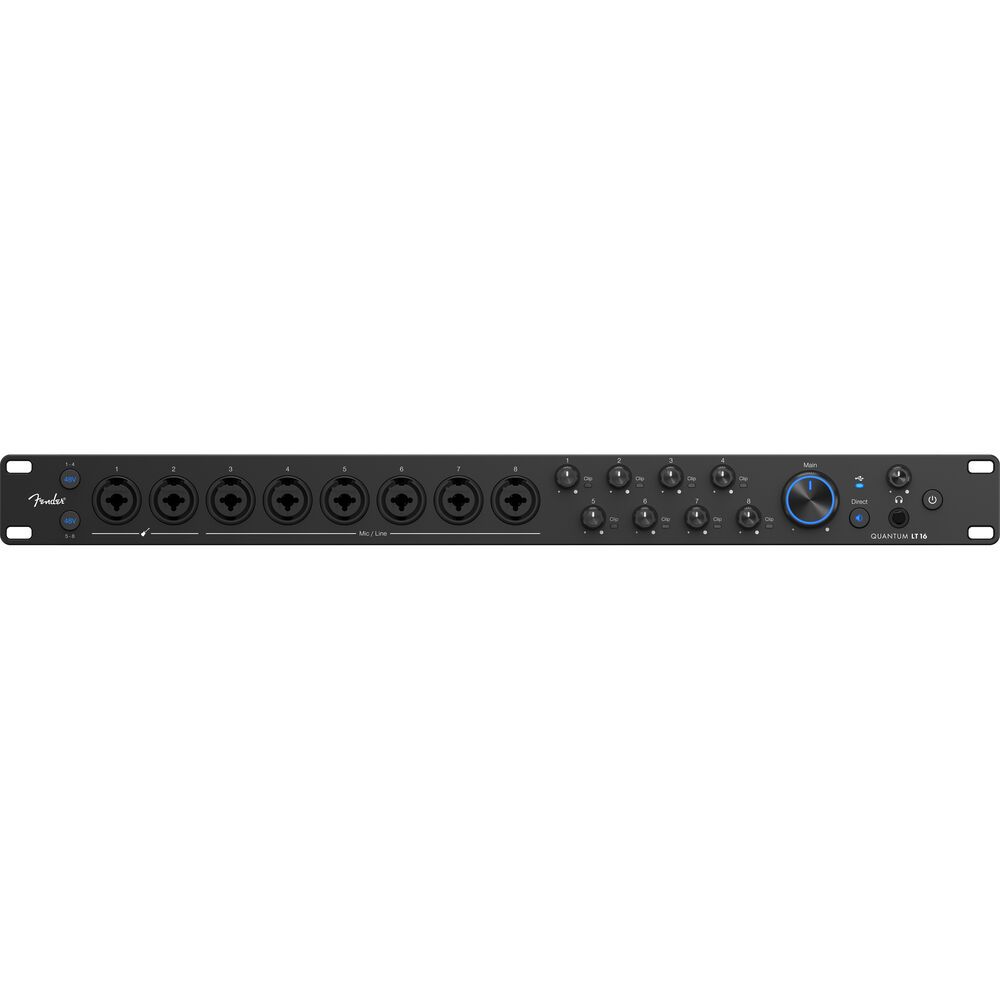

FENDER STUDIO PRO QUANTUM Lt 16 | 16x8 24bit/192khz Usb-c Audio Interface

QUANTUM LT 16

16x8 USB-C Audio Interface

Quantum LT 16 is a 16x8 USB-C audio interface combining PreSonus conversion with two Fender-designed Hi-Z instrument inputs. With eight XLR-1/4" combo mic/line inputs on the front, DC-coupled outputs, and eight balanced line inputs, this interface can handle projects big and small.

The eight line inputs feature selectable +4 dBu or -10 dBV operation, ensuring they can support mic preamps, synths, mixers, and many other devices. With front-panel jacks, the Quantum LT 16 sports 14 line inputs total. The eight MAX-HD mic preamps provide up to 75 dB of transparent gain. The interface offers a balanced 1/4" TRS stereo pair for the main output and six DC-coupled 1/4" outputs for integrating modular and analog synthesizers. The 5-pin DIN MIDI I/O keeps you synchronized with legacy MIDI hardware. AD/DA up to 24-bit / 192 kHz ensures pristine audio quality. With features like loopback for podcasting, standalone Mixer mode for DAW-free mixing, and Mic Pre mode for using the interface as a pure eight-mic preamp, the Quantum LT 16 can bend to fit any application, private or professional. The Quantum LT 16 includes a free perpetual license for Fender Studio Pro.

For Project Studios and Hybrid Workflows

The Fender Quantum LT 16 is built for project studios, multi-instrument setups, and electronic musicians demanding maximum flexibility. Eight MAX-HD mic preamps (+75 dB of gain) capture pristine sound from large ensembles or multi-mic setups. Fourteen total analog line inputs (six front-panel combo inputs plus eight rear-panel 1/4" TRS inputs) allow seamless integration of external mic preamps, synths, mixers, and line-level devices, expanding creative possibilities.

Versatile I/O and Performance

DC-coupled outputs connect to modular and analog synths via control voltage, while 5-pin DIN MIDI I/O ensures easy hardware integration. Custom low-latency drivers and high-performance converters provide ultraresponsive recordin. Loopback functionality simplifies streaming, podcasting, and flexible monitoring. Standalone Mixer mode and Mic Pre mode expand LT 16’s versatility, letting it serve as a simple mixer or 8-channel mic preamp in hybrid setups.

Software Features

A perpetual license for Fender Studio Pro (a $199.99 value) is included, giving you a professional DAW with exclusive Mustang and Rumble plug-ins. Built-in My Fender access ensures fast setup and support, making LT 16 the centerpiece of any professional or hybrid studio.

Specifications

• Channels of I/O
  • 16 Inputs / 8 Outputs
• Maximum Sampling Rate
  • 192 kHz / 24-Bit
• Number of Microphone Inputs
  • 6
• Input Level Adjustment
  • 8x Knob
• Gain/Trim Range
  • 75 dB
• Analog Audio I/O
  • 6x Combo XLR-1/4" TRS Balanced Mic/Line Input (Front Panel)
  • 2x Combo XLR-1/4" TS Mic/Line/Hi-Z Input (Front Panel)
  • 8x 1/4" TRS Balanced Line Input
  • 6x 1/4" TRS Line Output
  • 2x 1/4" TRS Balanced Line Output
  • 1x 1/4" TRS Headphone Output
• Phantom Power
  • 48 V
• Host Connection
  • USB-C
• MIDI I/O
  • 1x DIN 5-Pin Input
  • 1x DIN 5-Pin Output
• Sample Rates
  • Up to 192 kHz
• Bit Depths
  • 24-Bit
• OS Compatibility
  • Windows / macOS
• Power Requirements
  • USB Bus Power
• Dimensions
  • 19 x 5 x 1.75" / 48.3 x 12.7 x 4.45 cm
• Weight
  • 4.8 lb / 2.2 kg

In The Box

• Fender Quantum LT 16 16x8 USB-C Audio Interface
• Limited 2-Year Manufacturer Warranty
