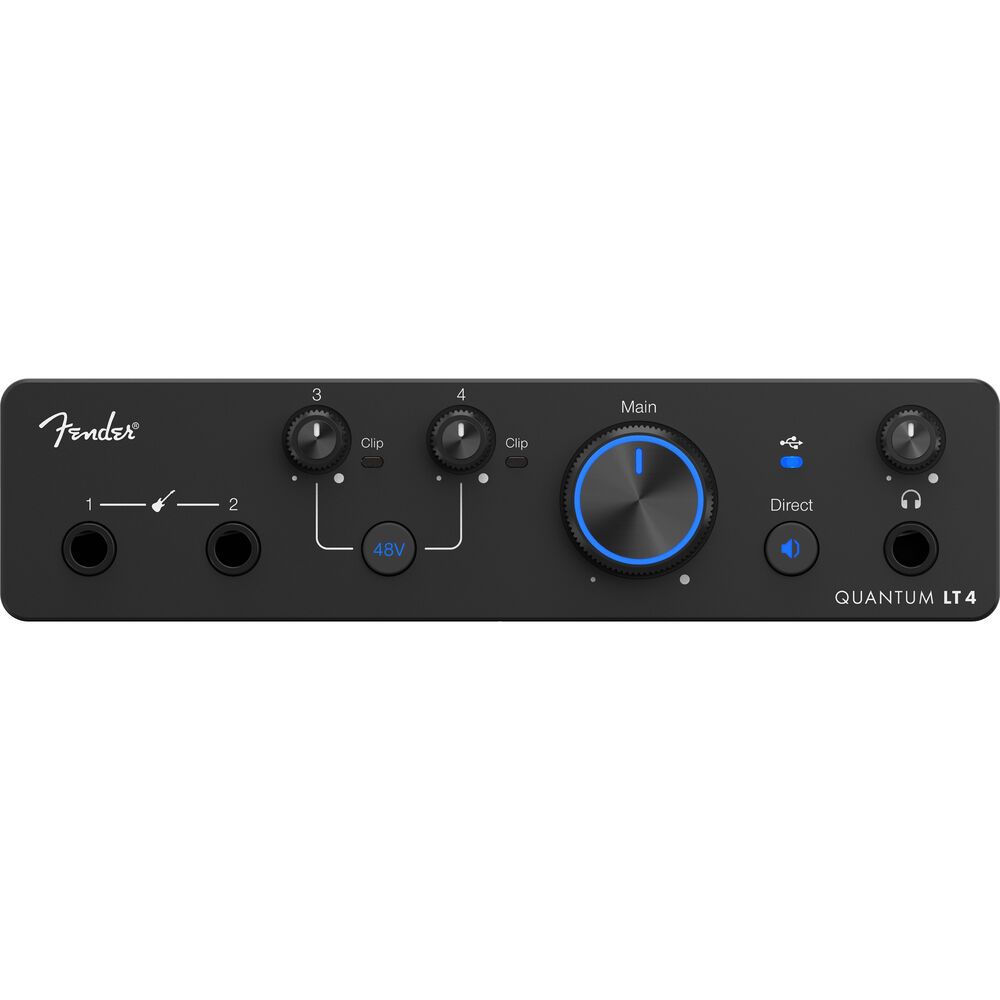

FENDER STUDIO PRO QUANTUM Lt 4 | 4x2 24bit/192khz Usb-c Audio Interface

QUANTUM LT 4

4x2 USB-C Audio Interface

Quantum LT 4 is a 4x2 USB-C audio interface that marries PreSonus 24-bit / 192 kHz AD/DA with two Fender-designed Hi-Z instrument inputs. With two MAX-HD mic preamps built in, you can enjoy up to 75 dB of transparent gain, easily supporting everything from large-diaphragm condensers to ribbon and dynamic mics.

Both mic and line input are supported via the rear-panel XLR-1/4" TRS combo inputs, while the instrument inputs are positioned on the front panel for getting every nuance and ounce of tone out of your electric guitar, bass, or keyboard. The interface provides balanced 1/4" TRS outputs. Custom low-latency drivers ensure hassle-free monitoring and mixing, while loopback functionality is ideal for bringing in an external guest for streaming and podcasting. With standalone Mixer mode, you can engage in analog-style mixing directly on the interface, no DAW or computer required. The Quantum LT 4 is USB-C bus powered and provides a 6-month free trial of Fender Studio Pro.

Powerful and Portable

Compact, bus-powered, and portable, the Fender Quantum LT 4 is perfect for home studios, mobile setups, and collaborative projects. With built-in My Fender access, setup, account registration, and support are effortless, so you can focus on creating and performing.

Versatile I/O and Performance

The Fender Quantum LT 4 has diverse connectivity and powerful performance to fit many applications:

• Two MAX-HD mic preamps, each providing +75 dB of gain, delivering transparent, low-noise performance for any microphone—from condenser to ribbon.
• Fender-designed instrument inputs ensure guitars, basses, and other instruments sound natural and dynamic, straight out of the box.
• Custom low-latency drivers and high-performance converters make the LT 4 responsive and accurate, so performers feel every nuance in real time.
• Balanced TRS outputs and a high-powered headphone output give monitoring versatility.
• Loopback functionality simplifies streaming, podcasting, and content creation without additional hardware.

Software Features

Software integration with Fender Studio Pro and Universal Control enables remote control of your direct-monitoring mixer from your computer, tablet, or phone, giving you full flexibility even when away from the interface. Standalone Mixer Mode adds further utility, letting you use the LT 4 as a simple analog mixer when a DAW isn't needed. Every Quantum LT 4 includes a 6-month free trial of Fender Studio Pro.

Specifications

• Channels of I/O
  • 4 Inputs / 2 Outputs
• Maximum Sampling Rate
  • 192 kHz / 24-Bit
• Number of Microphone Inputs
  • 2
• Input Level Adjustment
  • 2x Knob
• Gain/Trim Range
  • 75 dB
• Analog Audio I/O
  • 2x Combo XLR-1/4" TRS Balanced Mic/Line Input
  • 2x 1/4" TS Unbalanced Hi-Z Input
  • 2x 1/4" TRS Balanced Line Output
  • 1x 1/4" TRS Headphone Output
• Phantom Power
  • 48 V
• Host Connection
  • USB-C
• Sample Rates
  • Up to 192 kHz
• Bit Depths
  • 24-Bit
• OS Compatibility
  • Windows / macOS
• Power Requirements
  • USB Bus Power
• Dimensions
  • 7 x 3.5 x 1.75" / 17.8 x 8.9 x 4.45 cm
• Weight
  • 1.9 lb / 0.9 kg

In The Box

• Fender Quantum LT 4 4x2 USB-C Audio Interface
• Limited 2-Year Manufacturer Warranty
