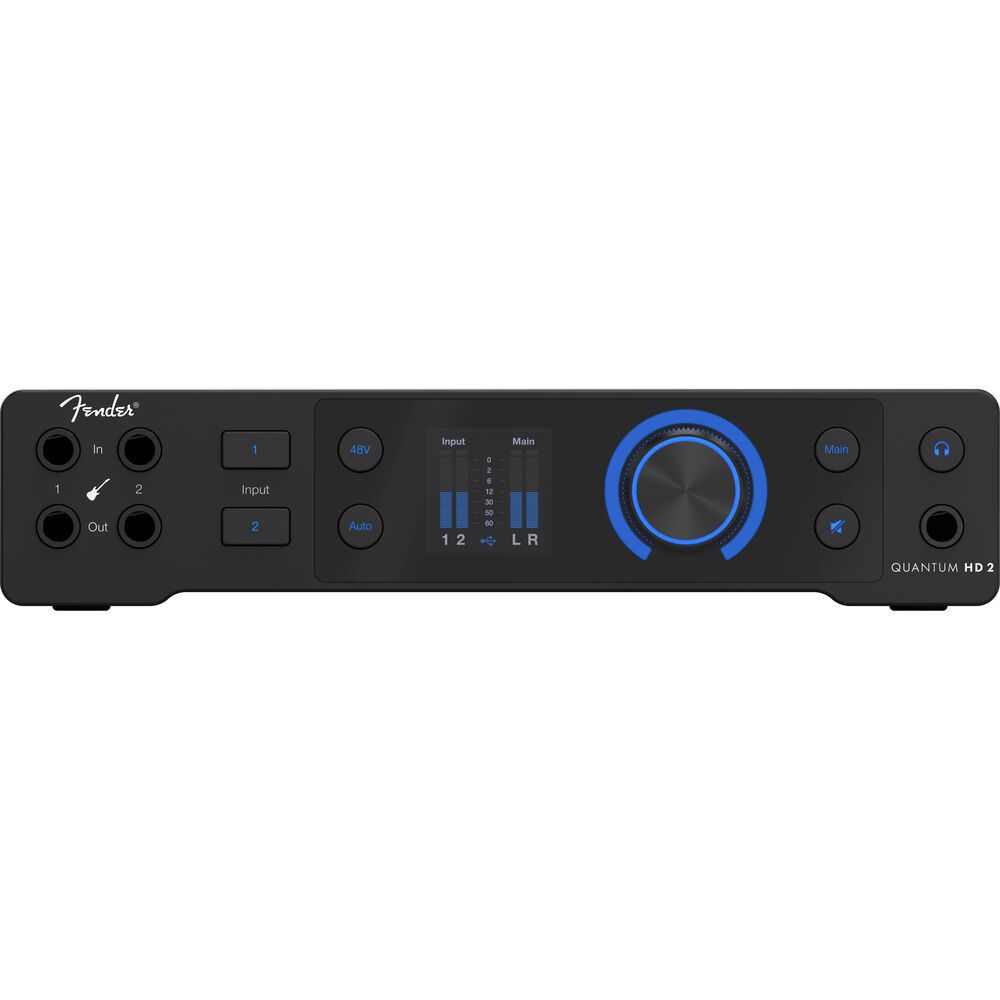

FENDER STUDIO PRO QUANTUM Hd 2 | 20x24 32bit/192khz Usb-c Audio Interface

QUANTUM HD 2

20x24 USB-C Audio Interface

Quantum HD 2 is a 20x24 USB-C audio interface that has features like Auto Gain and 32-bit / 192 kHz conversion for effortlessly pristine audio and an efficient workflow. With Fender-designed instrument inputs and 16-channel ADAT, this interface can grow with your needs.

The MAX-HD mic preamps provide highly transparent gain up to 75 dB. Connectivity can be greatly expanded with 16-channel ADAT and 2-channel S/PDIF I/O, offering the ability to record large ensembles if necessary. Reamp outputs can be used for experimenting with guitar amps and pedals via prerecorded takes. The DSP monitor mixer and loopback functions are ideal for podcasting and streaming. With either Fender Studio Pro or the Universal Control app, you can precisely control virtually every function on the interface remotely. This interface includes a perpetual license for Fender Studio Pro.

A Feature for Every Occasion

• Next-generation MAX-HD mic preamps with +75 dB of gain, ultralow-latency drivers, and high-performance 32-bit / 192 kHz converters
• Front-facing Fender instrument inputs deliver clean and dynamic recordings for guitar and bass
• Auto Gain simplifies setup, while reamp outputs allow experimentation with amps and pedals
• The DSP monitor mixer and loopback make streaming, podcasting, and monitor mix creation effortless

Comprehensive Connectivity

The Quantum HD 2 sports a plethora of connections, including:

• Two XLR-1/4" combo mic/line inputs
• Two main 1/4" TRS balanced outputs and two auxilliary 1/4" TRS balanced line outputs
• Two Fender-designed Hi-Z instrument inputs and two outputs, ideal for capturing passive instruments and reamping
• A front-panel 1/4" TRS headphone output
• Optical TOSLINK ports for up to 16 channels of ADAT I//O
• DB-9 port for MIDI and S/PDIF duties

Software-Based Control

Control all critical functions through Fender Studio Pro or the Universal Control app, including preamp gain, phantom power, and routing. Compact and versatile, the HD 2 scales perfectly for project studios, home studios, and mobile recording setups. The HD 2 includes a free perpetual license for Fender Studio Pro.

Specifications

• Channels of I/O
  • 20 Inputs / 24 Outputs
• Maximum Sampling Rate
  • 192 kHz / 24-Bit
• Number of Microphone Inputs
  • 1
• nput Level Adjustment
  • Knob
• Gain/Trim Range
  • 75 dB
• Analog Audio I/O
  • 2x Combo XLR-1/4" TRS Balanced Mic/Line Input
  • 1x 1/4" TS Unbalanced Hi-Z Input (Front Panel)
  • 2x 1/4" TRS Balanced Line Output
  • 2x 1/4" TS Unbalanced Hi-Z/Re-Amp Output (Front Panel)
  • 1x 1/4" TRS Headphone Output (Front Panel)
  • 2x 1/4" TRS Balanced Main Output
• Phantom Power
  • 48 V
• Digital Audio I/O
  • 1x TOSLINK Optical ADAT Input
  • 1x TOSLINK Optical ADAT Output
• Host Connection
  • USB-C
• Sync I/O
  • 1x DB-9 S/PDIF Input or Output
• Sample Rates
  • Up to 192 kHz
• Bit Depths
  • 32-Bit
• OS Compatibility
  • Windows / macOS
• Power Requirements
  • DC Input
• Dimensions
  • 8.5 x 7.5 x 1.9" / 21.6 x 19.1 x 4.8 cm
• Weight
  • 2.9 lb / 1.3 kg

In The Box

• Fender Quantum HD 2 20x24 USB-C Audio Interface
• Limited 2-Year Manufacturer Warranty
