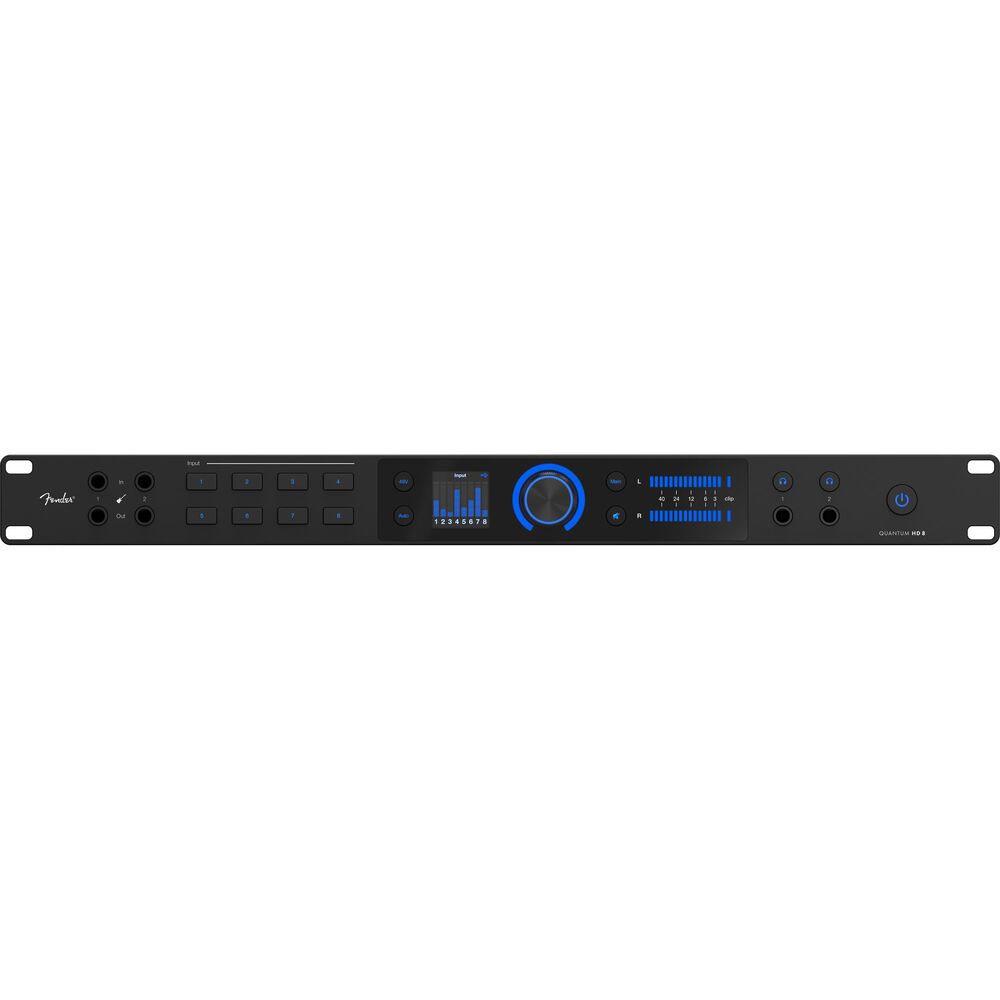

FENDER STUDIO PRO QUANTUM Hd 8 | 26x30 32bit/192khz Usb-c Audio Interface

QUANTUM HD 8

26x30 USB-C Audio Interface

Quantum HD 8 is a 26x30 USB-C audio interface that has features like Auto Gain and 32-bit / 192 kHz conversion for effortlessly pristine audio and an efficient workflow. With Fender-designed instrument inputs and 16-channel ADAT, this interface can grow with your needs.

The eight MAX-HD mic preamps provide highly transparent gain up to 75 dB and can support miking full ensembles or drum kits. Connectivity can be greatly expanded with 16-channel ADAT and 2-channel S/PDIF I/O. Furthermore, a standalone ADAT Preamp mode can be engaged to use the interface purely as an ADAT preamp. Reamp outputs can be used for experimenting with guitar amps and pedals via prerecorded takes. The DSP monitor mixer and loopback functions are ideal for podcasting and streaming. With either Fender Studio Pro or the Universal Control app, you can precisely control virtually every function on the interface remotely. This interface includes a perpetual license for Fender Studio Pro.

A Feature for Every Occasion

• Eight Next-generation MAX-HD mic preamps with +75 dB of gain, ultralow-latency drivers, and high-performance 32-bit / 192 kHz converters
• Front-facing Fender instrument inputs deliver clean and dynamic recordings for guitar and bass
• Auto Gain simplifies setup, while reamp outputs allow experimentation with amps and pedals
• The DSP monitor mixer and loopback make streaming, podcasting, and monitor mix creation effortless

Comprehensive Connectivity

The Quantum HD 8 has a plethora of connections, including:

• Eight XLR-1/4" combo mic/line inputs
• Two Fender-designed Hi-Z instrument inputs and two outputs, ideal for capturing passive instruments and reamping
• Ten 1/4" TRS balanced line outputs (two main, eight auxilary)
• Two front-panel 1/4" TRS headphone output
• Two Optical TOSLINK ports for up to 16 channels of ADAT I//O
• DB-9 port for MIDI and S/PDIF connectivity
• BNC wordclock input and output

Software-Based Control

Full control via the Universal Control app or Fender Studio Pro enables precise configuration without interrupting your workflow. HD 8 scales with studio demands, providing an all-in-one solution for professional creators.

Specifications

• Channels of I/O
  • 26 Inputs / 30 Outputs
• Maximum Sampling Rate
  • 192 kHz / 24-Bit
• Number of Microphone Inputs
  • 8
• nput Level Adjustment
  • Knob
• Gain/Trim Range
  • 75 dB
• Analog Audio I/O
  • 8x Combo XLR-1/4" TRS Balanced Mic/Line Input
  • 2x 1/4" TS Unbalanced Hi-Z Input
  • 6x 1/4" TRS Balanced Line Output
  • 2x 1/4" TS Unbalanced Hi-Z/Re-Amp Output
  • 2x 1/4" TRS Headphone Output
  • 2x 1/4" TRS Balanced Main Output
• Phantom Power
  • 48 V
• Digital Audio I/O
  • 1x TOSLINK Optical ADAT Input
  • 1x TOSLINK Optical ADAT Output
• Host Connection
  • USB-C
• Sync I/O
  • 1x DB-9 S/PDIF Input or Output
  • 1x BNC Word Clock Inut
  • 1x BNC Word Clock Output
• Sample Rates
  • Up to 192 kHz
• Bit Depths
  • 32-Bit
• OS Compatibility
  • Windows / macOS
• Power Requirements
  • DC Input
• Dimensions
  • 19 x 8.6 x 1.7" / 48.3 x 21.8 x 4.3 cm
• Weight
  • 6.3 lb / 2.9 kg

In The Box

• Fender Quantum HD 8 26x30 USB-C Audio Interface
• Limited 2-Year Manufacturer Warranty
