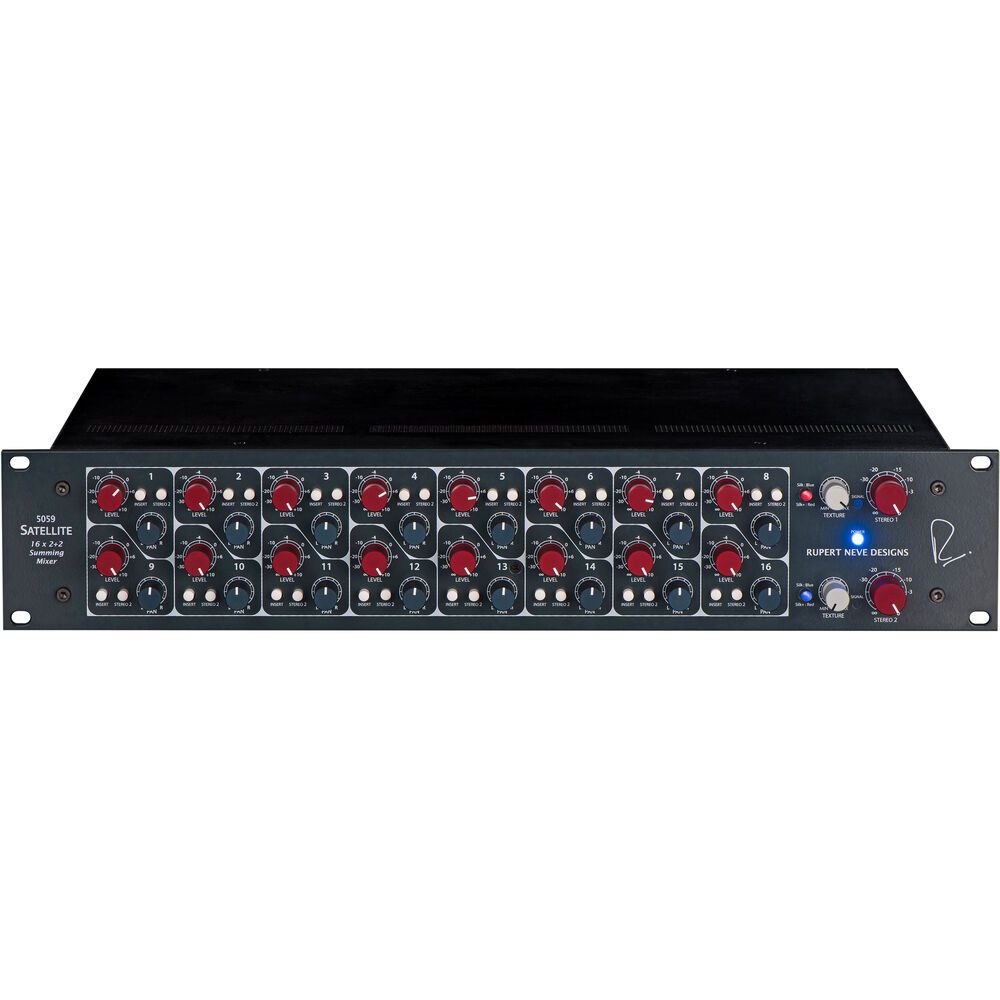

5059 SATELLITE

16 x 2+2 Summing Mixer

Flexible, feature-rich analog summing with classic Rupert Neve console sound.Built around many of the topologies and custom transformers made famous with the 5088 mixer, the 5059 is a 16 x 2+2 summing mixer designed to deliver the ultimate out-of-the-box sonics and control in a 2U, rack-mountable chassis.The 5059 features 16 channels with individual level, pan, inserts, stereo-2 sends, and master texture controls, providing easy integration with outboard equipment, complete control for two separate stem mixes, and the ability to dial in analog mojo in two modes. With the same sonic heritage as mixers used to create countless hit records, the 5059 Satellite imbues your tracks with the legendary warmth and presence of a Rupert Neve design.“The difference in mixing in the box vs. through that summing mixer...it’s unbelievable the effect that it has.”

• Warmth and Larger-Than-Life Sound
• 16 Pannable Inputs, Inserts, and Returns
• Silk & Texture Controls Saturate
• +/-24V Class-A Topologies & Transformers
• Zero Crossover Distortion and Purity
• Individual Continuously Variable Levels
• Level for Each Stereo Output -∞ to 0 dB

Specifications

• Front Panel Controls
  • 16 x channel level rotary knob
  • 16 x channel pan rotary knob
  • 16 x insert send/return push button
  • 16 x stereo 2 send push button
  • 2 x silk blue, silk red, bypass Button
  • 2 x stereo output texture rotary knob
  • 2 x stereo output level rotary knob
• Back Panel I/O Ports
  • 1 x 25-pin D-sub line inputs 1 through 8 connection
  • 1 x 25-pin D-sub line inputs 9 through 16 connection
  • 1 x 25-pin D-sub insert send 1 through 8 connection
  • 1 x 25-pin D-sub insert send 9 through 16 connection
  • 1 x 25-pin D-sub insert return 1 through 8 connection
  • 1 x 25-pin D-sub insert return 9 through 16 connection
  • 2 x balanced XLR pairs stereo 1 and stereo 2
• Frequency Response
  • 100 K load, ±0.1 dB from 20 to 20,000 Hz
  • -3 dB @ 3.5/185,000 Hz
• Noise
  • IEC-A-Weighted
  • Buss outputs: -106 dBV
  • Single channel assigned @ -∞: -104 dBV
  • Single channel assigned @ unity: -103 dBV
  • Un-weighted, 22 to 22,000 Hz: Single channel assigned @ +10
  • dB: -100dBV
• Outputs
  • Buss
  • Single channel assigned @ -∞: -101 dBV
  • Single channel assigned @ unity: -100 dBV
  • Single channel assigned @ +10dB: -97 dBV
• Signal-to-noise
  • +20 dBu output un-weighted, 22 to 22,000 Hz: 116 dB
  • +20 dBu output, IEC A weighted: 119 dB
  • +4 dBu output un-weighted, 22 to 22,000 Hz: 100 dB
  • +4 dBu output, IEC A weighted: 103 dB
• Output Level
  • Summing busses to XLR outputs, maximum output level, 20 to 40,000 Hz: +26 dBu
  • Single channel to buss, maximum output level, 20 to 40,000 Hz: +24.5 dBu
• Total Harmonic Distortion/Noise
  • 1 k Hz @ +20 dBu output: better than 0.003%
  • 20 Hz @ +20 dBu output: better than 0.005%
• Total Harmonic Distortion
  • Silk Engaged
  • Blue Silk: 100 Hz @ +20 dBu output, texture control 12 o'clock: 0.2% typical
  • Blue Silk: 100 Hz @ +20 dBu output, texture control fully CW: 0.65% typical
  • Red Silk: 100 Hz @ +20 dBu output, texture control 12 o'clock: 0.1% typical
  • Red Silk: 100 Hz @ +20 dBu output, texture control fully CW: 0.35% typical
• Slew Rate
  • 4 V/μs
• Crosstalk
  • Buss 1 to Buss 2
  • 1 kHz: Better than -90 dB
  • 10 kHz: Better than -70 dB
• Power / Consumption
  • AC mains, 100 to 240 VAC 50/60 Hz 45 W
• Fuse
  • 85 W
• Rack Size
  • 2U
• Dimensions
  • 3.5 x 19 x 8" (8.9 x 48.3 x 20 cm)
• Weight
  • 23 lb (10.4 kg)

In The Box

• 5059 SATELLITE 16 x 2+2 Summing Mixer
• Power Cord
• Limited 1-Year Manufacturer Warranty
