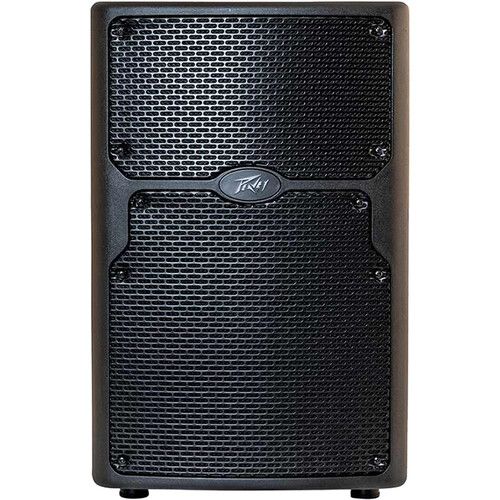

PEAVEY PVX P 10 Bluetooth | 10-inch Powered Loudspeaker W/ Bluetooth

PVXp 10 Bluetooth

10" 510W Powered Loudspeaker

The PVXp 10 Bluetooth 10" 510W Powered Loudspeaker is the ideal portable PA speaker, that can be used in a variety of orientations and configurations. The PVXp 10 delivers professional-quality audio in a powered 520W speaker that employs a heavy-duty 10" woofer with a 50 oz magnet.

Bluetooth compatibility enables users to stream and control the unit wirelessly from any area of the room, while many other controls can also be accessed directly on the unit itself. The PVXp 10 features a three-channel mixer with level control and a three-band EQ for each channel with a high-pass filter. An LCD display provides details on equalization presets as well as DSP operating parameters accessed via a one-knob selector. Top and bottom fly-point inserts ensure reliable mounting, and integrated handles facilitate quick and easy transport.

• Two-way bi-amped sound reinforcement enclosure
• 10" heavy-duty woofer with 2 3/8" voice coil and 50 oz. magnet
• RX10 compression driver, with 1" titanium diaphragm
• Reliable fan-cooled power amps with DSP protection
• Total of 520W peak dynamic power
• DSP control for precise crossover, EQ, and limiting functions
• DSP I/O is at 48 kHz and 24-bit, internal processing is 56-bit double-precision
• Peavey's Quadratic Throat Waveguide technology offers 100 x 60° coverage
• Asymmetrical horn aims the sound down 10°, at the audience, not over their heads
• Bluetooth input is via a dedicated input channel
• Analog input is via a combo XLR-1/4" TRS jack with balanced input
• Three channels in total, two for analog, and one for Bluetooth or AUX input via a 3.5mm jack
• Each channel has a level control and a three-band EQ section to adjust and shape the input signals
• Mix/Thru Output is via a male XLR jack
• Durable plastic injection-molded trapezoidal enclosure
• Extra angled section on right side allows floor monitor use
• Full-coverage heavy-duty perforated steel grilles with powder coat finish

Specifications

• Configuration
  • 2-Way
• Enclosure Type
  • Bass-Reflex
• Total Output Power
  • 520 W Peak
• Amplifier Power Rating
  • Low Frequency (LF) 400 W Peak
  • Mid Frequency (MF) 120 W Peak
• LF Driver
  • 1x 10" / 25.4 cm Woofer
  • Voice Coil: 2.38" / 60.45 mm
  • Magnet: 50 oz / 1.4 kg
• HF Driver
  • 1x 1" / 25.4 mm Horn-Loaded Titanium Compression Driver
• Frequency Range/Response
  • 52 Hz to 20 kHz (-10 dB)
  • 65 Hz to 20 kHz (±3 dB)
• Maximum SPL
  • 123 dB (Peak)
• Speaker Sensitivity
  • 96 dB
• Coverage Angle
  • 100° H x 60° V (Asymmetrical Horn Down)
• Protections
  • Infrasonic
• Crossover Frequency
  • 2000 Hz
• EQ & Filters
  • 3-Band EQ, High-Pass Filter
• Dynamic Processing
  • Compression, Limiter
• Digital Signal Processing
  • 24-Bit DSP
• Maximum Sampling Rate
  • 48 kHz / 24-Bit
• Audio I/O
  • 1x Combo XLR-1/4" TRS Line/Mic Input
  • 1x 1/8" / 3.5 mm TRS Aux Input
  • 1x XLR 3-Pin Line Thru/Output
• Wireless
  • Bluetooth
• AC Input Power
  • 100 to 120 VAC, 50 / 60 Hz
• AC Power I/O
  • 1x IEC Input
• Power Consumption
  • 100 W
• Color
  • Black
• Mounting
  • Stand Mount
    • 1 x Pole Socket - Unspecified Size (Bottom)
  • Suspension Points
    • 4 x M8 Fly Point (Top, Bottom)
    • 8 x M8 Fly Point (Side, Top, Bottom)
• Handles
  • 1x Top
  • 1x Each Side
• Construction Material
  • Metal Grille, Plastic
• Dimensions
  • 20 x 12.6 x 11" / 50.8 x 32 x 27.9 cm
• Weight
  • 27 lb / 12.2 kg

In The Box

• Peavey PVXp 10 Bluetooth 10" 510W Powered Loudspeaker
• Power Cord
• Limited 1-Year Manufacturer Warranty (Speaker Components)
• Limited 2-Year Manufacturer Warranty (Speaker Enclosure)
