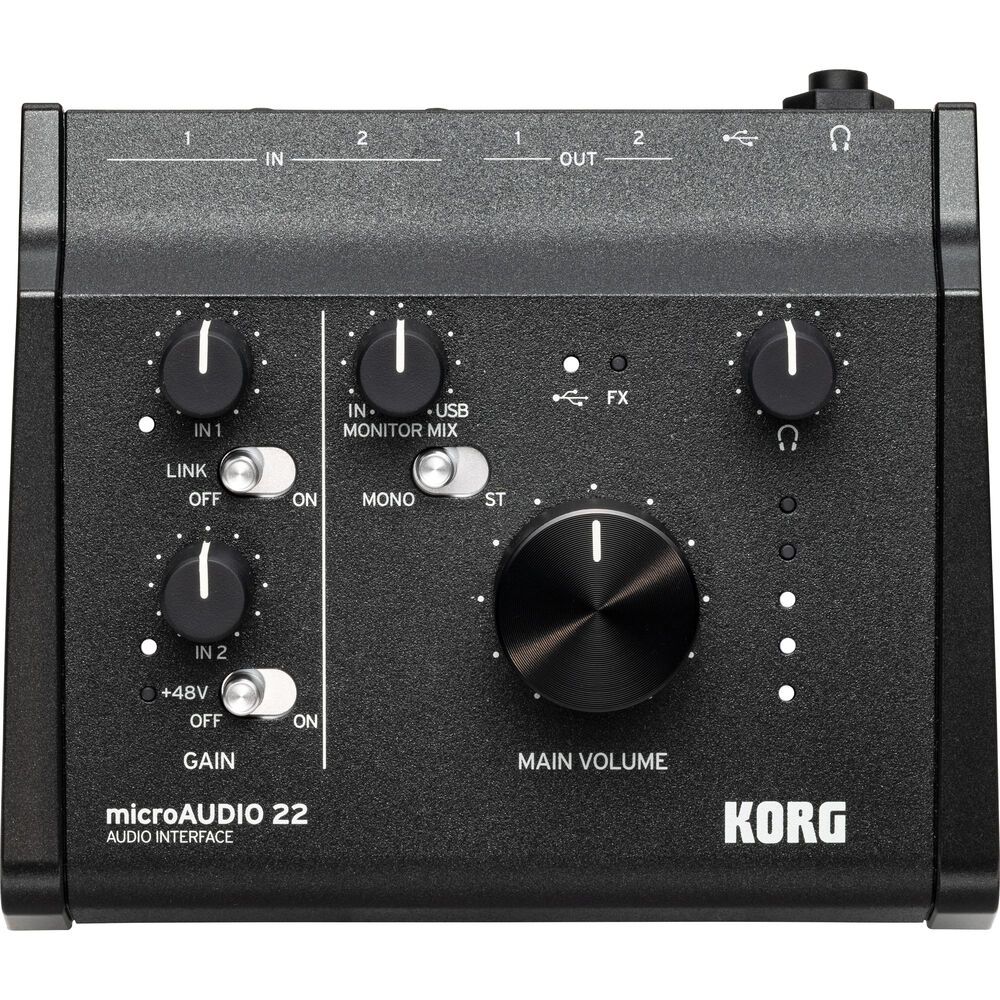

KORG MICROAUDIO 22 | 2x2 Usb-c Audio Interface

microAudio 22

2x2 USB-C Audio Interface

microAUDIO 22 is a compact 2x2 USB-C audio interface with up to 24-bit / 192 kHz sampling. Sporting two XLR-1/4" combo mic / line / Hi-Z inputs and balanced DC-coupled outputs, this interface ensures quality sound without excessive complexity.

Optimized for streaming applications, the microAUDIO 22 sports integrated loopback and zero-latency direct monitoring capabilities. The headphone output is assignable, allowing you to send whatever audio you want to the headphones. Switched functions include 48V phantom power, a Stereo Link function for controlling both input channels with one knob, and a mono or stereo mix selection switch. The interface can be powered by USB bus power or a USB power adapter, supporting mobile use on the go (power adapter and USB-C cable sold separately). USB-C also enables easy use with mobile devices, such as smartphones and tablets. The microAUDIO 22 includes a Korg software bundle, iZotope Ozone Elements, Ableton Live Lite, and the Filter Ark plug-in suite.

Intuitive, Hands-On Control

Each channel of the microAUDIO series features versatile Mic, Line, and Hi-Z inputs with 48V phantom power, plus assignable noise gate and either a compressor or limiter for smooth, musical gain with minimal noise. These processors can be applied not only to input signals, but also to any audio played back from a connected computer.

Front-panel knobs provide direct access to essential functions, and zero-latency direct monitoring ensures immediate feedback during recording or live performance.The headphone output can be assigned independently of the main outputs, allowing you to route a click track exclusively to the headphones or monitor cue signals when connected to DJ applications.

Creative Workflow with Stereo Link

The Stereo Link function allows both channels to be controlled simultaneously with a single knob, making it ideal for stereo synthesizers and other paired sources. This workflow keeps the technical side simple, so you can stay focused on creating.

Ready for Streaming and Mobile Creation

 Built-in loopback mode sends computer audio directly into your livestream or DAW without complicated routing. This is ideal for streaming, sampling, or capturing content on the fly. With USB-C connectivity, microAUDIO works seamlessly with smartphones and tablets, making it easy to create or stream from anywhere. Whether recording at home, performing onstage, or streaming online, the microAUDIO series adapts to your workflow and delivers consistent, professional sound.

Filter Ark

Bundled exclusively with microAUDIO, Filter Ark is Korg’s next-generation filter plug-in for DAW-based production. It faithfully reproduces legendary analog filters from the MS-20, Polysix, miniKORG 700S, and ARP Odyssey, while introducing new models such as physically modeled resonators and vowel-based filters.

With up to four filters routable in series, parallel, or feedback configurations, plus morphable LFOs, sequencers, and macros for advanced modulation, Filter Ark turns filtering into a creative instrument. Scale quantization and performance-ready presets ensure every movement is musical, unlocking expressive sound design far beyond traditional filtering.

Software Bundle for Instant Creation

In addition to Filter Ark, microAUDIO includes a complete software suite with instruments and production tools such as Ableton Live Lite, Native Instruments Komplete Select, and iZotope Ozone Elements. This covers everything from composition and recording to mixing and mastering.

Specifications

• Channels of I/O
  • 2 Inputs / 2 Outputs
• Maximum Sampling Rate
  • 192 kHz / 24-Bit
• Number of Microphone Inputs
  • 2
• Input Level Adjustment
  • Knob
• Analog Audio I/O
  • 2x Combo XLR-1/4" TRS Balanced/Unbalanced Mic/Line/Hi-Z Input
  • 1x 1/4" TRS Headphone Output
  • 2x 1/4" TRS Balanced Main Output
• Phantom Power
  • 48 V, Selectable On/Off (Applied to All Inputs)
• Host Connection
  • USB-C
• Sample Rates
  • Up to 192 kHz
• Bit Depths
  • 24-Bit
• OS Compatibility
  • Computer: macOS / Windows
  • Mobile: Android/iOS
• Mobile Device Compatibility
  • iPad
  • Android Smartphone
  • iPhone
• Power Requirements
  • USB Bus Power, USB Power Adapter (Not Included)
• Dimensions
  • 5.9 x 5 x 2.8" / 15 x 12.8 x 7 cm
• Weight
  • 14.4 oz / 407.0 g

In The Box

• Korg microAudio 22 2x2 USB-C Audio Interface
• Limited 3-Year Manufacturer Warranty
