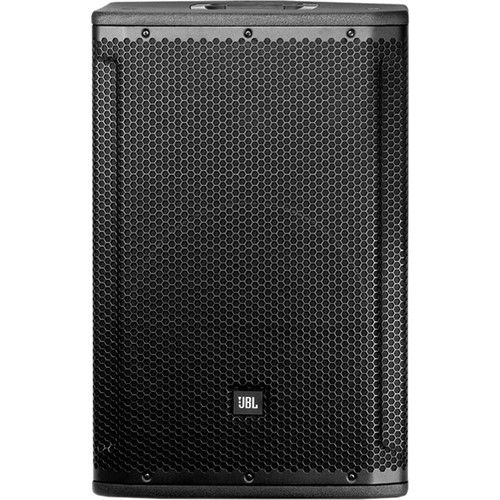

JBL SRX812 | 2-way Full Range Passive Speaker With 15-inch Woofer

SRX812

12" Two-Way Bass Reflex Passive Speaker

The JBL Professional SRX812 - 12" Two-Way Bass Reflex Passive System is designed for use as a light-duty main PA, monitor, or rear or side fill. Featuring M10 suspension points and feet for both floor-standing and monitor use, the speaker is suitable for musicians, bands, and DJs, concert use, public speaking, or installations such as performance venues, corporate spaces, educational facilities or houses of worship. Tunings and presets are available for Crown ITech HD and XTI 2 amps as well as the dbx VENU360 signal processor.

Transducer Technology

Includes JBL's patented Differential Drive technology using ferrite drivers with 3" voice coils

Features

• JBL 12" Woofer
• Tunings for Crown Amps and dbx Venu360
• 3200 W Peak, 1600 W Program Power Handling
• 57 Hz to 20 kHz Frequency Response
• 135 dB Maximum SPL
• Ergonomic Handles
• M10 Suspension Points
• Fully Supported in Audio Architect
• 90 x 50 Coverage Pattern
• Amplification options: Passive/Bi-Amp

Specifications

• Configuration
  • Passive 2-Way
• Enclosure Type
  • Bass-Reflex Loudspeaker
• Total Power Capacity
  • 3200 W Peak 1600 W Program 800 W RMS
• System Impedance
  • 8 Ohms
• HF Driver
  • 1x Compression Driver
• LF Driver
  • 1x 12" / 30.5 cm Woofer
• Frequency Response
  • 41 Hz to 20 kHz -10 dB
  • 57 Hz to 20 kHz -3 dB
• Maximum SPL
  • 135 dB
• Speaker Sensitivity
  • 95 dB
• Audio I/O
  • 1x speakON NL4 Input
  • 1x speakON NL4 Thru/Output
• Crossover
  • 1.9 kHz
• Handles
  • 3
• Construction Material
  • Perforated Metal Grille, Plywood
• Dimensions
  • 16.9 x 16.3 x 25.1" / 429 x 415 x 638 mm
• Weight
  • 55 lb / 24.9 kg

In The Box

• JBL SRX812 - 12" Two-Way Bass Reflex Passive Speaker
• Limited 5-Year Manufacturer Warranty
