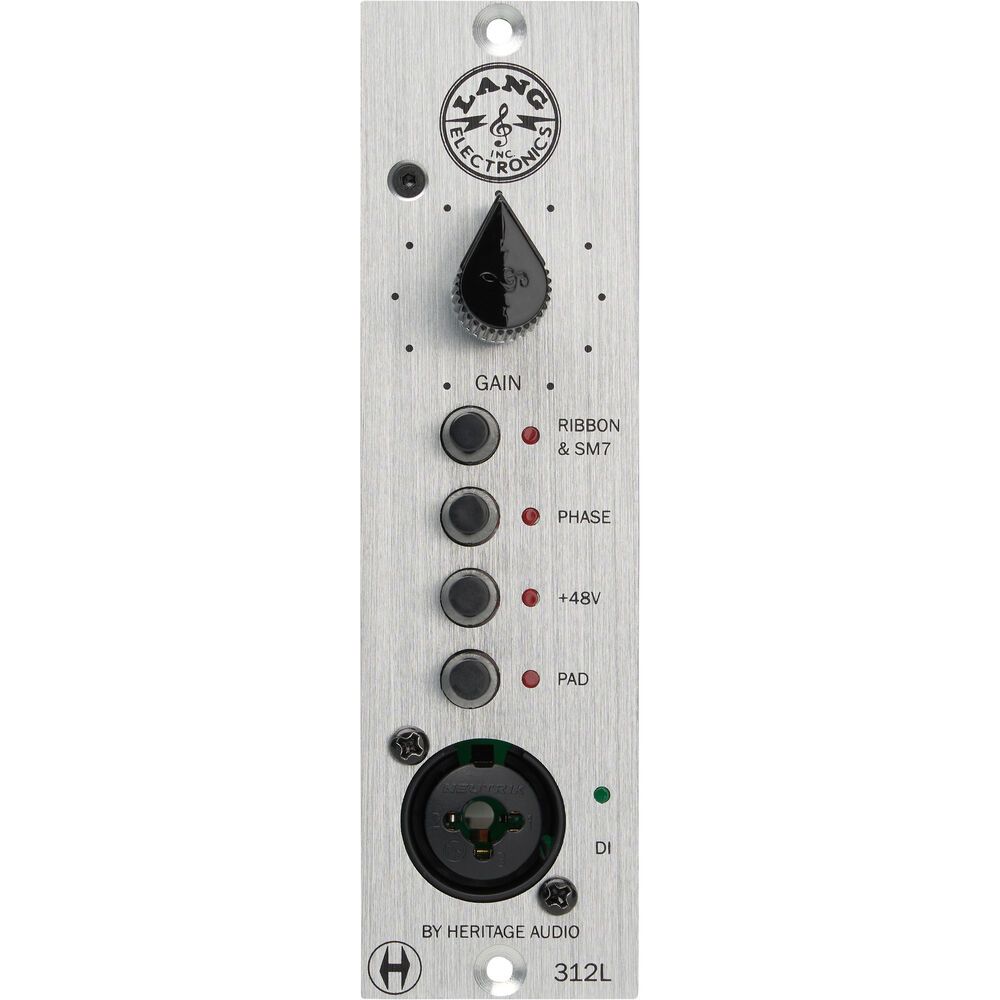

HERITAGE AUDIO LANG-312L | 500 Series | New York Style High-gain Preamp With Lifter

LANG 312L

500-Series NY Style Preamp with Built-In Lifter

Inject some classic, vintage New York City mojo into your recordings with the Heritage Audio LANG 312L, a 500-Series mic preamp with an integrated lifter that provides the in-your-face NY-style sound with super-fast transients that has been proven legendary for drums and guitar.

This preamp sports a gain control (15 to 90 dB) and an integrated lifter that supplies an additional +25 dB of gain, great for gain hungry mics such as ribbons and the SM7. Also included are switches for Phase, +48V phantom power, and a -20 dB pad. The combo XLR-1/4" input provides a balanced XLR input for the microphone and a 1/4" TS instrument DI input.

Note: This is a 500-Series module that requires a 500-Series rack enclosure (sold separately) to provide power and analog input and output. The module will not operate without an enclosure.

• Super fast transients
• In-your-face NY-style preamp that has proven legendary for drums and guitars.
• Unique Ribbon and SM7 built-in lifter that pushes the gain +25 dB and accomodates the signal for gain hungry mics.
• Remarkable dynamic range
• Ultralow noise floor. EIN -130 dBu.

Classic New York City Vibe

Bring all that energy and excitement that has made New York City the capital of the world into your recordings.

With the custom-made transformer-balanced inputs and outputs (LANG and CineMag) you can be sure that a thick, solid, and professional signal will be produced to ensure all your broadcasting and recording needs are addressed.

HA-880 Op-Amp

The newly designed HA-880 op-amp that sits at the core of the LANG 312L is footprint-compatible and switchable with any other classic op-amp available.

Specifications

• Microphone Input Impedance
  • 1200 Ohms , 10 Kilohms with Lifter Engaged, Great for Low Gain Ribbon Mics. Input is Transformer Balanced and Floating
• Line Input Impedance
  • 10 Kilohms Bridging, Transformer Balanced and Floating
• DI Input Impedance
  • Greater than 2 Megaohms, Unbalanced
• Output Impedance
  • Less than 75 Ohms, Transformer Balanced and Floating, to Drive a Load of 600 Ohms (Factory Unterminated)
• Maximum Output
  • Greater than +30 dBu into 600 Ohms
• THD
  • Less than 0.005 % at 1 kHz, Less than 0.01 % at 100 Hz
• Frequency Response
  • 20 Hz (+0.3 dB) to 20 kHz (-0.2 dB)
• Maximum Gain
  • 90 dB
• Noise
  • Less than -130 dBu EIN Unweighted
• Power Consumption
  • 50 mA per Rail ±16 VDC
• Audio I/O
  • 1x Combo XLR-1/4" 3-Pin Hi-Z/Instrument/Line/Mic Input
• Operating Current
  • 50 mA
• Color
  • Silver

In The Box

• Heritage Audio LANG 312L 500-Series NY Style Preamp with Built-In Lifter
• Limited 2-Year Manufacturer Warranty
