HERITAGE AUDIO HA73EQ | Single Channel Full Rack Mic Preamp With EQ

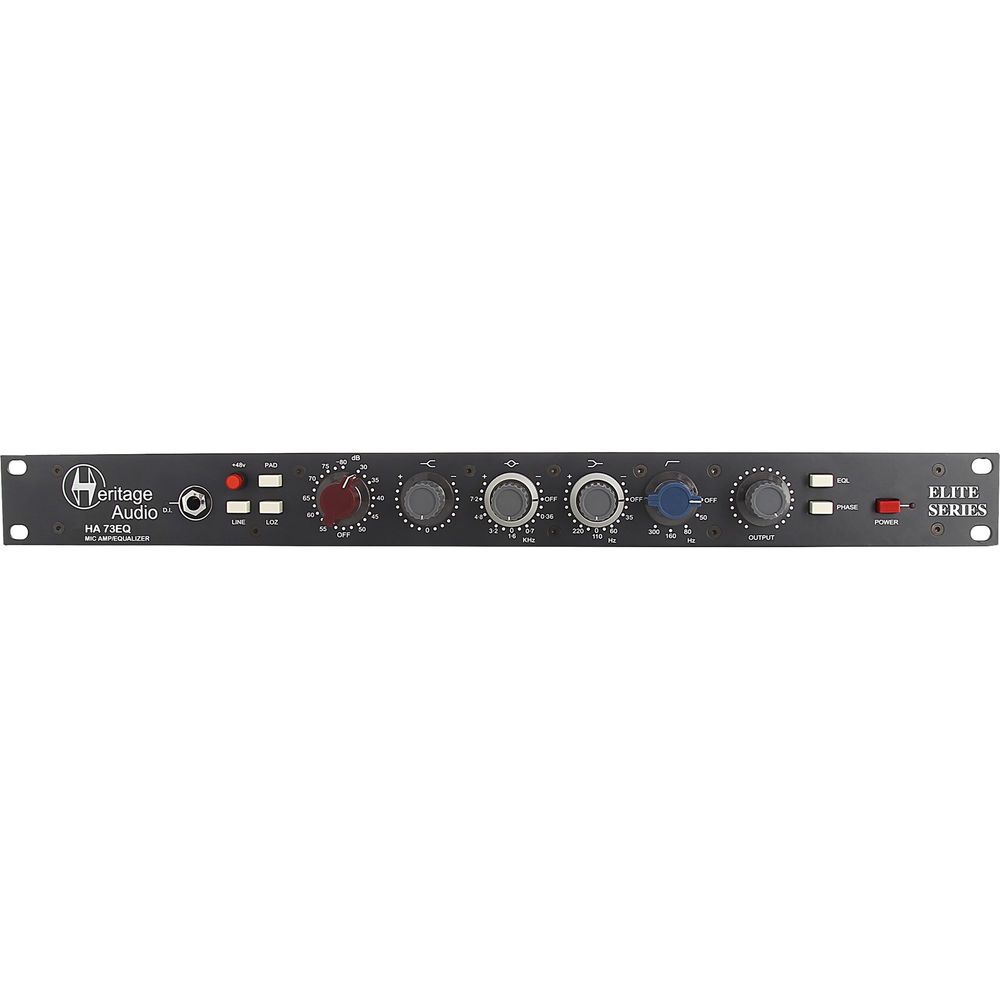

HA 73EQ

Mono Elite Series Microphone Preamplifier with EQ

The HA 73EQ is a 1 RU mono Elite Series microphone preamplifier with EQ designed to provide the sound of classic Neve 1073 preamps and equalizers for recording engineers, musicians, and vocalists in mobile-recording rigs and home, project, and commercial studios. It features 80 dB of gain via a three-stage discrete Class-A preamp, which utilizes stepped input gain and a -20 dB pad. Hand-wound Carnhill transformers impart color and character to the output.

Connect a mic or line input via balanced XLR jacks or hook up a guitar, bass, or keyboard to the integrated Hi-Z, JFET-based DI via the front-panel 1/4" jack. Sculpt and sweeten your tone via the discrete 3-band EQ, which includes semi-parametric low and mid bands and a 12 kHz high-shelf band. Care has been taken to incorporate period-correct inductors and frequency options. Phantom power and input impedance are selectable, the output level is continuously variable, and a high-pass filter with four selectable frequencies allows you to remove unwanted low end.

The HA 73EQ ships with an external universal power supply for worry-free use anywhere in the world.

• Single-channel microphone preamplifier and 3-band EQ in a 1 RU enclosure
• Three-stage discrete Class-A preamp with 80 dB of gain
• Hand-wound Carnhill transformers
• WIMA 5% capacitors and Vinkor-type pot core inductors
• Stepped input gain for easy recall
• Variable output level
• Shelving high-band EQ at 12 kHz
• Peaking mid-band EQ with six selectable frequencies—360 Hz, 700 Hz, 1.6 kHz, 3.2 kHz, 4.8 kHz, 7.2 kHz
• Shelving low-band EQ with four selectable frequencies—35 Hz, 60 Hz, 110 Hz, 220 Hz
• High-pass filter with four selectable frequencies—50 Hz, 80 Hz, 160 Hz, or 300 Hz
• Switchable -20 dB pad, polarity, and selectable impedance of 300 Ohms or 1200 Ohms
• Selectable phantom power, input source, and EQ on/off
• Integrated Hi-Z DI with front-panel 1/4" TS input for direct connection of instruments
• External universal power supply works regardless of region

In The Box

• Heritage Audio HA 73EQ Mono Elite Series Microphone Preamplifier with EQ
• External Power Supply
• Limited 1-Year Manufacturer Warranty
