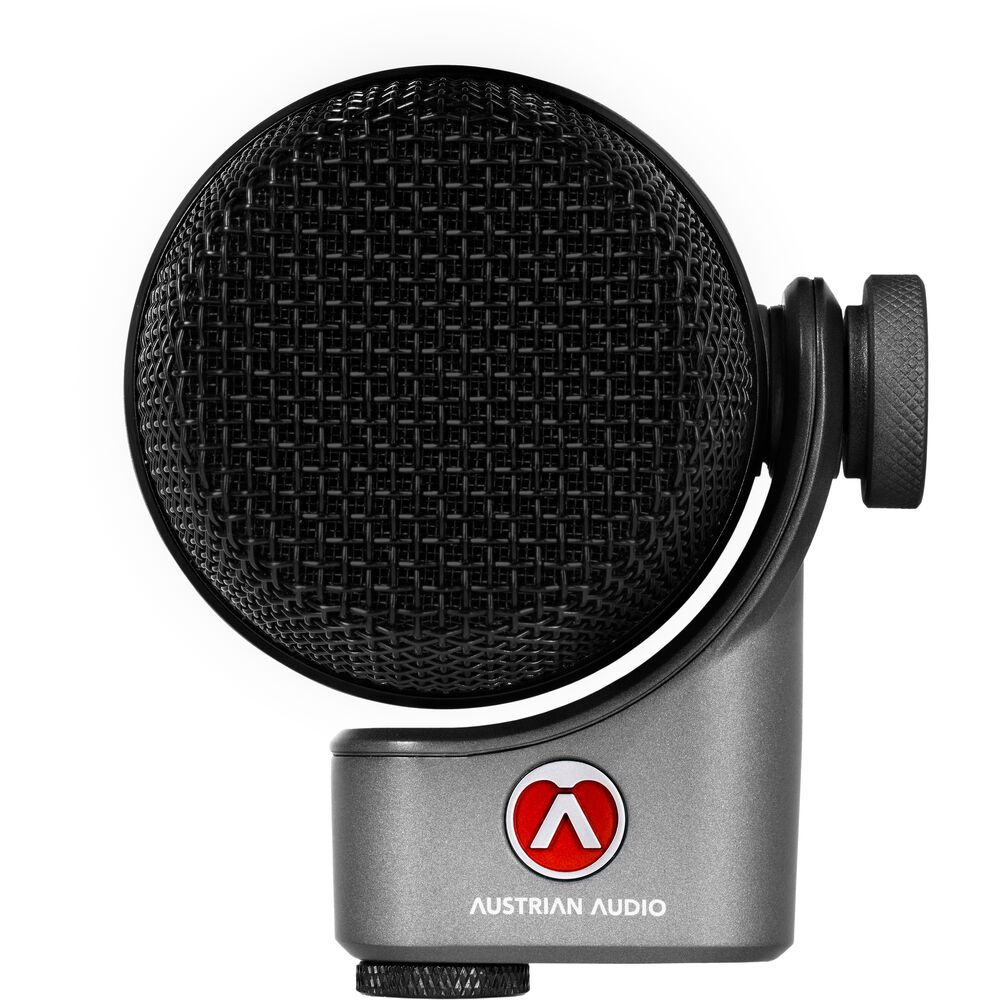

AUSTRIAN AUDIO OC-B6 | Large-diaphragm Condenser Bass Drum Microphone

OC-B6

Cardioid Large-Diaphragm Bass Drum Condenser Microphone

Experience the pure, uncolored kick tone of the world's first large-diaphragm condenser mic designed specifically for kick drums with the Austrian Audio OC-B6. Sporting a 1" true condenser capsule, which has been specially tuned for handling extremely high SPLs up to 170 dB, the OC-B6 delivers consistent results from any mic position, whether inside or outside the shell.

A fixed 25 Hz subsonic filter helps to eliminate unwanted rumble, allowing you to get a pure bass drum tone that does not need any pre-EQ processing. The 220° swivel head allows for perfect, effortless positioning. The mic is compact and robust and features an integrated mic thread—no mic clip required. Each OC-B6 is handcrafted in Vienna, Austria.

CKR6-B Capsule

Integral to the performance of the OC-B6 is the CKR6-B capsule, which has been specially designed to withstand the high SPLs of a kick drum whilst delivering a pure, uncolored kick tone.

• 1" large-diaphragm true condenser capsule, the first in the world dedicated to kick drum recording
• Edge contacted
• Specially tuned for extreme SPLs via an increased distance between diaphragm and backplate
• Patented ceramic isolator
• Handmade in Vienna

Flexible Positioning with Consistent Results

The new OC-B6 Bass Drum Microphone delivers excellent results from all standard kick drum mic positions. Unlike many other kick mics which use dynamic capsules that suffer from proximity effect, the OC-B6 is designed to perform consistently whether it’s placed outside the drum, right at the port, or inside the shell.

This flexibility allows engineers to adapt quickly to different styles, stages, and recording situations without switching microphones. With the OC-B6, you have one mic that covers every approach to kick-drum miking, making it a reliable and versatile solution for both live and studio environments.

Specifications

• Type
  • Large Diaphragm
• Polar Pattern
  • Cardioid
• Element Type
  • Condenser
• Sound Field
  • Mono
• Diaphragm
  • 1" / 25.4 mm
• Orientation
  • Side Address
• Filter
  • Low-Cut Filter: 25 Hz
• Circuitry
  • Solid-State
• Frequency Response
  • 18 Hz to 20 kHz
• Maximum SPL
  • 170 dB
• Sensitivity
  • 0.8 mV/Pa
• Dynamic Range
  • 137 dB
• Equivalent Noise Level
  • 33 dB (A-Weighted)
• Analog Output
  • 1x XLR 3-Pin Male (Locking)
• Power Sources
  • Phantom Power
• Operating Voltage
  • 48 V
• Color
  • Gray
• Mounting Thread Size
  • 5/8"-27 Female
• Dimensions
  • ø: 3.6 x W: 3.2 x L: 2.2" / ø: 9.2 x W: 8.2 x L: 5.7 cm
• Weight
  • 9.9 oz / 280 g

In The Box

• Austrian Audio OC-B6 Cardioid Large-Diaphragm Bass Drum Condenser Microphone
• Limited 2-Year Manufacturer Warranty
