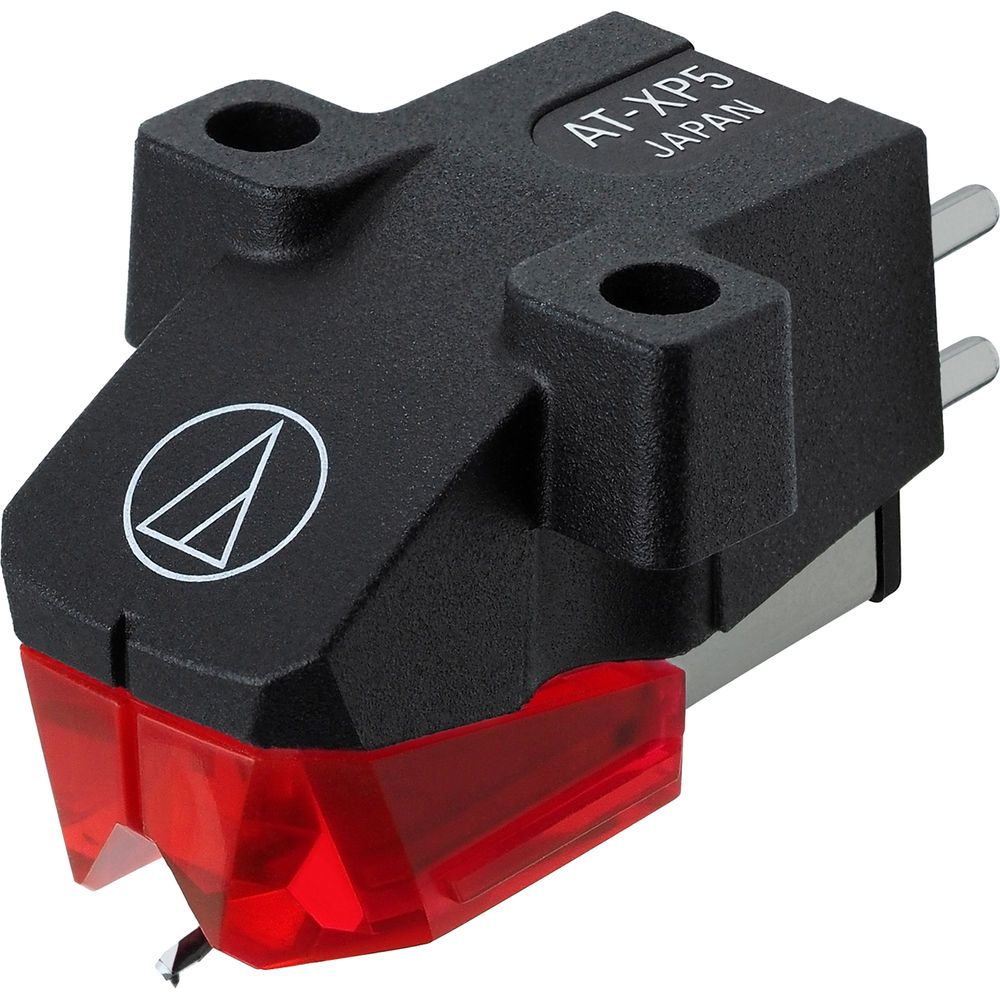

AUDIO-TECHNICA AT-XP5 | DJ Cartridge

AT-XP5

DJ Cartridge

The AT-XP5 is a specially designed for the needs of professional DJs and features a highly-rigid polyphenylene sulfide (PPS)/glass fiber body with a tracking force of 2 to 4 grams. The AT-XP5 offers an output level of 5.5mV, while the 0.3 x 0.7 elliptical bonded stylus tracks the record groove with high accuracy for high-quality audio reproduction. Additionally, the cartridge is specifically designed to provide maximum visibility of the stylus tip.

• 0.3 x 0.7 mil elliptical bonded stylus tip
• Highly-rigid polyphenylene sulfide (PPS) / glass fiber body
• 5.5mV high-level output
• Tracking force of 2.0 to 4.0 grams (3.0 grams standard)
• Durable carbon fiber-reinforced ABS cantilever and nylon wire suspension ensure precise tracking
• Design offers maximum visibility of the stylus tip
• Great tracking and channel separation for high-fidelity sound

Specifications

• Frequency Response
  • 20 Hz to 18 kHz
• Channel Separation
  • 20 dB (at 1 kHz)
• Tracking Force
  • 2.0 - 4.0 g (3.0 g standard)
• Stylus
  • Stylus Construction: Bonded round shank
  • Stylus Shape: 0.3 x 0.7 mil elliptical
• Recommended Load Impedance
  • 47 kOhms
• Output
  • 5.5 mV (1 kHz, 5 cm/sec.)
• Channel Balance
  • 2.0 dB (1 kHz)
• Stylus Cantilever
  • Carbon fiber reinforced ABS
• Mount
  • 0.5" / 12.7 mm
• Replacement Stylus
  • ATN-XP5
• Coil Resistance
  • Coil Impedance: 6.7 kOhms (1 kHz)
• DC Resistance
  • 990 Ohms
• Recommended Load Capacitance
  • 100 to 200 pF
• Coil Inductance (Le)
  • 1.0 h (1 kHz)
• Vertical Tracking Angle
  • 20°
• Dimensions
  • 0.7 x 0.7 x 1.1" / 17.2 x 17.8 x 28.3 mm
• Weight
  • 0.2 oz / 6.2 g

In The Box

• Audio-Technica AT-XP5 DJ Cartridge
• Limited 1-Year Warranty Against Defects and Workmanship
