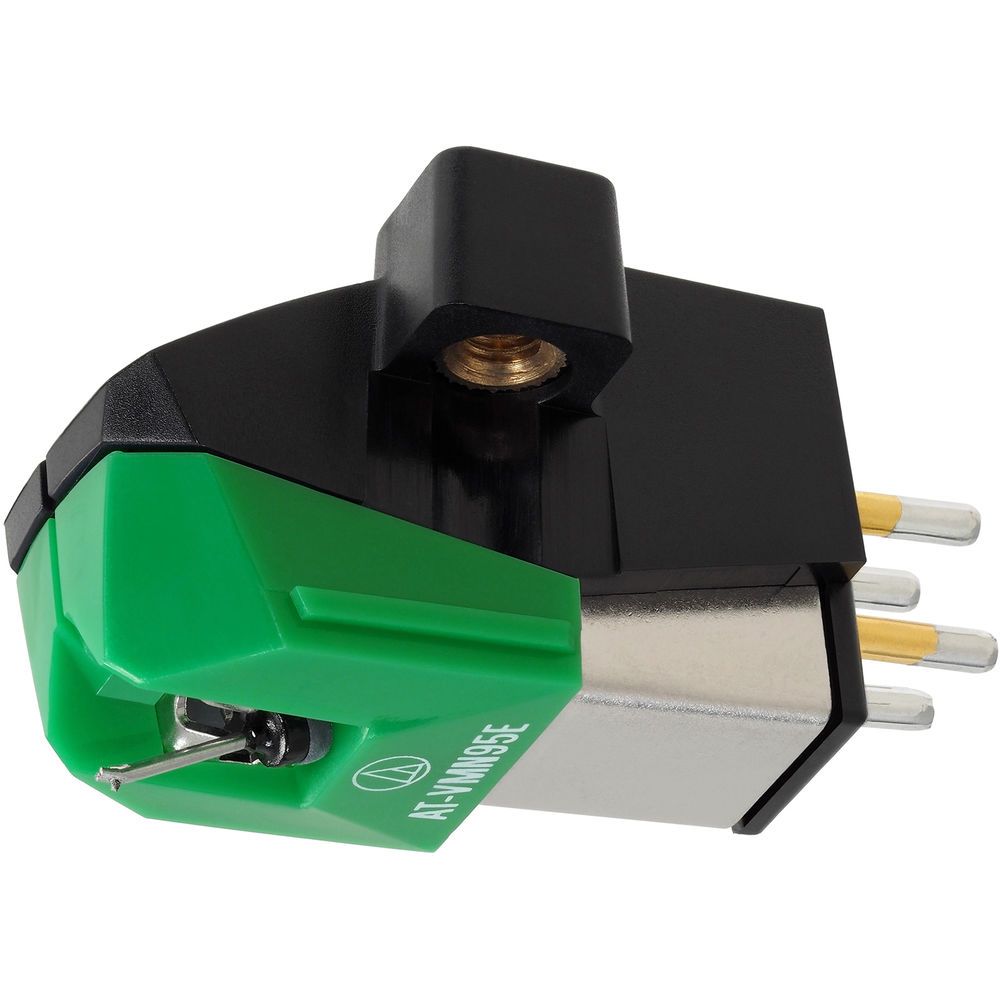

AUDIO-TECHNICA AT-VM95E | Dual Moving Magnet Cartridge | Eliptical Stylus

T-VM95E

Dual Moving Magnet Cartridge with Eliptical Stylus

The AT-VM95E Dual Moving Magnet Cartridge features a special coil design, which delivers a powerful output level (4.0 mV) with high channel separation and low distortion for remarkable tonal quality. The cartridge can be mounted to a standard 1/2" mount and features integrated threaded inserts, allowing it to be mounted with just two screws (no nuts required). All VM95 Series share the same body, allowing the stylus to be replaced with any of the six interchangeable AT-VMN95 replacement styli.

• VM95 Series dual magnet cartridge with 0.3 x 0.7 mil elliptical stylus
• Aluminum cantilever
• Specially wound coils increase output voltage
• Durable low-resonance polymer housing
• Threaded inserts in cartridge body enable cartridge to be mounted to headshell with just two screws – no nuts required
• Compatible with any AT-VMN95 replacement stylus

Specifications

• Frequency Response
  • 20 Hz to 22 kHz
• Channel Separation
  • 20 (dB at 1 kHz)
• Tracking Force
  • 1.8 to 2.2 g (2.0 g Standard)
• Recommended Load Impedance
  • 47 kOhms Output 4.0 mV (1 kHz, 5 cm/sec.)
• Channel Balance
  • 2.0 dB (1 kHz)
• Stylus Type
  • Eliptical Bonded Round Shank
• Stylus Cantilever
  • Aluminum Pipe
• Mount
  • 0.5" / 1.27 cm
• Replacement Stylus
  • AT-VMN95C
• Impedance
  • Coil Impedance: 3.3 kOhms (1 kHz)
• DC Resistance
  • 485 Ohms
• Load Capacitance
  • 100 to 200 pF
• Coil Inductance (Le)
  • 550 mH (1 kHz)
• Vertical Tracking Angle
  • 23°
• Dimensions
  • 0.7 x 0.7 x 1.1" / 17.2 x 18.9 x 28.3 mm
• Weight
  • 0.2 oz / 6.1 g

In The Box

• Audio-Technica AT-VM95E Dual Moving Magnet Cartridge
• Set of Mounting Hardware (4 x Screws and 2 x Washers)
• Limited 1-Year Manufacturer Warranty
