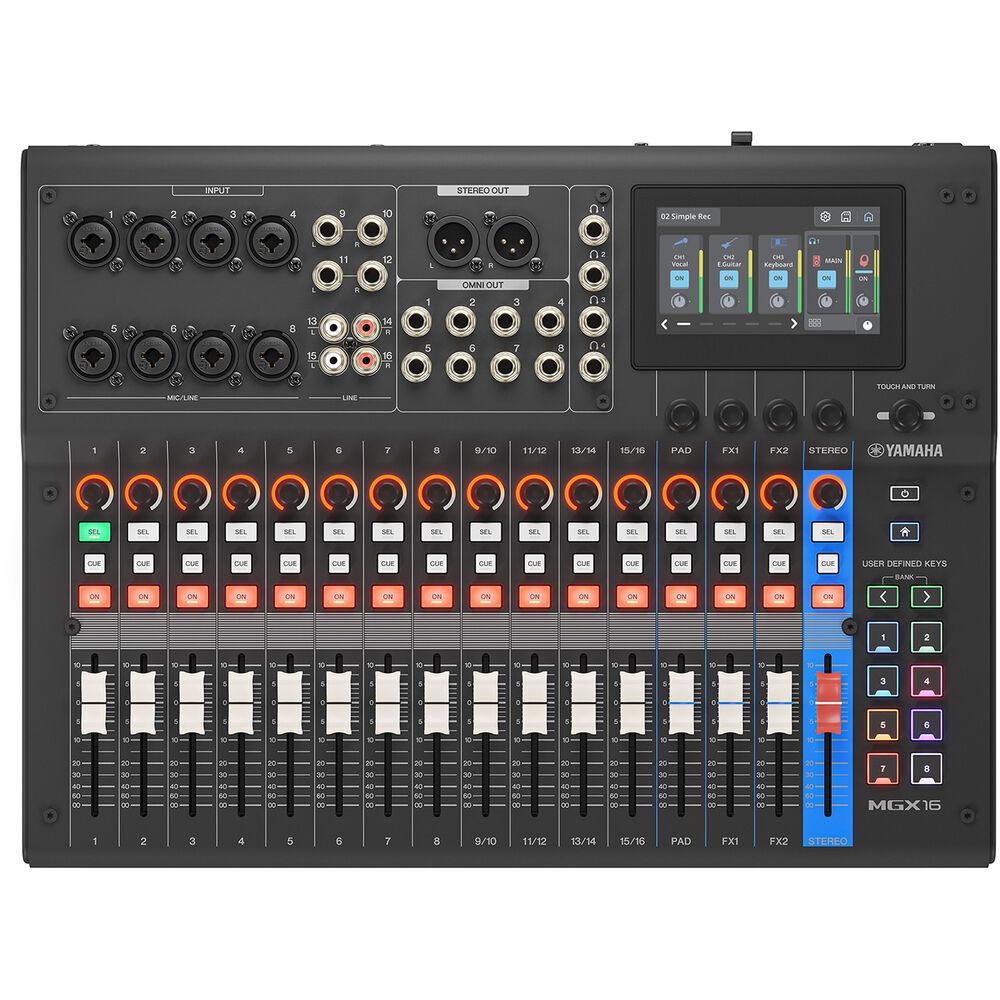

YAMAHA MGX16 B | 22-channel Digital Mixing Console W/ Audio Interface

MGX16V B

22-Channel Digital Mixing Console with Audio Interface - Black

MGX16 is a 22-channel digital mixing console that builds upon the success of the analog MG-Series analog mixers and creates the next evolution of hands-on digital mixing environments well suited for a versatile range of live and installed sound, podcast/live streaming, music production, and recording applications.

The MGX16 is designed to be operated quickly and intuitively through its touch-panel GUI and various physical controllers. In addition, a comprehensive selection of I/O options allows you to freely configure the system to suit any application. From live sound and installed sound systems—whether in halls, cafés, clubs, or houses of worship—to podcast streaming and professional recording, the MGX adapts seamlessly to a wide range of environments. And in every case, operators, artists, and audiences alike will be captivated by the quality of its sound and performance.

Versatility and Professional Sound

An audio mixer is expected to offer considerable versatility to accommodate a wide range of applications such as live sound, podcast, and live streaming as well as recording—while delivering audio quality that satisfies the audience, the musicians and performers on stage, and you, the one who supports and shapes the entire experience.

The MGX features carefully selected physical I/O and extensive mixing capacity that enables flexible sound creation. Onboard DSP effects further enhance audio processing power, delivering a refined, professional sound for any application.

All the Essentials

• The MGX16 is equipped with 8 premium-quality MGX mic preamps on Mic/Line combo inputs, along with 8 Line inputs, 2 XLR outs, 8 TRS OMNI outs, and 4 headphone ports, enabling smooth collaboration and versatile monitoring.

Power. Capability. Versatility.

• It also delivers extensive mixing capacity with 8 mono channels, 4 stereo channels, a dedicated Sound Pad, and 2 FX channels, supported by a bus architecture comprising 8 MIX buses, 2 FX buses, 1 CUE bus, and 1 STEREO bus.

Professional, True Sound

• By pursuing Yamaha’s “True Sound” philosophy and utilizing high-performance AD/DA converters, the MGX mic preamps achieve an impressive 86 dB gain range with ultralow distortion and a 125 dB dynamic range at stereo output. Every nuance of your vocal and instrumental performance will be captured and reproduced with stunning accuracy. This refined professional sound is guaranteed to satisfy not only discerning engineers, but also musicians, performers, and audiences alike.

Hone Your Vision

• MGX also offers creative tools like Gate, Compressor, EQ, Reverb, Amp Simulators, and Voice Changers, letting you shape your sound exactly as you imagine. And with clear, comfortable monitoring—on stage, in the studio, or streaming—every moment you capture will resonate with beauty.

Wherever You Go

• Despite offering a wide range of features, the MGX16 achieves an impressively low weight of just 10.4lb through meticulous engineering and careful material selection. Without compromising durability, its rugged build is more than ready to handle a variety of environments with confidence.

Flexible Power, Unrivaled Performance

In today’s world, traditional applications such as live or installed sound, podcasting and live streaming, and recording production continue to diversify and evolve. Hybrid live events that combine live performances with simultaneous streaming are becoming more common, as are applications that handle both audio and video signals. To meet this broad range of demands with greater flexibility, the MGX is designed not only as a versatile mixer, but also as a multifunctional hub, equipped with a powerful USB interface, Bluetooth audio connectivity, sound pads, microSD card recording/playback, all packed into a compact, portable body.

Optimized Integration

• By making full use of its flexible routing functions and dual MAIN/SUB USB ports, you can integrate a wide range of audio sources and devices into a setup that works exactly the way you want.
  • USB MAIN: 22-track recording / 18-track playback
  • USB SUB: 2-track recording / 2-track playback

Convenient Bluetooth Audio Input

• Bluetooth connectivity allows users to easily integrate wireless audio sources into your live performances, streaming, and studio sessions.

Effortless Style in Sound

• Equipped with eight customizable pads, you can easily add sound effects in real time to enhance your events, podcasts, and streaming. These pads also function as user-defined keys.

Maximize Your Multi-Track

• With the MGX series, you can record up to 16 tracks of audio and playback 2 tracks directly from a microSD card. From creating a reliable backup for mobile standalone recording sessions, to playing background music at a venue, you can deliver pro-quality sound anywhere.

Seamless Creative Control

The highly versatile MGX digital mixing console is equipped with professional-quality effects, flexible routing, and a wide range of other features that can all be operated fast and intuitively using its touchscreen GUI, comprehensive controllers, assistive functions that streamline workflow, and scene recall capability. The MGX provides an operating experience that keeps your creative workflow focused and free of interruption.

Fast, Intuitive Control - Dialed In

• In addition to the core mixer controller section with 16 60mm faders and send knobs, a feature-packed GUI on the intuitive touchscreen, four customizable knobs, and the TOUCH AND TURN knob let you enjoy fast, precise, and effortless control—right at your fingertips.

Intelligent Tools for Exceptional Results

• Smart Gain optimizes input volumes, Clip Safe prevents sudden distortion, and Total FX gives you tools like the Ducker—automatically prioritizing important sounds—and a Multi-Band Compressor to conveniently enhance your overall audio quality, and even a Delay for lip-sync adjustment. With these features, the MGX keeps your workflow smooth and your sound consistently professional.

Change Fast, Stay Ready

• With a Scene Recall function, you can switch between different setups or applications instantly. Pair it with Simple Mode for extra support, so you can stay focused on what matters most: your creativity.

Your Workflow, Your Way

• The eight pads and four knobs located at the front right of the MGX also function as customizable user-defined keys. Their assignments can be managed across four banks, allowing you to configure them according to your needs—for example, triggering sound pads, scene recall, or playing back a test tone from the built-in oscillator for venue sound checks.

Complete, Connected, Creative

The MGX is not only a versatile audio mixer, but also a fully functioning recording studio and streaming station that meets the needs of a wide range of applications, including live sound reinforcement, streaming, and audio production. When used together with Steinberg’s software mixer MixKey V1.0, users can easily manage all audio signals on their PC. In addition, seamless integration with Yamaha’s USB controller CC1 or Elgato’s Stream Deck controller will significantly enhance workflow and system operation.

With Yamaha’s ever-expanding lineup of compatible products and continuous updates, a system built around an MGX console will continue to evolve with you as you refine your skills and broaden your creative horizons—whether as an engineer, producer, artist, streamer, or any combination of the four.

All You Need to Elevate Your Game

• A complete suite of Steinberg music production software, together with the free software mixer MixKey, provide support to everyone from beginners just starting out to experienced engineers and creators looking to branch out into new production styles or content creation. With Yamaha’s lineup of speakers, microphones, headphones, and more, you can build a system that meets your ever-evolving demands.

Seamless Controller Integration for a Custom Workflow

• Seamless integration with our collaborative partners—Elgato and OBS Studio—enhances the smoothness and reliability of all controls, including expanded MGX remote operation via Elgato's Stream Deck series. This allows you to build a workflow that’s truly your own and focus entirely on music production, streaming, video content creation, and performance.

Specifications

• Max I/O Capacity
  • 16x Input / 14x Output
• Number of Analog Input Channels
  • 16 (8 Mono/ 4 Stereo
• Number of Mic Preamps
  • 16
• Number of Analog Output Channels
  • 14
• Mix Routing
  • 1x Main LRC
  • 8x Bus
  • 2x Mono Matrix
  • 1x Stereo FX Return
• Display
  • 4.3" LCD Touchscreen
• Faders & Level Adjustment
  • 16x 2.4" / 60mm Motorized Channel Fader
  • 16 FX Knob
  • 5 Knob
  • 1 Knob (Touch Sensitive)
• Meters
  • 16x LED
• Gain/Trim Range
  • Up to +86 dB
• Dynamic Processing
  • Compressor, Multi-Band Compressor, Gate
• Graphic EQ
  • Yes
• Solo/Mute
  • Solo, Solo-in-Place/AFL, Mute, PFL per Input Channel
• Built-In Effects
  • 11x  Effect
• Sample Rates
  • 44.1 kHz
  • 96 kHz
• Frequency Response
  • 20 Hz to 20 kHz (at 1kHz)
• Analog Dynamic Range
  • 125 dB at Min Gain
  • 115 dB at Min Gain
• Headphone Output Power
  • 100mW per Channel into 40 Ohms (Max)
• THD
  • Mic Input: < 0.002% at Min Gain (+4 dBu)
• Signal Generator
  • Yes
• Analog Inputs
  • 8x Combo XLR-1/4" TRS Balanced/Unbalanced Mic/Line Input
  • 4x 1/4" TRS Balanced/Unbalanced Stereo Line Input
  • 2x RCA Coaxial Stereo Line Input
• Analog Outputs
  • 2x XLR 3-Pin Balanced Stereo Main Output
  • 8x 1/4" TRS Balanced/Unbalanced Stereo Output
  • 4x 1/4" TRS Unbalanced Stereo Headphone Output
• Phantom Power
  • +48 V
• USB I/O
  • 1x USB-C (Host Connection, Multitrack Record)
  • 1x USB-C (2-Track Record, Audio Playback,Control, External Memory)
• USB I/O Capacity
  • 18x Input/ 18x Output
• Wireless
  • Bluetooth 5.0
• Max Multitrack Recording
  • 18 Tracks
• Media Support
  • SDHC, USB Drive
• File Format Support
  • Playback: MP3, WAV
  • Record: MP3, WAV
• Max Media Storage Capacity
  • 1 GB
• OS Compatibility
  • macOS 15 or Later / Windows 11 or Later
• RAM Requirements
  • 4 GB
• Input Power
  • 16 VDC at 2.4 A
  • 100 to 240 VAC, 50/60Hz
• Rack Mountable
  • Yes
• Operating Conditions
  • 32 to 104°F / 0 to 40°C
• Dimensions
  • 16.5 x 12.5 x 3.8" / 419.1x 317.5 x 96.5 mm
• Weight
  • 10.4 lb / 4.7 kg

in The Box

• Yamaha MGX16 B 22-Channel Digital Mixing Console with Audio Interface (Black)
• AC Power Adaptor
• Start Guide
• Safety Guide
• Steinberg Software License Card (Cubase AI, WaveLab Cast LE, Basic FX Suite, Steinberg Plus)
• Limited 1-Year Manufacturer Warranty
