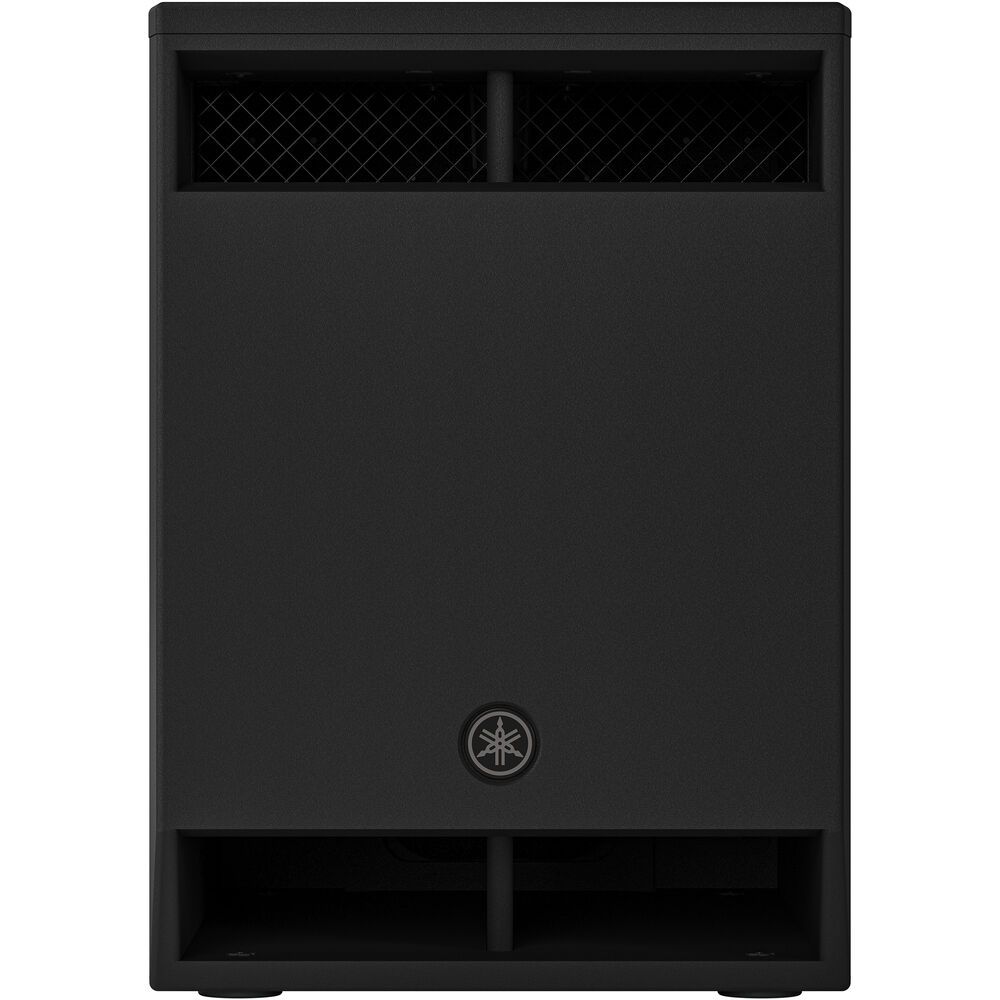

YAMAHA DXS12 Mk3 | 12-inch 2500w Powered Subwoofer

DXS12 Mk3

12" 2500W Active Subwoofer

From an immersive, frenzied set that puts a DJ on the map, to a killer live band showcase with career-defining implications—countless variables, and often pure luck, can factor in to pulling off a memorable, even life-altering performance. Some you can control, others you cannot, but the new DXSmk3 subwoofer takes luck out of the equation when it comes to your bass sound, offering significant improvements in performance, flexibility, and reliability from its renowned predecessor. From the functional, lightweight, yet highly durable cabinet design, to flexible, high-performance DSP features with crucial real-world applications, the DXSmk3 will reliably deliver your bass with serious power and startling precision, ensuring that you’ll never have to question if your bottom end performance can rise to the occasion when you need it most.

The DXS12 Mk3 is the 3rd-generation version of Yamaha's active subwoofer, bringing with it a wooden bandpass cabinet, a newly developed transducer, and a potent 2500W peak Class-D amp. With onboard DSP control via the intuitive color LCD screen, setup and fine-tuning are a snap.

You can store up to eight user presets for the DSP controls, which include functions like Auto Preset, EQ, feedback suppression, and more. When your speaker is hard to reach, you can control and customize everything wirelessly via the D-Remote app. Wireless control also means wireless Bluetooth audio streaming, allowing you to easily play back audio to your loudspeaker from any Bluetooth-equipped smart device.

• Newly developed, highly efficient 2500W Class D high-power amplifier module
• 96kHz internal DSP processor deliver high output performance with low latency
• Custom designed, Yamaha proprietary long-excursion & high-durability speaker units
• Series enclosures adopt an ideal bandpass structure, significantly reducing noise at high outputs
• Highly visible, user-friendly LCD panel & encoder allows for easy parameter control (presets, PEQ, delay, routing)
• D-XSUB bass processing with 2 modes available (NORMAL and XTENDED LF)
• Cardioid mode on all models to allow for effective bass control when using 2 or more DSX**MK3 units
• D-REMOTE control app allows control over bluetooth of all parameters (level, EQ, delay, crossover, etc)
• Dual pole socket compatible with both 35mm diameter and M20 threaded speaker poles
• Optional accessories include SPW-1 wheel kit and SPCVR-DXS**3 speaker covers

Onboard LCD Screen

The intuitive onboard color LCD screen provides direct access to DSP controls—including crossover, EQ, delay, D-Mode app control, feedback suppression, and ducker functions—enabling faster setup, precise on-the-fly room tuning (from the screen or app, without menu diving), and storage of up to eight user presets for consistent, repeatable results across a wide range of professional applications.

D-Remote App Control

D-Remote enables fast, intuitive system control from anywhere in the venue. Manage up to ten speakers, group systems, switch Auto EQ and Auto HPF presets, and control built-in feedback suppression, ducker, and Bluetooth audio streaming. Quickly tune the room, make real-time adjustments on the fly, or fine-tune flown or hard-to-reach speakers without ladders, extra crew, or interrupting the performance.

Bluetooth Audio Streaming

High-quality, road-tested Bluetooth audio streaming delivers stable, reliable playback for music, accompaniment, or streaming sources. Seamlessly connect to mobile devices for wireless access to your music library, reducing cable clutter, and enabling faster, more efficient setup for DJs, presenters, and event professionals.

New 2500W Class-D Amplifier

Designed for demanding professionals, the new 2500W Class-D amplifier delivers increased headroom, improved efficiency, and authoritative output with exceptional clarity—from detailed speech to high-SPL, full-range performance. With nearly 500W more power than the mk2 series, this subwoofer ensures you have ample power for most applications.

Specifications

• Speaker Type
  • Active Subwoofer
• Enclosure Type
  • Bandpass
• Total Output Power
  • 2500 W
• Amplifier Class
  • Class-D
• LF Driver
  • 1x 12" / 30.5 cm Woofer
• EQ & Filters
  • EQ (via Built-In Control)
  • EQ (via Software Control)
• Alignment Delay
  • Yes: Delay Time/Distance is Unspecified
• Digital Signal Processing
  • EQ, User Settings, Venue Settings
• Audio I/O
  • 2x XLR 3-Pin Input
  • 2x XLR 3-Pin Thru
• Wireless
  • Bluetooth *Built-In
• Mobile App Compatible
  • Yes: Android & iOS
  • App Name: D-Remote
  • Functionality: Adjust Settings, Remote Control
• AC Power I/O
  • 1x IEC Input
• Color
  • Black
• Construction Material
  • Wood
• Dimensions
  • 28 to 27.2 x 21.7" / 71.1 to 69.1 x 55.1 cm
• Weight
  • 99.2 lb / 45 kg

In The Box

• Yamaha DXS12 Mk3 12" 2500W Active Subwoofer
• Power Cord
• Limited 7-Year Manufacturer Warranty
