WAVES SGEXTC | Waves Extreme-c Soundgrid Server

SGEXTC

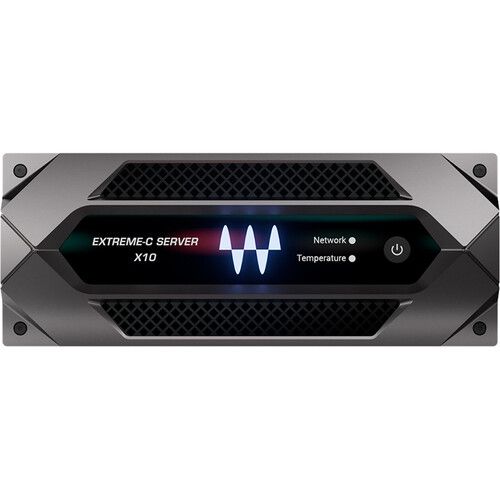

Waves Extreme-C SoundGrid Server DSP Unit - 2RU/Half-Rack

Updated with 10th-generation Intel Core CPU, 8GB of RAM, a sleek industrial design, and brand-new features, the Waves Extreme-C SoundGrid Server is a powerful DSP unit that can effortlessly process hundreds of SoundGrid-compatible plug-ins in real time, live, or in the studio. Taking only half the width of a standard 2 RU rack, the Extreme-C Server fits right inside your carry-on, so you can easily take your mixing to the extreme wherever you go.

Built for elegance and durability, the Extreme-C SoundGrid Server now features LED indicators for easy network and temperature monitoring, plus sturdy RAM positioning for a reliable mixing experience whatever your project. A single RJ45 port ensures simple connectivity to your host computer or SoundGrid audio network. The server comes with built-in rack ears for quick installation straight out of the box.

Add Massive Processing Power to Your System

• Ultralow latency as low as 0.8 ms at 44.1, 48, 88.2, and 96 kHz
• Quiet fan design—fan speed auto-adjusts based on CPU temperature
• Powerful new Intel 10th Generation Core i7-10700 Processor
• 2 RU half-rack, sleek industrial design
• Enhanced with sturdy RAM positioning for added reliability
• LED indicators for easy network and temperature monitoring
• Rugged Neutrik etherCon connector
• 8GB RAM
• Use with any SoundGrid I/O interface (including DiGiGrid I/Os)
• Use with non-SoundGrid I/Os (ASIO/Core Audio) via SoundGrid Connect
• Limited 1-year warranty, extended warranties available

Specifications

• Form Factor
  • Rackmount (Rack-Mountable with Included Hardware)
• Built-In DSP
  • Intel 10th Generation Core i7-10700
• Maximum Sampling Rate
  • 96 kHz / 24-Bit
• USB (Non-Host)
  • 2x USB-A (Service)
• Network I/O
  • 1x RJ45 SoundGrid
• Other I/O
  • 1x HDMI Service
• Sample Rates
  • 44.1 / 48 / 88.2 / 96 kHz
• Bit Depths
  • 24-Bit
• Latency
  • 0.8 ms
• OS Compatibility
  • macOS / Windows
• Power Requirements
  • AC Input
• AC Input Power
  • 100 to 220 VAC, 50 / 60 Hz
• Power Consumption
  • 65 W
• Rackmount Size
  • 2 U (1/2-Rack)
• Operating Conditions
  • 50 to 95°F / 10 to 35°C
• Dimensions
  • 11.2 x 8.7 x 3.4" / 28.4 x 22.1 x 8.6 cm
• Weight
  • 10.9 lb / 4.9 kg

In The Box

• Waves Extreme-C SoundGrid Server DSP Unit (2 RU, Half-Rack)
• AC Power Cord
• Limited 1-Year Manufacturer Warranty
