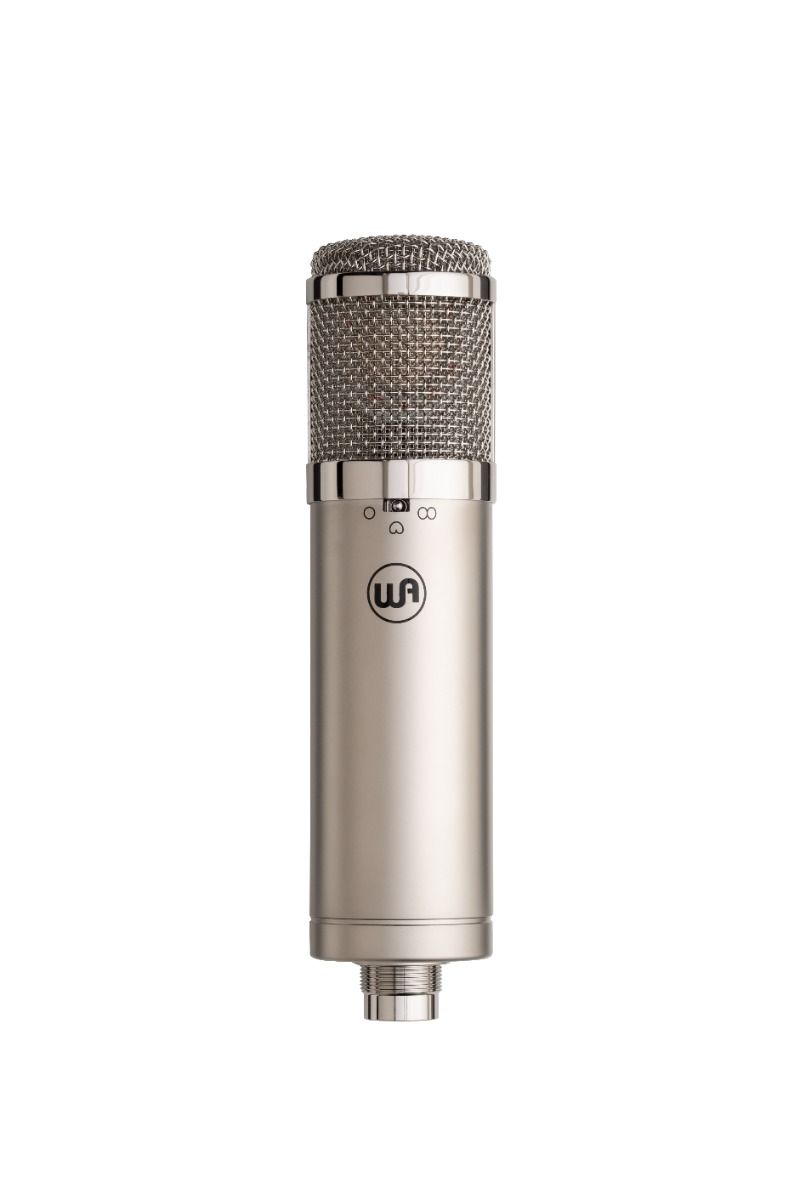

WARM AUDIO WA-47JR | Fet Transformerless Multi-pattern 47 Style Condenser Mic | Nickel

WA-47jr Nickel

Large-Diaphragm FET Transformerless Condenser Microphone

The WA-47jr is a contemporary version of the iconic ‘47-style microphone, known for rich analog warmth, with a modern circuit design and professional recording features. The custom K47-style capsule captures detailed mids, warm lows, and smooth highs delivering timeless sound on vocals, instruments, and more. The transformerless circuit provides analog warmth with plenty of clean headroom, perfect for any genre. With three selectable polar patterns (cardioid, omnidirectional, and figure-8) plus a 10 dB pad and 70 Hz high-pass filter, the WA-47jr offers the flexibility and tone of a classic tube mic in a modern FET design at an unthinkable price.

Classic Studio Sound, Contemporary Design

 The WA-47jr is a contemporary version of the iconic ‘47-style microphone, delivering lush warmth and classic tone with a modern multipattern condenser design. Combining one of the most legendary condenser capsules of all time with carefully designed contemporary circuitry, the WA-47jr delivers rich analog warmth on sources like vocals, acoustic guitar, drums, pianos, streaming/podcast and more.

Vintage-Accurate K47-Style Capsule

The WA-47jr features a true reproduction of the vintage dual-backplate, large-diaphragm K47-style capsule found in the most sought-after ‘47 microphones. Designed with the same hole pattern and frequency response as the original studio mic using a discrete signal path with ultra-low self-noise, WA-47jr delivers a rich analog tone perfect for vocals, instruments, and more.

Selectable Polar Patterns, Pad & Filter

The WA-47jr features three selectable polar patterns: cardioid, omnidirectional, and figure-8. Multiple patterns allow for precise control over the focus of the mic, from intimate “close” tones to capturing the natural ambiance of a room. The built-in pad and high-pass filter increase flexibility by making it easy to capture loud sources and reducing unwanted low-frequency noise. Together, these features make the WA-47jr a highly versatile microphone suited for a wide range of recording situations.

Professional Accessories

All WA-47jr’s include a professional shockmount to reduce noise while recording, hardmount for minimalist mounting, and leather storage case for travel and storage.

Hand-Tested In Austin, TX

Like all Warm Audio gear, every single WA-47jr is meticulously hand-tested and inspected by trained technicians with a passion for making music in Austin, TX USA.

Popular Uses

• Vocals
• Acoustic Guitar
• Piano
• Drum Overheads
• Guitar Cabs
• Toms/Snare
• Strings & Horns

Specifications

• Contemporary Version Of The Classic '47-Style Studio Mic
• Large-Diaphragm FET Transformerless Condenser Microphone
• Polar Patterns: Cardioid, Figure-8, & Omnidirectional
• 10 dB Pad | 70 Hz High-Pass Filter
• Gold-Sputtered, Large-Diaphragm, Dual-Backplate, K47-Style Capsule
• Fully Discrete Signal Path
• Self-Noise: 9dBA | Dynamic Range: 138dBA
• Maximum SPL: 147/157dB (Without/With Pad)
• Frequency Range: 20 Hz~20 KHz
• Output Impedance: 100 Ohms
• Sensitivity: 10mV/Pa Or -40dB

In The Box

• WA-47jr | Large-Diaphragm FET Transformerless Condenser Microphone - Nickel
• Shockmount
• Hard Mount
• Leather Storage Pouch
