SHURE SLXD14D+ | Dual Digital Wireless System

SLXD14D+

Dual-Channel Digital Wireless Bodypack System with No Mics (G57: 470 to 608 MHz)

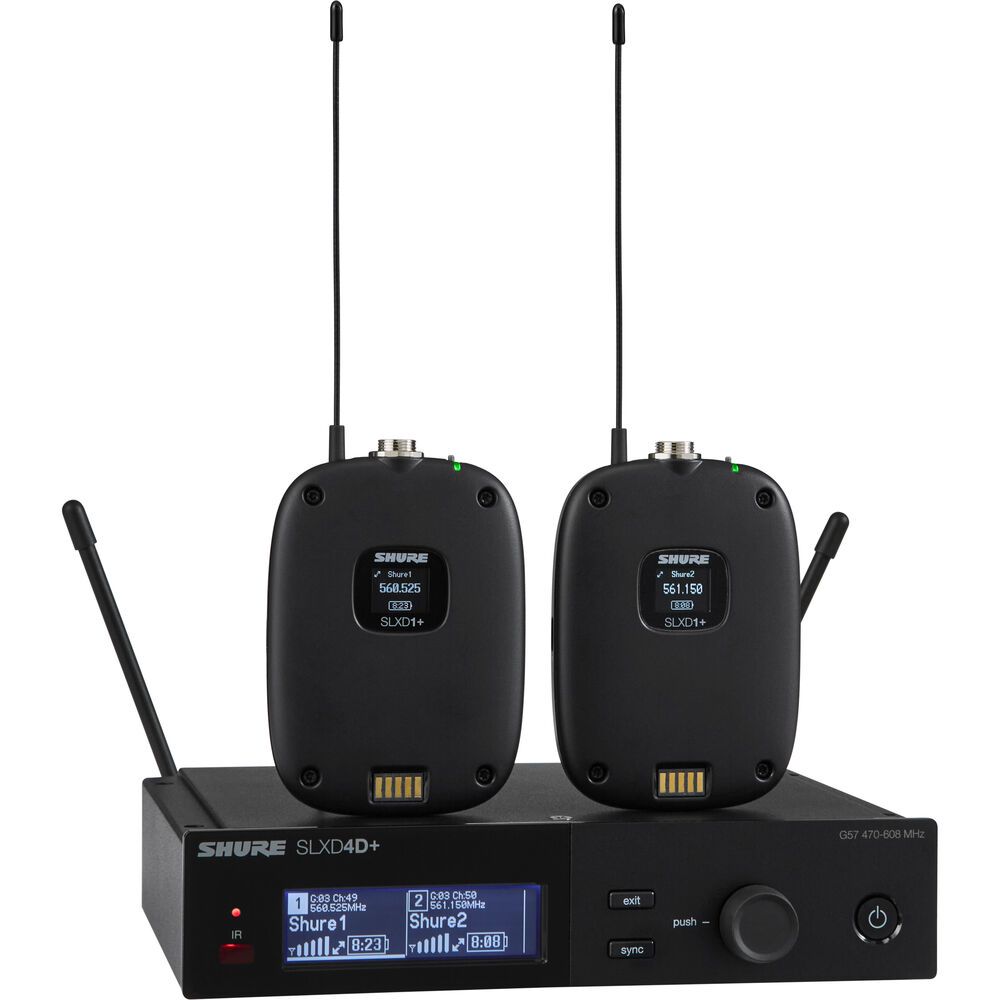

SLXD14D+ is a professional dual-channel digital wireless bodypack audio system designed for live performance, installed sound, and houses of worship. Built on the SLX-D+ platform, it combines transparent digital sound with expanded frequency coverage, automated wireless management, and hands-free system control for confident operation in demanding RF environments. This configuration includes a two-channel tabletop receiver in a rugged steel chassis—with rackmounting hardware included—along with two bodypack transmitters designed to be used the compatible microphone or instrument cable of your choice.

Two Lightweight Bodypack Transmitters with TA4M Inputs

Both bodypack transmitters offer lightweight, ergonomic ABS chassis and are equipped with belt clips and LCD screens providing essential information at a glance. Each features a locking TA4M connector that can accommodate a wide variety of lavalier, earset, or headset microphones, as well as Shure instrument cables for guitar and bass players.

Transparent Digital Audio and Expanded RF Performance

SLX-D+ delivers transparent 24-bit digital audio with greater than 118 dB of dynamic range for clear, accurate sound reproduction. An expanded wide tuning frequency range of up to 138 MHz (regionally dependent) provides greater geographical coverage and simplified frequency coordination. The system supports up to 11 simultaneous systems per 6 MHz TV band and up to 14 systems per 8 MHz TV band, making it well suited for scalable multi-channel deployments.

ShowLink Ease Automated Wireless Management

ShowLink Ease provides real-time two-way communication between paired SLX-D+ receivers and transmitters using BLE transmission. Once linked, transmitters automatically follow receivers across power cycles and RF changes. Engineers can remotely change transmitter frequency, adjust RF power, lock or unlock controls, apply interference mitigation, and perform over-air firmware updates—without touching the transmitter or requiring an IP network.

Wireless Workbench Desktop and Mobile Control

SLX-D+ systems integrate with Shure Wireless Workbench desktop software and the Wireless Workbench Mobile app, enabling monitoring and control over Wi-Fi or Bluetooth. Multiple mobile devices can associate with SLX-D+ receivers, with primary and backup control support. System setup, group scanning, transmitter management via ShowLink Ease, and interference monitoring can all be handled from a centralized interface.

Integrated Digital Feedback Reduction

Patented Shure Digital Feedback Reduction (DFR) software automatically detects and suppresses audio feedback using dynamic notch filters. Integrated directly into the SLX-D+ platform, DFR enhances clarity and stability in live sound environments where microphone placement and room acoustics may be less predictable.

Secure Operation and Flexible Power Options

SLX-D+ systems feature AES-256 encryption for secure wireless transmission. The bodypack transmitter operates for up to 8 hours on two AA batteries, with optional SB903 lithium-ion rechargeable batteries providing precise runtime readouts in hours and minutes when used with compatible Shure charging accessories (available separately).

Specifications

System

• Wireless Technology
  • Digital UHF
• Diversity
  • Yes
• RF Frequency Band
  • 470 to 608 MHz
• Number of RF Channel Frequencies
  • 5520
• Max Operating Range
  • 328.1' / 100 m
• Max Transmitters per Band
  • 14
• Dynamic Range
  • 118 dB
• Latency
  • 2.8 ms
• Encryption
  • AES 256
• Mobile App Compatible
  • Yes: Android & iOS

Receiver

• Receiver Type
  • 1x Tabletop/Rack-Mountable
• Mounting Options
  • Rackmount (with Included Hardware, 1 U Half-Rack)
• Antenna
  • 2x Removable
• Number of Audio Channels
  • 1
• Audio I/O
  • 1x XLR 3-Pin Balanced Mic/Line Output
  • 1x 1/4" TS Unbalanced Output
• Network I/O
  • 1x RJ45
• Gain Range
  • -18 to +42 dB
• Display
  • Backlit LCD
• Power Requirements
  • AC Input

Transmitters

• Included Transmitters
  • 2x Bodypack
• RF Output Power
  • 1 / 10 mW
• Antenna
  • Fixed 1/4 Wave
• Input Level
  • Microphone / Instrument
• Audio I/O
  • 1x TA4M/Mini-XLR 4-Pin Male Input
• Bias/Plug-In & Phantom Power
  • Has Bias/Plug-In Power
  • No Phantom Support
• Muting
  • Off/On Switch
• Sync Method
  • IR
• Display
  • Backlit LCD

Power

• Transmitter Battery Type
  • 2x AA (Included)
  • 1x Shure SB903 (Not Included)
• Transmitter Battery Life
  • 8 Hours
• AC/DC Power Adapter
  • 15 VDC (Included)

Physical

• Housing
  • Steel (Receiver)
  • ABS (Bodypack Transmitter)
• Dimensions
  • Receiver: 7.8 x 6 x 1.7" / 197 x 152 x 42 mm
  • Bodypack Transmitter: 3.9 x 2.7 x 1" / 98 x 68 x 25.5 mm
• Weight
  • Receiver: 2 lb / 900 g (without Antennas)
  • Bodypack Transmitter: 3.1 oz / 89 g

In The Box

• Shure SLXD14D+ Dual-Channel Digital Wireless Bodypack System (G57: 470 to 608 MHz)
  • Shure SLXD4D+ Dual-Channel Digital Wireless Receiver (G57: 470 to 608 MHz)
  • 2 x Shure SLXD1+ Digital Wireless Bodypack Transmitter (G57: 470 to 608 MHz)
• Carrying Bag
• Limited 2-Year Manufacturer Warranty
