SHURE GLXD24+/SM58 | Wireless Handheld System With Sm58 Microphone

GLXD24+/SM58-Z3

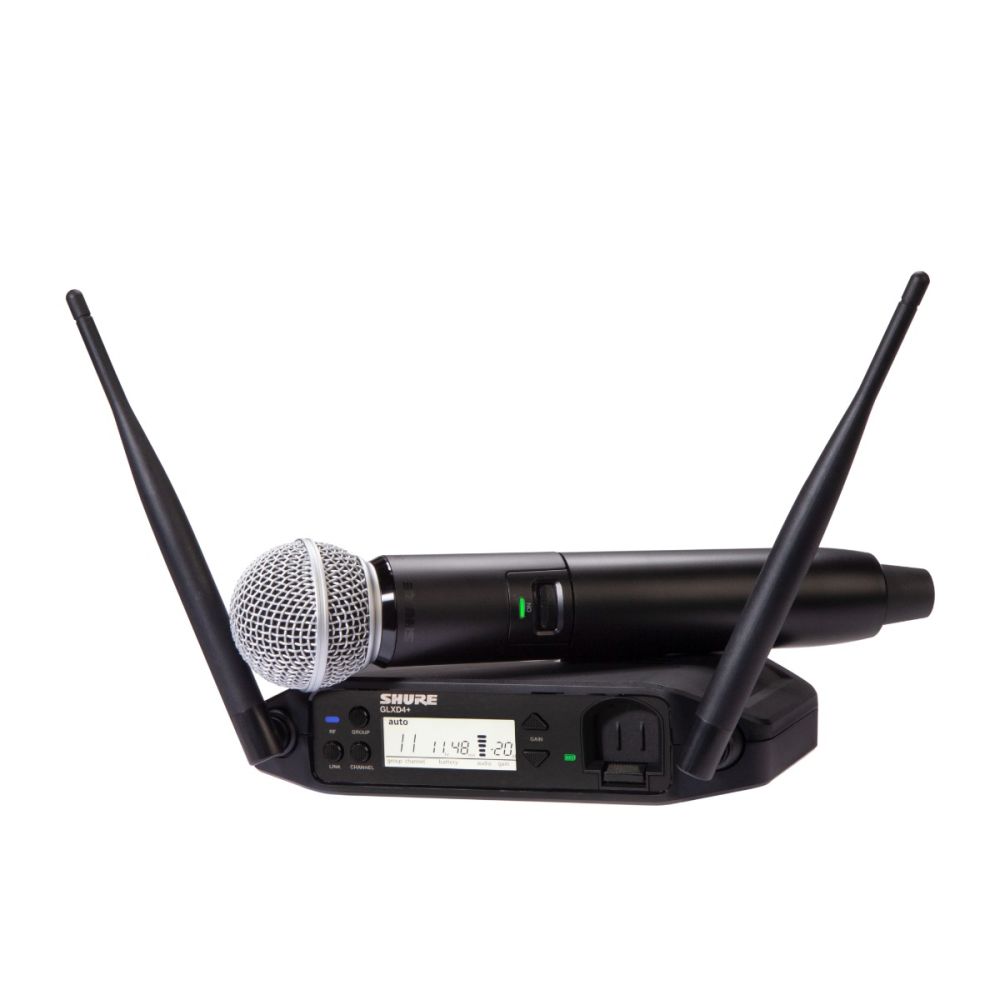

Dual Band Wireless System with GLXD4+ Tabletop Receiver and SM58® Handheld Transmitter

GLX-D+ Dual Band Digital Wireless is the perfect solution for musicians and presenters who want to go wireless with confidence, and without complexity. With new Dual Band Wireless Technology, GLX-D+ can operate in both 2.4 and 5.8GHz, more than doubling the available bandwidth while also intelligently avoiding interference for reliable, dropout-free audio.

Drop Outs Won’t Steal the Show

With the new Dual Band Wireless Technology, GLX-D+ can operate in both 2.4 and 5.8GHz, more than doubling your available bandwidth for reliable dropout-free audio.

Ready-To-Go. Every time. Automatically

GLX-D+ Dual Band Digital Wireless System is the ideal solution to go wireless without complication. Every aspect of its operation is managed automatically, allowing you to focus on your performance.

Smart Rechargeability

End battery life uncertainty with GLX-D+ Dual Band recharge - able battery. With up to 12 hours of runtime, the new lithium-Ion SB904 batteries can be charged directly in the receiver or via USB-C connector on the handheld microphone or bodypack. A quick charge feature allows for 1.5 hours of use from a 15 minute charge

System Specifications

• Compatibility
  • With Frequency Manager: Up to 11 compatible systems in typical setting, and up to 16 under ideal conditions
  • Without Frequency Manager: Up to 4 compatible systems in typical setting, and up to 8 under ideal conditions
• System Operating Range
  • Indoors: Up to 30 m (100 ft.) typical, with a maximum of 60 m (200 ft.) under ideal conditions
  • Outdoors: Up to 20 m (65 ft.) typical, with a maximum of 50 m (165 ft.) under ideal conditions
• Transmit Mode
  • Shure Proprietary Digital - Dual Band (2.4 GHz and 5.8 GHz)
• Audio Frequency Response
  • 20 Hz – 20 kHz
• Dynamic Range
  • 120 dB, A-weighted
• RF Sensitivity
  • -88 dBm, typical
• Total Harmonic Distortion
  • 0.07%, typical
• RF Output Power
  • 10 mW E.I.R.P. max
• Operating Temperature Range
  • -18°C (0°F) to 57°C (135°F) Note: Battery characteristics may limit this range.
• Storage Temperature Range
  • -29°C (-20°F) to 74°C (165°F)
• Polarity
  • Positive pressure on microphone diaphragm (or positive voltage applied to tip of WA302 phone plug) produces positive voltage on pin 2 (with respect to pin 3 of low-impedance output) and the tip of the high impedance 6,35 mm output.
• Battery Life
  • Up to 12 hours

GLXD4+ DUAL BAND WIRELESS RECEIVER

• Dimensions
  • 7.2 x 4.8 x 1.6 in. (182.8 x 121.97 x 40.3 mm), H x W xD, antennas folded
• Weight
  • 10.9 oz (310 g)
• Housing
  • Molded Plastic
• Power Requirements
  • 14.5 V - 17 V, 600mA
• Spurious Rejection
  • >35 dB, typical
• Gain Adjustment Range
  • -20 to 40 dB in 1 dB steps
• Phantom Power Protection
  • Yes
• Configuration
  • XLR Output
    • Impedance balanced
  • 6.35 mm (1/4“) output
    • Impedance balanced
• Impedance
  • XLR Output
    • 100 Ω
  • 6.35 mm (1/4“) output
    • 100 Ω (50 Ω, Unbalanced)
• Maximum Audio Output Level
  • XLR connector (into 600 Ω load)
    • 1 dBV
  • 6.35 mm (1/4“) connector (into 3 kΩ load)
    • +8.5 dBV
• Pin Assignments
  • XLR Output
    • 1=ground, 2=hot, 3=cold
  • 6.35 mm (1/4“) connector
    • Tip=audio, Ring/Sleeve=ground
• Receiver Antenna Input
  • Impedance
    • 50 Ω
  • Antenna Type
    • Dual Band 1/2 Wave Sleeve Dipole, non-removable
  • Maximum Input Level
    • −20 dBm

GLXD2+ DUAL BAND HANDHELD TRANSMITTER

• Dimensions SM58
  • 51 mm, 2.0 in.
  • 246mm, 9.9 in.
  • 37 mm, 1.5 in.
• Weight SM58
  • 275 g (9.7 oz), without battery
• Housing
  • Aluminum alloy, ABS plastic
• Power Requirements
  • 3.6 V Rechargeable Li-Ion
• RF Output Power
  • 10 mW E.I.R.P. max
• Maximum Input Level
  • 146 dB SPL

SM58 Dynamic Vocal Microphone

It’s an ideal choice for a professional vocal artist in any live performance setting. It is tuned to accentuate the warmth and clarity of lead and backing vocals. Even in extreme conditions, the SM58 is tailored to target the main sound source while minimizing background noise. It is also very popular with djs and presenters in clubs and in small and large live venues. Can it withstand the rigours of touring?

Durable construction, a proven shock-mount system, and a steel mesh grille ensure that even with rough handling, the SM58 will perform consistently, outdoors or indoors.

• Frequency response tailored for vocals, with brightened midrange and bass rolloff
• Uniform cardioid pickup pattern isolates the main sound source and minimizes background noise
• Pneumatic shock-mount system cuts down handling noise
• Effective, built-in spherical wind and pop filter
• Supplied with break-resistant stand adapter which rotates 180 degrees
• Legendary Shure quality, ruggedness and reliability
• Cardioid (unidirectional) dynamic
• Frequency response: 50 to 15,000 Hz
