SHURE GLXD24+/B58 | Wireless Handheld System With Beta58a Microphone

GLXD24+/B58-Z3

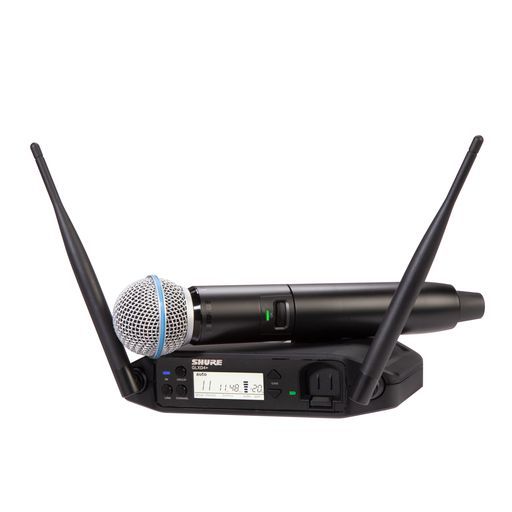

Dual Band Wireless System with GLXD4+ Tabletop Receiver and Beta®58A Handheld Transmitter

GLX-D+ Dual Band Digital Wireless is the perfect solution for musicians and presenters who want to go wireless with confidence, and without complexity. With new Dual Band Wireless Technology, GLX-D+ can operate in both 2.4 and 5.8GHz, more than doubling the available bandwidth while also intelligently avoiding interference for reliable, dropout-free audio.

Drop Outs Won’t Steal the Show

With the new Dual Band Wireless Technology, GLX-D+ can operate in both 2.4 and 5.8GHz, more than doubling your available bandwidth for reliable dropout-free audio.

Ready-To-Go. Every time. Automatically

GLX-D+ Dual Band Digital Wireless System is the ideal solution to go wireless without complication. Every aspect of its operation is managed automatically, allowing you to focus on your performance.

Smart Rechargeability

End battery life uncertainty with GLX-D+ Dual Band recharge - able battery. With up to 12 hours of runtime, the new lithium-Ion SB904 batteries can be charged directly in the receiver or via USB-C connector on the handheld microphone or bodypack. A quick charge feature allows for 1.5 hours of use from a 15 minute charge

System Specifications

• Compatibility
  • With Frequency Manager: Up to 11 compatible systems in typical setting, and up to 16 under ideal conditions
  • Without Frequency Manager: Up to 4 compatible systems in typical setting, and up to 8 under ideal conditions
• System Operating Range
  • Indoors: Up to 30 m (100 ft.) typical, with a maximum of 60 m (200 ft.) under ideal conditions
  • Outdoors: Up to 20 m (65 ft.) typical, with a maximum of 50 m (165 ft.) under ideal conditions
• Transmit Mode
  • Shure Proprietary Digital - Dual Band (2.4 GHz and 5.8 GHz)
• Audio Frequency Response
  • 20 Hz – 20 kHz
• Dynamic Range
  • 120 dB, A-weighted
• RF Sensitivity
  • -88 dBm, typical
• Total Harmonic Distortion
  • 0.07%, typical
• RF Output Power
  • 10 mW E.I.R.P. max
• Operating Temperature Range
  • -18°C (0°F) to 57°C (135°F) Note: Battery characteristics may limit this range.
• Storage Temperature Range
  • -29°C (-20°F) to 74°C (165°F)
• Polarity
  • Positive pressure on microphone diaphragm (or positive voltage applied to tip of WA302 phone plug) produces positive voltage on pin 2 (with respect to pin 3 of low-impedance output) and the tip of the high impedance 6,35 mm output.
• Battery Life
  • Up to 12 hours

GLXD4+ DUAL BAND WIRELESS RECEIVER

• Dimensions
  • 7.2 x 4.8 x 1.6 in. (182.8 x 121.97 x 40.3 mm), H x W xD, antennas folded
• Weight
  • 10.9 oz (310 g)
• Housing
  • Molded Plastic
• Power Requirements
  • 14.5 V - 17 V, 600mA
• Spurious Rejection
  • >35 dB, typical
• Gain Adjustment Range
  • -20 to 40 dB in 1 dB steps
• Phantom Power Protection
  • Yes
• Configuration
  • XLR Output
    • Impedance balanced
  • 6.35 mm (1/4“) output
    • Impedance balanced
• Impedance
  • XLR Output
    • 100 Ω
  • 6.35 mm (1/4“) output
    • 100 Ω (50 Ω, Unbalanced)
• Maximum Audio Output Level
  • XLR connector (into 600 Ω load)
    • 1 dBV
  • 6.35 mm (1/4“) connector (into 3 kΩ load)
    • +8.5 dBV
• Pin Assignments
  • XLR Output
    • 1=ground, 2=hot, 3=cold
  • 6.35 mm (1/4“) connector
    • Tip=audio, Ring/Sleeve=ground
• Receiver Antenna Input
  • Impedance
    • 50 Ω
  • Antenna Type
    • Dual Band 1/2 Wave Sleeve Dipole, non-removable
  • Maximum Input Level
    • −20 dBm

GLXD2+ DUAL BAND HANDHELD TRANSMITTER

• Dimensions SM58
  • 51 mm, 2.0 in.
  • 246mm, 9.9 in.
  • 37 mm, 1.5 in.
• Weight SM58
  • 275 g (9.7 oz), without battery
• Housing
  • Aluminum alloy, ABS plastic
• Power Requirements
  • 3.6 V Rechargeable Li-Ion
• RF Output Power
  • 10 mW E.I.R.P. max
  • 146 dB SPLMaximum Input Level

BETA® 58A Vocal Microphone

The Shure BETA 58A® is a high-output supercardioid dynamic vocal microphone designed for professional sound reinforcement and project studio recording. It has become a leading choice among vocalists and touring professionals worldwide.

The Beta 58A maintains a true supercardioid pattern throughout its frequency range. The Beta 58A has a shaped frequency response that is ideal for close-up vocals. The superb performance of this microphone is not affected by rough handling because of its rugged construction, proven shock mount system, and hardened steel mesh grille

• Frequency response tailored for vocals, with brightened midrange and bass rolloff to control proximity effect
• Uniform supercardioid pattern for high gain before feedback and superior rejection of off–axis sound
• Neodymium magnet for high signal–to–noise output
• Hardened steel mesh grille that resists wear and abuse
• Advanced pneumatic shock mount system that minimizes transmission of mechanical noise and vibration
• Minimally effected by varying load impedance
• Legendary Shure quality and reliability
