SHURE GLXD14+/B98 | Wireless Instrument System With Wb98h/c Microphone

GLXD14+/B98-Z3

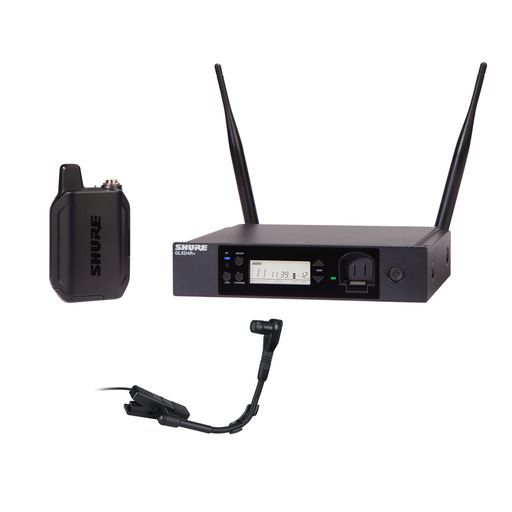

Dual Band Wireless System with GLXD4+ Tabletop Receiver, GLXD1+ Bodypack Transmitter and WB98H/C Gooseneck Instrument Microphone

GLX-D+ Dual Band Digital Wireless is the perfect solution for musicians and presenters who want to go wireless with confidence, and without complexity. With new Dual Band Wireless Technology, GLX-D+ can operate in both 2.4 and 5.8GHz, more than doubling the available bandwidth while also intelligently avoiding interference for reliable, dropout-free audio.

Drop Outs Won’t Steal the Show

With the new Dual Band Wireless Technology, GLX-D+ can operate in both 2.4 and 5.8GHz, more than doubling your available bandwidth for reliable dropout-free audio.

Ready-To-Go. Every time. Automatically

GLX-D+ Dual Band Digital Wireless System is the ideal solution to go wireless without complication. Every aspect of its operation is managed automatically, allowing you to focus on your performance.

Smart Rechargeability

End battery life uncertainty with GLX-D+ Dual Band recharge - able battery. With up to 12 hours of runtime, the new lithium-Ion SB904 batteries can be charged directly in the receiver or via USB-C connector on the handheld microphone or bodypack. A quick charge feature allows for 1.5 hours of use from a 15 minute charge

System Specifications

• Compatibility
  • With Frequency Manager: Up to 11 compatible systems in typical setting, and up to 16 under ideal conditions
  • Without Frequency Manager: Up to 4 compatible systems in typical setting, and up to 8 under ideal conditions
• System Operating Range
  • Indoors: Up to 30 m (100 ft.) typical, with a maximum of 60 m (200 ft.) under ideal conditions
  • Outdoors: Up to 20 m (65 ft.) typical, with a maximum of 50 m (165 ft.) under ideal conditions
• Transmit Mode
  • Shure Proprietary Digital - Dual Band (2.4 GHz and 5.8 GHz)
• Audio Frequency Response
  • 20 Hz – 20 kHz
• Dynamic Range
  • 120 dB, A-weighted
• RF Sensitivity
  • -88 dBm, typical
• Total Harmonic Distortion
  • 0.07%, typical
• RF Output Power
  • 10 mW E.I.R.P. max
• Operating Temperature Range
  • -18°C (0°F) to 57°C (135°F) Note: Battery characteristics may limit this range.
• Storage Temperature Range
  • -29°C (-20°F) to 74°C (165°F)
• Polarity
  • Positive pressure on microphone diaphragm (or positive voltage applied to tip of WA302 phone plug) produces positive voltage on pin 2 (with respect to pin 3 of low-impedance output) and the tip of the high impedance 6,35 mm output.
• Battery Life
  • Up to 12 hours

GLXD4+ DUAL BAND WIRELESS RECEIVER

• Dimensions
  • 7.2 x 4.8 x 1.6 in. (182.8 x 121.97 x 40.3 mm), H x W xD, antennas folded
• Weight
  • 10.9 oz (310 g)
• Housing
  • Molded Plastic
• Power Requirements
  • 14.5 V - 17 V, 600mA
• Spurious Rejection
  • >35 dB, typical
• Gain Adjustment Range
  • -20 to 40 dB in 1 dB steps
• Phantom Power Protection
  • Yes
• Configuration
  • XLR Output
    • Impedance balanced
  • 6.35 mm (1/4“) output
    • Impedance balanced
• Impedance
  • XLR Output
    • 100 Ω
  • 6.35 mm (1/4“) output
    • 100 Ω (50 Ω, Unbalanced)
• Maximum Audio Output Level
  • XLR connector (into 600 Ω load)
    • 1 dBV
  • 6.35 mm (1/4“) connector (into 3 kΩ load)
    • +8.5 dBV
• Pin Assignments
  • XLR Output
    • 1=ground, 2=hot, 3=cold
  • 6.35 mm (1/4“) connector
    • Tip=audio, Ring/Sleeve=ground
• Receiver Antenna Input
  • Impedance
    • 50 Ω
  • Antenna Type
    • Dual Band 1/2 Wave Sleeve Dipole, non-removable
  • Maximum Input Level
    • −20 dBm

GLXD1+ DUAL BAND BODYPACK TRANSMITTER

• Dimensions
  • 4.5 x 2.6 x 1.1 in. (115 x 66.94 x 28.51 mm), (H x W x D), without antenna
• Weight
  • 5.4 oz (153.1 g), without battery
• Power Requirements
  • 3.7 V Rechargeable Li-Ion
• Housing
  • Cast Metal, Black Powdercoat
• Input Impedance
  • 900 kΩ
  • 10 mW E.I.R.P. max
  • Connector
    • 4-Pin male mini connector (TA4M)
  • Configuration
    • Unbalanced
  • Maximum Input Level (1 kHz at 1% THD)
    • +8.4 dBV (7.5 Vp-p)
  • Antenna Type
    • Dual Band Internal Monopole
  • Pin Assignments TA4MTransmitter Input
    • 1: Ground (cable shield)
    • 2: + 5 V Bias
    • 3: Audio
    • 4: Tied through active load to ground (On instrument adapter cable, pin 4 floatsRF Output Power

WB98H/C Instrument Microphone

The Shure WB98H/C (the wireless version of the BETA 98H/C) is a premium cardioid condenser instrumental microphone that clamps onto the bell of wind instruments or onto the rim of percussion instruments.

The integrated gooseneck and ratcheting swivel joint allows the microphone to be easily positioned and secured in place, and an isolation shock-mount reduces the transmission of instrument 'key noise' and other mechanical noise. A gooseneck angle brace is included to provide better retention of the microphone placement during more active performances.

• The WB98H/C features transformerless preamplifier circuitry, which improves linearity across the full frequency range.
• The pickup pattern of the Beta 98H/C provides high gain-before-feedback and excellent rejection of unwanted noise.
• Its high maximum sound pressure level (SPL) enables it to handle the extreme demands of brass, woodwind and percussion instruments.
• Tailored frequency response for studio quality performance
• Wide dynamic range for use in high SPL environments
• Uniform supercardioid pattern for high gain before feedback and superior rejection of off-axis sound
• Optional A98D drum mount is unobtrusive and versatile--allows precise positioning of the microphone while holding it firmly in place
• Compact design reduces stage clutter
• Detachable cable for easy storage
• Interchangeable microphone cartridges with different polar patterns are available
• Legendary Shure quality, ruggedness, and reliability
