SENNHEISER XSW2-CI1-A | Wireless Instrument Set | A(548-572 Mhz)

XSW2-CI1

Wireless 2 Instrument System (A: 548 to 572 MHz)

The XSW2-CI1 Wireless 2 Instrument System features a true diversity receiver, a compact bodypack transmitter, and a robust instrument cable with a 1/4" jack. It has 12 compatible channels and is offered as an easy to use, all-in-one wireless system for electric bass, guitar, and keyboard instruments for live-sound applications.

The unit is built with automatic frequency management and synchronization so you don't have to scramble to find an available channel. The system offers an intuitive LCD display, two external antennas, a compact bodypack transmitter, and an instrument cable. Additionally, built with a metal receiver housing, the system also includes a rackmount kit, power supply, carry pouch, and two AA batteries.

• True diversity receiver with metal housing
• External antennas
• Automatic frequency management and synchronization
• Remote channel for easy setup
• Fully tunable over a wide range of UHF frequencies
• Rackmount kit included
• Up to 12 compatible channels

Specifications

System

• Wireless Technology
  • Analog UHF
• Diversity
  • Yes, True Diversity
• RF Frequency Band
  • A: 548 to 572 MHz
• Number of RF Channel Frequencies
  • 96
• Max Transmitters per Band
  • 12

Receiver

• Receiver Type
  • 1x Tabletop/Rack-Mountable
• Mounting Options
  • Rackmount (with Included Hardware, 1 U Half-Rack)
• Antenna
  • 2x Removable BNC External (Rear-Mount)
• Number of Audio Channels
  • 1
• Audio I/O
  • 1x XLR 3-Pin Balanced Mic/Line Output
  • 1x 1/4" TS Unbalanced Output
• Gain Range
  • 40 dB
• Display
  • Alphanumeric LED
• Power Requirements
  • AC/DC Power Adapter

Transmitter

• Included Transmitters
  • 1x Bodypack
• RF Output Power
  • 10 mW
• Antenna
  • Fixed Flexible Whip
• Input Level
  • Microphone / Instrument / Line
• Audio I/O
  • 1x 1/8" / 3.5 mm Locking TRS Female Input
• Muting
  • Off/On Switch
• Gain Range
  • 0 to -30 dB (10 dB Steps)
• Frequency Response
  • 80 Hz to 16 kHz (Mic)
  • 50 Hz to 16 kHz (Line)
• Sync Method
  • 2.4 GHz QPSK
• Display
  • LCD (Non-Backlit)

Power

• Transmitter Battery Type
  • 2x AA (Included)
• Transmitter Battery Life
  • 10 Hours
• AC/DC Power Adapter
  • 12 VDC at 300 mA (Included)

Physical

• Housing
  • ABS (Transmitter)
  • Metal (Receiver)
• Dimensions
  • Receiver: 7.9 x 1.7 x 5" / 200 x 42 x 127 mm
  • Transmitter: 2.8 x 3.8 x 1.1" / 71 x 96 x 28 mm
• Weight
  • Receiver: 24 oz / 680 g
  • Transmitter: 3.4 oz / 96 g

In The Box

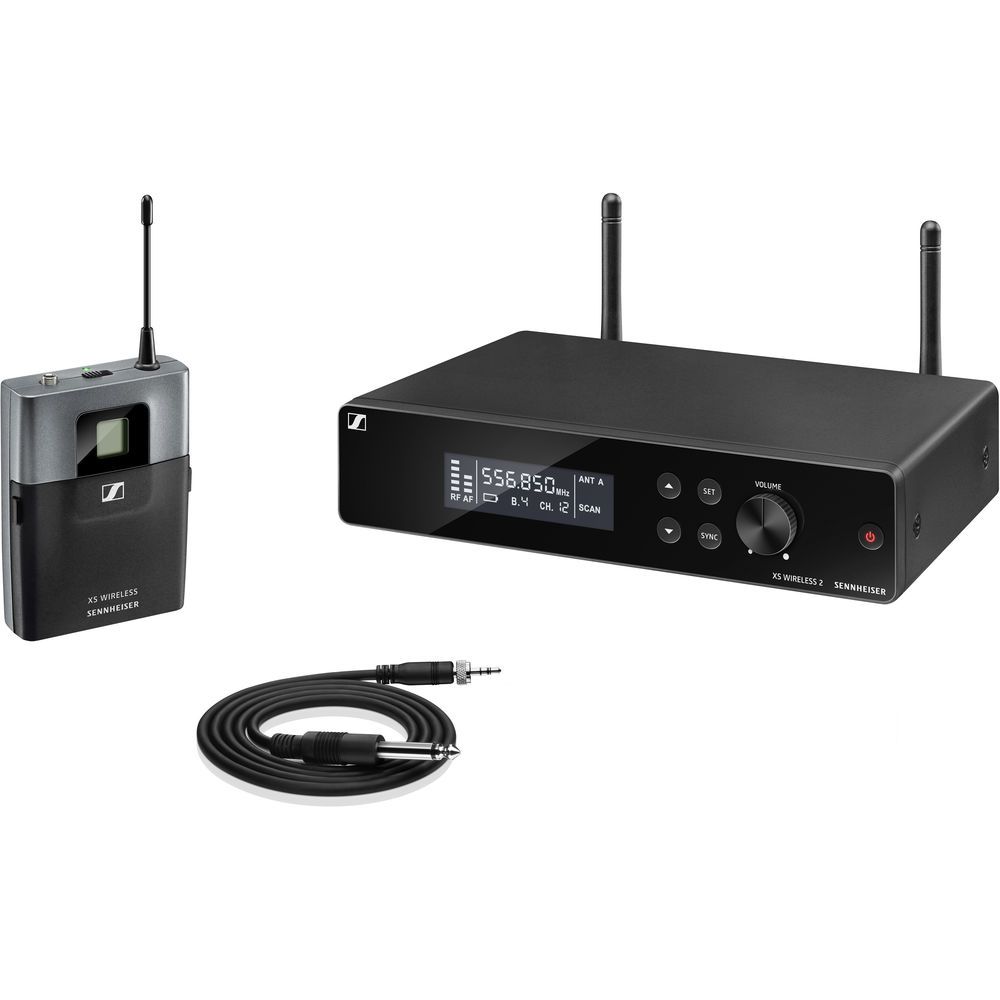

• Sennheiser XSW2-CI1 Wireless 2 Instrument System (A: 548 to 572 MHz)
  • EM-XSW 2 Receiver
  • SK-XSW Bodypack Transmitter
  • 1/4" to 1/8" Instrument Cable
  • 2 x AA Batteries
  • NT 12-5 CW Power Supply
  • Rackmount Kit
  • Protective Pouch
  • Limited 2-Year Manufacturer Warranty
