Exo-Pod

Broadcast Splitter with XLR & 3.5mm Connections

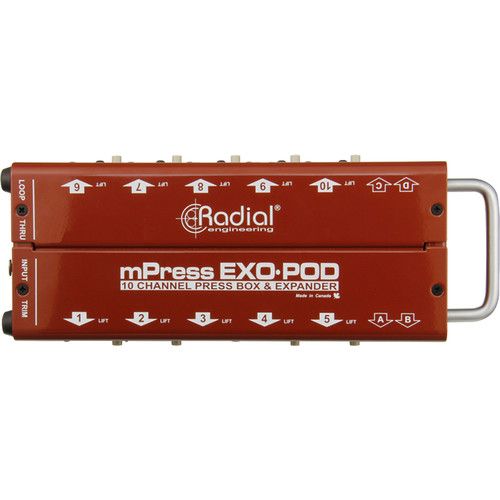

With transformer-isolated circuitry and requiring no power to run, the Exo-Pod from Radial Engineering is a floor box designed to take the balanced output from any mixing console and distribute the signal to ten XLR outputs and four 3.5mm connections, giving you as many as 14 separate audio destinations for one signal. As such, the Exo-Pod is useful in broadcast applications, such as connecting to handheld recorders, video cameras, or wireless receivers.

Simply plug in a balanced XLR signal into the unit's XLR input jack to get started. From there, the signal will be protected by a variety of different features, such as the 14-gauge steel casing to provide shielding against magnetic fields, as well as the transformer-isolated outputs. Each XLR output has its own ground lift switch to help exterminate hum or buzz from ground loops. On the side of the unit, a trim pot allows any broadcast technician to easily reduce output level across all 14 connections. An XLR loop-through allows you to daisy-chain the signal to additional units, while bumpers on the side protect the aforementioned throughput and the input. Rubber feet keep your floor scuff-free, and a steel handle allows for quick maneuverability and transport.

• Completely passive design
• Exo-Pod transformer will block phantom power to prevent damage to unit
• 10 x XLR transformer-isolated outputs
• Ground lifts to help eliminate buzz and hum caused by ground loops
• 4 x 3.5mm transformer-isolated mini TRS outputs
• Durable switches with metal outer casing, rated at over 20,000 cycles
• Double-sided, military-spec circuit board to ensure durability
• Full ground plane to reduce radio frequency interference
• Trim control for quick level adjustments across all outputs
• XLR loop-through to feed additional Exo-Pods
• Durable powder coat
• Steel handle for quick maneuverability
• Replaceable rubber feet
• Bumper to protect connectors and trim control

Specifications

• Audio Circuit Type
  • Passive
• Frequency Response
  • < 20 Hz to > 20 kHz, ±1 dB
• Total Harmonic Distortion
  • 0.001%
• Dynamic Range
  • > 136 dB / > 100 dB
• Input Impedance
  • 350 Ohms
• Common Mode Rejection Ratio
  • 63 dB
• Gain
  • Input to XLR Output: -3.5 dB / -18 dBu
  • Input to mini Out: -1.3 dB / -20 dB
• Input Clip Level
  • > +26 dBu
• Output Impedance
  • XLR Outputs: 1000 Ohms
  • Mini Outputs: 4600 Ohms
• Equivalent Input Noise
  • -108 dBu / -84 dBu
• Noise Floor
  • XLR Out: -111 dB
  • Mini Out: -86 dB
• Intermodulation Distortion
  • 0.006%
• Phase Deviation
  • -5 / +25°
• Controls
  • Input level trim
• Switches
  • Ground lifts
• Construction
  • 14-gauge steel chassis and outer shell
• Finish
  • Powder coat
• Dimensions
  • 11.8 x 5 x 2.3" / 29.8 x 12.7 x 5.7 cm
• Weight
  • 3.6 lb / 1.6 kg

In The Box

• Radial Engineering Exo-Pod Broadcast Splitter with XLR & 3.5mm Connections
• Limited 3-Year Manufacturer Warranty
