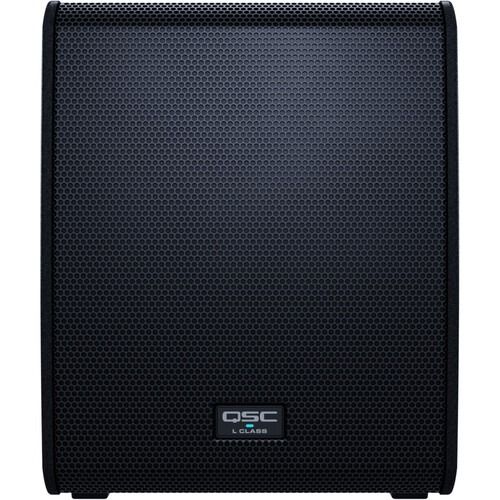

QSC LS118 | 18-inch Powered Subwoofer W/ Dante

LS118

4000W Next-Generation Intelligent Active 18" Subwoofer - Black

Featuring a combination of leading-edge innovation, refined engineering, and unparalleled ease of use in an easy-to-deploy package, the QSC LS118 is a next-generation, intelligent, active subwoofer that's designed to complement the LA 108 and LA 112 line-array loudspeakers. The subwoofer is well suited for live venues, fixed installations, mobile entertainers, AV rental, and event production.

The LS118 features a QSC Acoustic Linear Phase (ALP) design, which permits the effortless combination and coherent deployment of QSC loudspeakers within the same sound system. The subwoofer also provides daisy-chain connections for analog, networked digital audio (Dante and Q-Sys) and AC power (PowerCON TRUE1). Two or more LS118 can be configured in a cardioid arrangement, maximizing low-frequency output in front while minimizing unwanted energy around the sides and rear of the system. The LS118 includes four 4" casters and a powerCON TRUE 1 power cord.

• Very high SPL output (138 dB peak) with impressive low-frequency performance
• Purpose-designed 18" long-excursion direct radiating driver
• Energy-efficient, 4000W peak power Class-D amplifier module with Power Factor Correction and extremely low AC consumption
• Acoustic Linear Phase (ALP) design provides complementary coherence between QSC loudspeakers deployed in the same audio system, delivering a uniform listening experience across the entire venue
• QSC SysNav (System Navigator) App allows the user to easily design, configure, control, monitor, and apply signal processing to individual subwoofers, full arrays, or groupings of both
• Network solution includes digital audio-over-IP (Dante) for interoperability with other audio equipment and seamless control and monitoring integration into the Q-SYS Ecosystem via Q-SYS Inventory Extensions
• Omnidirectional or cardioid radiation modes (cardioid setup requires minimum 2 units)
• Selectable DEEP mode for extremely low-frequency extension
• Rugged wooden enclosure with polyurea coating for lasting durability
• Four low-noise, heavy-duty casters
• Vertical or horizontal deployments (M20 threaded pole receivers) combined with array frames and stack adapters or loudspeaker poles
• Complemented by optional LA 108 and LA 112 active line array loudspeakers
• 6-year extended warranty with product registration

Specifications

• Speaker Type
  • Active Line Array Subwoofer
• Enclosure Type
  • Bass-Reflex
• Total Output Power
  • 4000 W
• Amplifier Class
  • Class-D
• LF Driver
  • 1x 18" / 45.7 cm Woofer
• Frequency Range/Response
  • 35 Hz to 111 Hz (-10 dB)
  • 41 Hz to 98 Hz (-6 dB)
• Maximum SPL
  • 138 dB (Peak)
• Dynamic Processing
  • Limiter
• Audio I/O
  • 1x XLR 3-Pin Line Input
  • 1x XLR 3-Pin Line Thru
• Network I/O
  • 2x RJ45 (Dante)
• Mobile App Compatible
  • Yes: iPadOS Only
  • App Name: QSC SysNav
• AC Input Power
  • 100 to 240 VAC, 50 / 60 Hz
• AC Power I/O
  • 1x powerCON Input
  • 1x powerCON Output
• Current Consumption
  • 100 VAC: 3.6 A (1/8 Power)
  • 120 VAC: 3 A (1/8 Power)
  • 230 VAC: 1.7 A (1/8 Power)
• Color
  • Black
• Mounting Stand Mount
  • 2 x M20-Threaded Pole Socket (Side, Top)
• Suspension Points
  • 8 x M10 Fly Point (Side, Top)
• Construction Material
  • Metal Grill, Plywood
• Dimensions
  • 31.1 x 25.2 x 20.5" / 79 x 64 x 52.1 cm
• Weight
  • 110 lb / 49.9 kg

In The Box

• QSC LS118 4000W Next-Generation Intelligent Active 18" Subwoofer (Black)
• powerCON True 1 Power Cord
• 4 x Heavy-Duty, Low-Noise 4" Casters
• Limited 6-Year Manufacturer Warranty (With Product Registration)
