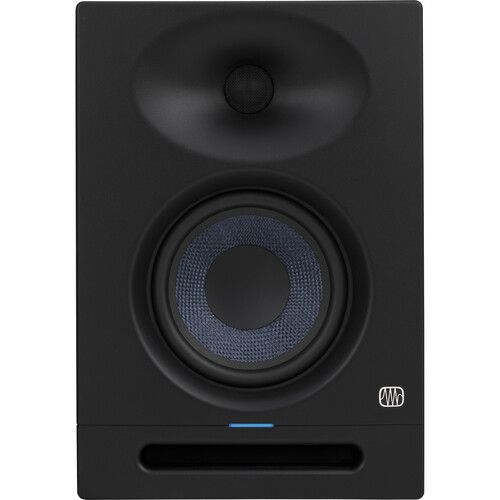

PRESONUS ERIS Studio 5 | 5-inch 2-way Active Studio Monitor W/ Ebm Waveguide

Eris Studio 5

Compact 5" 80W Studio Monitor with EBM Waveguide - Single

Eris Studio 5, is an active 2-way studio monitor which provides an expanded and highly accurate frequency response and a wide stereo field, thanks to the custom-designed EBM (Elliptical Boundary Modeled) waveguide, which provides a broad sweet spot. This compact studio monitor is well suited in both home studios and professional mix rooms.

Two Class-AB amplifiers deliver 45W to the 5.25" woven composite woofer and 35W to the 1" silk dome tweeter, which offers a snappy, accurate transient response. The monitor offers a frequency response from 20 kHz down to 48 Hz for a full-range sound with plenty of volume (102 dB SPL). The rear panel provides acoustic tuning controls including a three-position Acoustic Space switch that helps compensate for the boundary bass boost that can occur when a monitor is placed in a corner or near a wall. High and Mid controls help to further mitigate room anomalies, while a low cutoff filter makes it easy to integrate a subwoofer into your monitor setup.

• 5.25" woven composite low-frequency driver
• 1" ultralow mass, silk-dome, high-frequency driver
• Crossover Frequency, 3.5 kHz
• 100 x 60° EBM waveguide provides a sweet spot
• Front-firing acoustic port for superior bass-frequency reproduction and optimized, resonance-suppressing internal bracing
• 80W, Class AB dual amplification
• 48 Hz to 20 kHz frequency response
• 102 dB Peak SPL (at 1 m)
• Acoustic Tuning Controls:
  • Acoustic Space (Flat, -2 dB, -4 dB)
  • High Frequency (±6 dB, center 10 kHz, continuously variable)
  • Mid Frequency (±6 dB, center 1 kHz, continuously variable)
  • Low Cut (Flat, 80 Hz, 100 Hz @ -12 dB / octave)
• Inputs:
  • XLR and 1/4-inch TRS balanced rear-panel inputs
  • RCA unbalanced rear-panel inputs
• Protection:
  • RF interference
  • Output-current limiting
  • Over-temperature
  • Turn-on/off transient
  • Subsonic filter
• Power Saver mode (engages after 40 minutes)

Specifications

• Monitor Type
  • Active 2-Way
• Enclosure
  • Bass-Reflex/Ported
• Total Power Output
  • 80 W Drivers
• Tweeter
  • 1x 1" / 25.4 mm Silk Dome
• Woofer
  • 1x 5.25" / 13.34 cm Composite Cone
• Amplifiers
  • HF: 35 W Class-AB
  • LF: 45 W Class-AB
• Frequency Response
  • 48 Hz to 20 kHz
• Maximum Sound Pressure Level (SPL)
  • 102 dB
• EQ
  • 1x HF Shelf
  • 1x Mid Notch/Peak
• Filters
  • High-Pass at 80 to 100 Hz
• Crossover Frequency
  • 3.5 kHz
• Audio I/O
  • 1x RCA Unbalanced Line Input
  • 1x 1/4" TRS Balanced Line Input
  • 1x XLR 3-Pin Balanced Line Input
• AC Input Power
  • 100 to 240 VAC, 50/60 Hz
• Color
  • Black
• Monitor Orientation
  • Vertical
• Dimensions (W x H x D)
  • 8 x 11.5 x 8.8" / 20.3 x 29.2 x 22.4 cm (Each)
• Weight
• • 11.5 lb / 5.2 kg

In The Box

• PreSonus Eris Studio 5 Compact 5" 80W Studio Monitor with EBM Waveguide (Single)
• Power Cord
• Limited 1-Year Manufacturer Warranty
