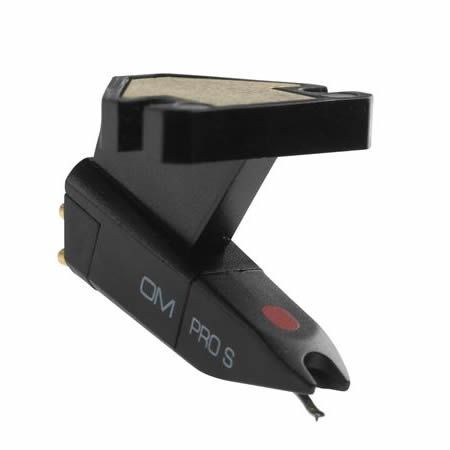

ORTOFON PRO S Om Single Turntable Dj Cartridge

OM Pro S entry-level cartridge

New DJ? This entry-level cartridge is perfect for newcomers on the DJ scene who want to start off with decent, but not too expensive equipment.

The Pro S has a spherical diamond stylus which minimizes scratching and a solid cantilever which can survive hectic activity at the turntable.

No matter what the application, the Pro S provides remarkable versatility for virtually any setting.

The sound quality is absolutely not to worry about.

The Pro S is a consistent performer and a fine all-arounder!

Pro S Technical data

• Output voltage at 1000Hz, 5cm/sec. - 5 mV
• Channel balance at 1kHz - 2 dB
• Channel separation at 1kHz - 20 dB
• Channel separation at 15 kHz - 15 dB
• Frequency range at -3dB - 20-18.000 Hz
• Tracking ability at 315 Hz at recommmended tracking force - 70 μm
• Compliance, dynamic lateral - 7 μm/m N
• Stylus type - Spherical
• Stylus tip radius - R 18 μm
• Tracking force range - 3 - 5 g
• Tracking force recommended - 4 g
• Tracking angle - 20°
• Internal impedance, DC resistance - 750 Ohm
• Internal inductance - 450 mH
• Recommended load resistance - 47 kOhm
• Recommended load capacitance - 200-600 pF
• OM cartridge weight - 5,0 g
• Replacement stylus unit - Pro S
