ORTOFON DJ Stylus | Spherical Stylus | Low Record Wear

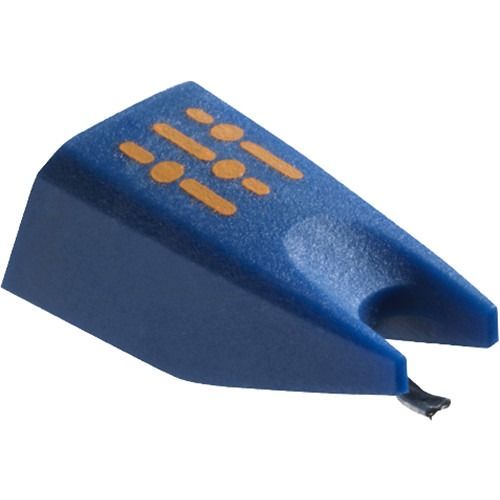

Stylus CC MKII DJ

The replacement stylus offers a tactile feedback when seating, indicating a snug and secure fit, while a cut-out area in the front allows for far more accurate needle drops.

Specifications

• Channel balance at 1 kHz
  • 1 dB
• Output voltage at 1 kHz, 5cm/sec
  • 6 mV
• Channel separation at 1 kHz
  • 22 dB
• Tracking ability at 315 Hz
  • 100 μm
• Compliance, dynamic, lateral
  • 14 μm/m N
• Stylus type
  • Spherical R 18 μm
• Tracking force range
  • 3 - 5 g
• Tracking force, recommended
  • 4 g
• Cartridge weight stylus
  • = 1 g
