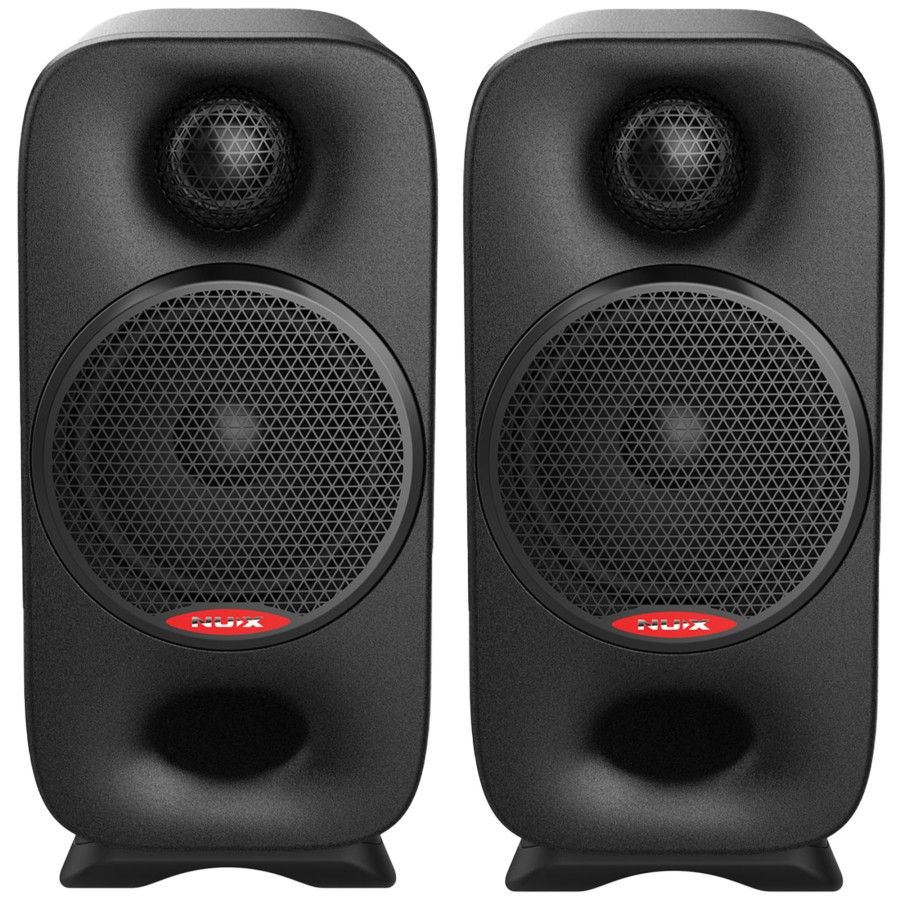

NUX NFM-03 | Axon 3 90w B-amp Studio Reference Monitor

NFM-03

Axon 3 90w B-amp Studio Reference Monitor

Take your sound to the next level with the NUX AXON 3, a professional-grade ultra-compact studio reference monitor designed for precision, clarity, and versatility. Whether you’re mixing, mastering, producing, or streaming, AXON 3 delivers exceptional audio performance in a portable, backpack-friendly size.

90W Bi-Amp Power with 3" Woofers

Four Class-D amplifiers drive each speaker independently for maximum efficiency, delivering 90W RMS power for a clean, dynamic, and highly detailed sound. Two 3-inch neodymium woofers with bass ports reach down to 55Hz, while two 3/4-inch silk dome tweeters provide crisp highs.

Advanced DSP and Acoustic Correction EQ APP

Flexible Audio I/O

The AXON 3 offers a wide range of connectivity options, including USB DAC for high-quality digital audio input, Bluetooth streaming for wireless convenience, 1/4″ stereo inputs for versatile instrument connections, RCA for compatibility with vinyl or other audio systems, and 1/8″ AUX for easy integration with mobile devices or external audio sources. Whether you’re working in the studio or on the go, it ensures seamless connection to all your audio sources.

Magnetic Footpads & 3/8" Mounting Socket

The AXON 3 features two magnetic footpads with adjustable tilt angles of +9° and -5° to direct sound precisely to your ears while minimizing desk vibrations. The bottom also includes a 3/8″ female socket for secure mounting on any microphone or speaker stand, offering flexible placement options.

Studio-Grade Performance Anywhere

The AXON 3 delivers professional sound in any environment. Its compact size, lightweight design, and included carrying bag make it ideal for music production, composing, video editing, live streaming, and more—ensuring exceptional sound quality and precision wherever you go.

• Professional-quality bi-amplified two-way monitor speakers delivering 90W RMS power for balanced performance.
• 3-inch neodymium magnet drivers for deep bass and 3/4-inch silk dome tweeters for smooth highs.
• Precise, flat, and detailed sound with low-frequency extension down to 55Hz.
• Backpack-friendly size with a maximum SPL of 107dB.
• Onboard high-resolution digital signal processing for accurate sound.
• Comes with AXON STUDIO software and an APP for customizable acoustic correction.
• Adjustable magnetic footpads for tilt and enhanced sound precision.
• Enables real-time music streaming via Bluetooth connection.
• High-dynamic USB AUDIO DAC for premium Hi-Fi audio.
• RCA unbalanced stereo inputs for vinyl systems.
• Includes 4-pin stereo link cable and power supply.

Specifications

• Type: Bi-amp 2-way powered reference studio monitor
• Crossover Frequency: 3kHz
• Frequency Responses: 55Hz-20kHz (-3dB) 45kHz-22kHz (-10dB)
• Tweeter: 3/4-inch silk dome
• Woofer: 3-inch neodymium magnet
• Enclosure: Specially designed long-guided bass-reflex type
• Material : ABS
• Max. SPL: 107dB
• Number of Amps : 4
• Output Power: Total 45W + 45W LF 30W HF 15W
• Input Impedance: 10k ohms /-10dBu
• Amplifiers Type: Class D
• Connectors: 2 x 1/4” TS input 2 x RCA unbalanced input 1 x 1/8” stereo AUX input 4-pin speakers connector
• Bluetooth: Bluetooth 5.0 Compatible with AVRCP Profile V1.6, A2DP Profile V1.3 and HFP Profile V1.7
• USB DAC: 48kHz 24bits
• Controls: Volume control
• Built-in DSP acoustic correction EQ, app/software controlled
• Dimensions: 204.5(L) x 9.4(W) x 150(H) mm (Single)
• Weight: 1.98kg (Pair)
