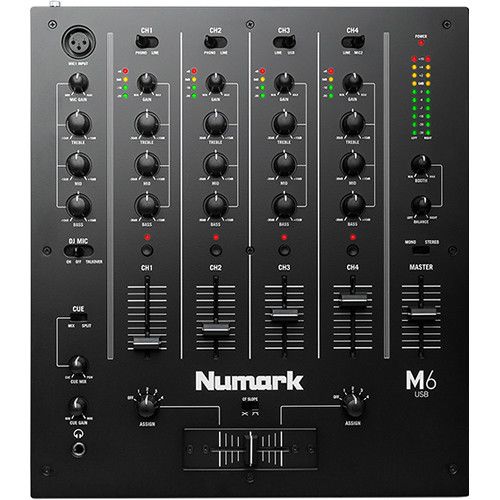

NUMARK M6 USB Black | 4-Channel DJ Mixer

M6 USB

4-Channel USB DJ Mixer - Black

M6 USB is a four-channel DJ mixer well suited for clubs, professionals, and home enthusiasts. The integrated USB audio interface is class compliant and connects to either Mac or PC without the need for drivers. Play music from any optional DJ software and record the mix into any audio recording application.

The M6 features a 3-band EQ per channel, dedicated microphone input with EQ, and a replaceable crossfader with slope control. The master output offers balanced XLR and unbalanced RCA jacks, while booth and recording outputs are available via RCA connections. The M6 USB ships with a USB cable and a standard IEC power cord.

• Four input channels, each with gain, 3-band EQ, and LED metering
• USB computer connection for playing and recording with Mac or PC
• Play music from music-player software
• Record your mix to your computer
• Multiple phono, line, and mic inputs
• Dedicated XLR mic channel and additional mic input on channel 4
• Replaceable crossfader with slope control
• Assign any channel to either side of the crossfader
• Class Compliant: This product is immediately compatible with every current and future version of Mac OS X and iOS and with Windows (98SE and up) operating systems

Specifications

• Number of Channels
  • 4x Stereo
• Faders
  • 4x Channel Level
  • 1x Crossfader
• Meters
  • Channel Meter: 4x Multi-Segment LED
  • Main Meter: 1x 9-Segment LED
• EQ
  • 4x Channel EQ:
    • Low: -32 to +12 dB at 60 Hz
    • Mid: -32 to +12 dB at 1.2 kHz
    • Hi: -28 to +10 dB at 15 kHz
  • Mic EQ:
    • Low: ±12 dB at 100 Hz
    • Mid: ±10 dB at 1.2 kHz
    • Hi: ±12 dB at 15 kHz
• Performance Controls
  • EQ, Voice Ducking
• Audio Inputs
  • 4x Stereo 2RCA Coaxial Line Input
  • 2x Stereo 2RCA Coaxial Phono Input
  • 1x XLR 3-Pin Mic Input
  • 1x 1/4" TRS Mic Input
• Audio Outputs
  • 2x XLR 3-Pin Unbalanced Master Output
  • 1x Stereo 2RCA Coaxial Unbalanced Master Output
  • 1x Stereo 2RCA Coaxial Unbalanced Booth Output
  • 1x Stereo 2RCA Coaxial Unbalanced Record Output
  • 1x 1/4" TRS Headphone Output
• USB
  • 1x USB-B
• Frequency Response
  • Line: 20 Hz to 20 kHz ±0.5 dB
  • Mic: 20 Hz to 15 kHz ±0.5 dB
  • Phono: 20 Hz to 20 kHz ±1 dB (RIAA Curve)
• Input Level
  • Line: 77 mVrms (for +4 dBu Output)
  • Mic: 1.1 mVrms (for +4 dBu Output) 60 mVrms (Max)
  • Phono: 1.3 mVrms (for +4 dBu Output, 1 kHz)
• Output Level
  • 6.7 Vrms (Max)
• Headphone Output Power
  • 500 mW into 47 Ohms
• I/O Impedance
  • Line Input: 10 Kilohms
  • Mic Input: 600 Ohms (Unbalanced)
  • Phono Input: 47 Kilohms
• SNR
  • Line: >96 dBA (Max Output)
  • Mic: >94 dBA (Max Output)
  • Phono: >79 dBA (Max Output)
• THD
  • <0.01%
• OS Compatibility
  • macOS / Windows
• Supported Drivers/API & Plug-Ins
  • macOS Class-Compliant (No Driver Needed)
  • Windows Class-Compliant (No Driver Needed)
• Required Hardware
  • USB 2.0 Port
• Power Requirements
  • AC/DC Power Adapter (Included)
• AC Input Power
  • 100 to 120 VAC, 60 Hz
• AC Power I/O
  • IEC
• Power Consumption
  • 9.1 W (Typical)
  • 11.6 W (Maximum)
• Dimensions (W x D x H)
  • 12.6 x 14.2 x 4.0" / 32.1 x 36.2 x 10.2 cm
• Weight
  • 9.6 lb / 4.4 kg

In The Box

• Numark M6 USB 4-Channel USB DJ Mixer (Black)
• USB Cable
• IEC Power Cable
• Limited 1-Year Manufacturer Warranty
