JBL EON One Compact | All In One Battery Powered Portable Pa W/ Pro-grade Mixer

EON ONE Compact

All-in-One Rechargeable Personal PA

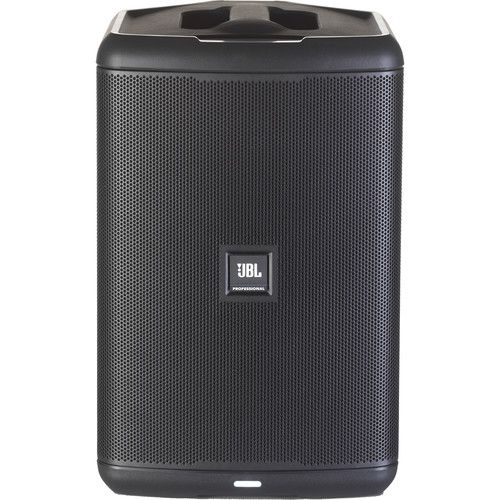

The JBL EON ONE Compact is an all-in-one rechargeable personal PA system well suited for singer-songwriters, fitness instructors, corporate speaking engagements, and educational presentations. The self-powered speaker sports an 8" woofer and 1" tweeter, which combine to offer a frequency response of 37.5 Hz to 20 kHz at a respectable 112 dB SPL. The enclosure is lightweight at under 20 lb and features a handle for ease in transport.

JBL Professional Sound

• Small enough to carry in one hand, yet the sound is big enough to fill the room
• This ultracompact system provides 112 dB of crystal-clear sound produced across the entire frequency range with uncompressed bass even at high output levels
• The 8" woofer extends low-end response to 37.5 Hz

Complete Sound Solution

• The EON ONE Compact is a loudspeaker, amp, and mixer with effects all rolled up in one easy-to-carry package
• Lighten your load-in while maximizing the value of your gear investment

Professional Connectivity

• Two XLR-1/4" mic/line combo input jacks
• One 1/4" Hi-Z guitar input jack
• One 3.5mm aux input
• Connecting microphones, line-level instruments, and audio playback sources
• Phantom power supports condenser microphones, while the pro-grade preamps deliver full, rich sound from any microphone
• One 1/4" passthrough lets you expand your system with additional EON ONE Compact units.
• The built-in headphone jack allows for private rehearsal and preset configuration before performances
• Two high-power USB 3.0 ports allow high-speed charging of tablets, phones, and select DJ devices

Professional Mixing Features

• The 4-channel digital mixer is fully loaded with dbx and Lexicon-inspired professional effects including 4-band EQ, reverb, chorus, and delay
• Quick-recall settings get you sounding great, fast, in any environment

Robust, Highly Portable, and Reliable

• At only 17.6 lb, the EON ONE Compact is designed to be carried effortlessly in one hand with an ergonomic handle that’s positioned for maximum comfort
• A built-in pole mount expands configuration options; illuminated ring indicators automatically align with monitor or vertical speaker orientation
• The EON ONE Compact undergoes 100 hours of stress testing to ensure that it’ll perform in real-world conditions
• The system is encased in a light, durable polypropylene shell that’s rugged enough to handle your toughest gigs yet elegant enough to display in your home

Long-Lasting Battery Life

• Play more sets or teach more classes, confident in EON ONE Compact’s 12-hour battery life
• Swap out batteries in seconds—no tools necessary—and quick-charge batteries in just 2.5 hours
• Charge the system while it is in use
• Additional batteries available separately

Ducking for Professional Engagements

• Presenters, fitness instructors, and emcees will appreciate EON ONE Compact’s ducking feature
• Lowers background music volume anytime you speak to ensure your audience hears every last word, loud and clear

Specifications

• Speaker Configuration
  • 1x 2-Way Loudspeaker
• Number of Input Channels
  • 4 (3 x Mono, 1 x Stereo)
• Amplifier Power Rating
  • LF: 1x 100 W
  • HF: 1x 20 W
• Amplifier Class
  • Class-D
• Enclosure Type
  • Speaker: Bass-Reflex
• HF Driver
  • 1x 1" / 25.4 mm Tweeter
• LF Driver
  • 1x 8" / 203.2 mm
• EQ
  • 1x HF Shelf
  • 1x LF Shelf
• Effects
  • 1x Reverb
  • 1x Delay
  • 1x Chorus
• Frequency Response
  • Speaker: 37.5 Hz to 20 kHz
• Maximum SPL
  • Speaker: 112 dB (Peak)
• Coverage Angle
  • 100° H x 60° V (Main)
• Audio I/O
  • 2x Combo XLR-1/4" TRS Female Balanced/Unbalanced Mic/Line Input
  • 1x 1/4" TS Unbalanced Hi-Z Input
  • 1x 1/8" / 3.5 mm TRS Female Balanced Line/Aux Input
  • 1x 1/4" TRS Female Output
  • 1x 1/8" / 3.5 mm TRS Female Output
• Phantom Power
  • +48 V (Switchable)
• USB I/O
  • 2x USB-A (Device Charging)
• Connectivity
  • Bluetooth
• Max Wireless Range
  • Bluetooth: 30' / 9.1 m
• Battery Type
  • Speaker: 1x Rechargeable Lithium-Ion (Replaceable)
• Approximate Battery Life
  • Speaker: 6 Hours (Lithium, High Power)
  • Speaker: 12 Hours (Lithium, Low Power)
• Battery Charging Time
  • Speaker: 2.5 Hours
• AC Power I/O
  • 1x IEC Input
• Transport Options
  • Speaker: 1x Handle (Top)
• Mounting
  • 1 x 1.38" / 35 mm Pole Socket (Bottom)
• Construction Material
  • Polypropylene
• Dimensions
  • 15.71 x 11.46 x 10.04" / 399 x 291 x 255 mm
• Weight
  • Speaker: 17.6 lb / 7.98 kg

In The Box

• JBL EON ONE Compact All-in-One Rechargeable Personal PA
• Power Cord
• Rechargeable Battery
• Limited 1-Year Manufacturer Warranty
