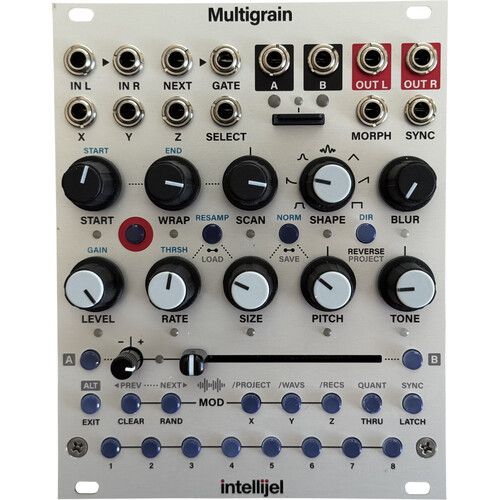

INTELLIJEL MULTIGRAIN 3u | Stereo Morphing Granular Sampler

Multigrain

Stereo Morphing Granular Sampler Eurorack Module (20 HP)

Layer sounds and sequences with the intellijel Multigrain, an eight-channel stereo morphing granular sampler Eurorack module. Load sounds from the included microSD library or record directly on the module and manipulate them using the powerful granular synthesis engine. Each of the eight sound buttons plays grains generated from its own sample and its own pair of Scenes, which are two completely different sets of granular parameters that can be mixed/blended thanks to the dedicated Morphing Fader. You can also utilize CV to smoothly morph between these two Scenes.

There are 48 projects, each with 48 presets, allow you to save, load, and organize different sets of samples and settings. There is 48 kHz 24-bit stereo I/O and 32-bit floating-point internal processing for hi-fi output. The dedicated Select, Next, and Gate CV inputs allow you to sequence the playback of all eight sounds. Assignable X/Y/Z CV and internal random S&H generator can be applied to any and all granular parameters at once. Assignable MOD A/B outputs let you modulate other modules in time with Multigrain. A 32GB microSD card, ribbon power cable, and mounting screws are included.

• Eight Sounds available at once—each Sound can be freely assigned from the MicroSD card or by sampling directly into the module.
• Latch your sound for drones or use unlatched for percussive bursts of sound
• Morph each Sound between two Scenes—two individual sets of parameters for each Sound
• 13 Dedicated Granular Parameters—10 per-knob functions, 3 behaviour toggles
• Built-in per-sound pitch quantizer
• Clock sync toggle and input
• Blur (hi-fi reverb)—process your grains and L/R Inputs through a unique reverb
• Sample directly on the module
• Sample the L/R inputs directly
  • Resample (internally) the L/R outputs to reprocess your new sounds
  • Optional Normalize feature for maximum dynamic range
  • 32-second always-listening recording buffer—capture the sounds you thought you missed
  • Advanced sample trimming UI built into the module
• Use dedicated Next, Select, and Gate CV to surf or sequence through sounds
• 4 assignable channels of modulation
  • 3 assignable CV inputs
  • Internal random source
  • All is assignable with attenuvertion to any and all parameters at once
• 2 Freely Assignable 48 kiHz modulation outputs
  • Morph position
  • Grain trigger
  • Grain envelope
  • Envelope follower (input signal)
  • Envelope follower (output signal)
  • Random sample and hold via grain trigger
• Plenty of shortcuts available for advanced users
• 32GB microSD Card (Included)
  • Front Panel accessible
  • All settings, presets, and samples are stored on microSD
  • Global WAVs folder with support for up to 128 globally available WAV files
  • Global /Recs folder to store up to 1024 recordings (WAV) made on the module
• Up to 48 projects, each project folder supports
  • Up to 48 presets
  • Up to 128 project specific WAV files
• 48 kHz 24-bit stereo I/O and 32-bit floating point internal processing
  • Supported Sample Format: 48 kHz 16-bit stereo WAV, 32-second maximum
• Eurorack format—3U / 20 HP

Part of a Nutritious Microsound Diet

Multigrain is a stereo morphing granular sampler with instant access to up to eight different audio samples (sounds) . These sounds are played back through a granular engine with morphable scenes and a reverb effect called Blur.

Granular sampling or synthesis creates small slices of audio—or grains—from a larger piece of audio. In Multigrain, streams of grains can be shaped, layered, pitched, filtered, and reversed to generate entirely new sounds.

The eight available sounds use stereo WAV files, up to 32 seconds long, to generate grains. These are loaded from the microSD card, where you can store thousands of files recorded from the inputs or resampled from the outputs.

Automation / Modulation

The granular engine has a full set of controls to shape your grains. You can apply two panel settings per sound—scenes A and B—then morph between them using the Morph fader, or automate it with the dedicated morph CV/attenuverter.

Multigrain loves modulation. It has three assignable CV inputs, which can be applied to the granular engine’s parameters. You can also apply internally generated random modulation and sync Multigrain to your system clock.

Dedicated Next, Gate, Select CV inputs allow you to sequence or surf through sounds, layering and mixing them on top of each other.

Ready for Stage

Multigrain supports up to 48 projects, each with 48 presets, so you can store multiple configurations and sample sets for instant recall. This frees you up to explore new sound palettes, while still being able to return to your favorites.

Bend any Sound into Your Own Creation

Sample your own sources (or others) directly into the module for instant gratification, or load a copy of your WAV files to the SD card with a computer, and explore the sounds like you’ve never heard them before.

Intelijel has partnered with some amazing artists to provide you with exclusive samples for use with Multigrain

• Richard Devine (Warp/Schematic)
• Speedy J (Warp/STOOR)
• Taylor Deupree (12k/Nettwerk)
• Jeremy Blake (Red Means Recording)

You’ll find these Projects on the 32GB SD card included with the module, including more sounds and samples from the staff at intellijel—over 600MB of included samples.

Eurorack Ready

• 20 HP Eurorack format module
• Includes power ribbon cable with Eurorack power headers

Specifications

• Audio I/O
  • 2x 1/8" / 3.5 mm TS Line Input
  • 2x 1/8" / 3.5 mm TS Line Output
• Media/Memory Card Slot
  • Single Slot: microSD/microSDHC [32 GB Maximum]
• Inputs/Outputs
  • IN L + IN R: 3.5mm TS Left & Right Audio Input
  • NEXT: 3.5 mm TS Advances to Next Sound (>2 V)
  • GATE Gate: 3.5mm TS Input for playing Sound (>2 V)
  • A + B: Assignable CV Outputs (±5 V)
  • OUT L + OUT R: Left & Right Audio Output
  • X, Y, Z: Assignable Modulation Inputs (±10 V)
  • SELECT: Sound Selection Input (±10 V)
  • SD Card: Card slot for microSD (≥32 GB)
  • MORPH: Morph Fader CV Input (±10 V)
  • SYNC: Sync Input for Clock Trig / Pulse (>2 V)
• Controls
  • START: Starting Position of the Next Grain
  • WRAP: Scan area from Start Position
  • SCAN: Speed & Direction of Position Scan
  • SHAPE: Grain Window Shape
  • BLUR: Reverb Send / Decay Amount
  • LEVEL: Grain Volume Level
  • RATE: Grain Trigger Rate
  • SIZE: Grain Length (20 ms to 4 secs)
  • PITCH: Grain Pitch
  • TONE: 2-pole LP-HP Filter
  • MORPH: Fader Blends Between Scenes
  • MORPH ATT: Attenuverter for Morph CV
• Power Source
  • Proprietary Interface (Included)
• Color
  • Silver

In The Box

• intellijel Multigrain Stereo Morphing Granular Sampler Eurorack Module (20 HP)
• Ribbon Power Cable
• Limited 2-Year Manufacturer Warranty
