ICON QCON Pro G2 Daw Control Surface With 9 Faders & 8 Encoders
- Catalog #: ICOC-QCONPROG2

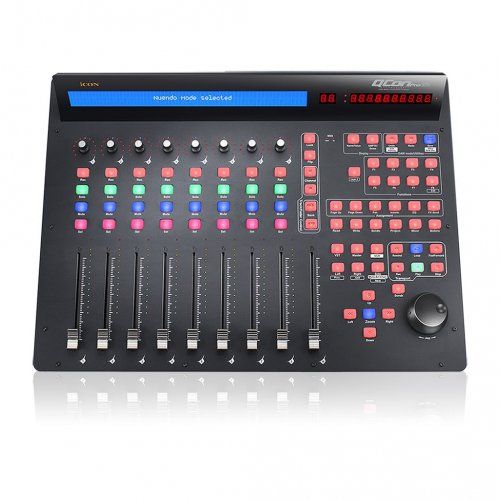

The Icon Pro Audio QCon Pro G2 is an eight channel universal control surface with Mackie Control and HUI emulation to support most major DAWs. Whether you are tracking or mixing, the QCon Pro G2 provides intuitive tactile control over your session. Set your levels, fine tune your EQs and effects, record automation, punch in and out of recordings, all at the tip of your fingers (and toes) with the QCon Pro G2’s nine motorized faders, eight multi-purpose push encoders, 78 buttons, jog shuttle wheel, and 2 foot pedal connectors. 12-segment LED level meters are provided for each channel, and a large backlit LCD screen displays channel names and values. A 12-segment LED display is also provided for SMPTE or MIDI beat clock.
The Icon Pro Audio QCon Pro G2 features Mackie Control and HUI emulation and includes overlays for popular DAWs including Cubase/Nuendo, Logic Pro, Ableton Live, ProTools, Studio One, Digital Performer, FL Studio, Samplitude, Reaper, Bitwig, Reason, Sonar, and Audition. A User Defined mode is also included to create custom presets.
The QCon Pro G2 is class-compliant with Windows XP, Vista, Windows 7/8/10, and Mac OS X and features a high speed USB 2.0 connection. The QCon Pro G2 is expendable to up to 32 channels using three Qcon EX G2 extenders.
Features
- 8 touch-sensitive motorized channel faders
- 1 touch-sensitive motorized fader for master channel
- 8 x push-encoders with 11-segment LED rings
- 12-segment LED level metering for channels
- Large backlit LCD to display channel name, control values etc. for each channel
- 12-segment LED display showing time location of your project in either SMPTE or Midi beat clock (bars : beats : ticks) format
- 78 assignable buttons for user defined mode
- Jog wheel shuttle for fast search and control
- Illuminated buttons for each channel including Record enable, Solo, Mute, Select and Monitor
- 6 illuminated transport buttons: Play, Stop, Rec, Rewind, Fast forward and Loop
- Illuminated zoom section with 4 direction keys
- Mackie Control and HUI Universal emulation
- iMap software is provided for customized mappings in User Defined mode
- Expandable to 32-channels with 3 Qcon EX G2 units
- User A & User B 1/4” TRS foot pedal connectors
- Class-compliant with Windows XP, Vista (32-bit), Windows 7/8/10 (32-bit & 64-bit), and Mac OS X (IntelMac)
- USB 2.0 high speed connectivity
- Firmware upgradeable over USB
- Includes overlays for Cubase/Nuendo, Logic Pro, Ableton Live, ProTools, Studio One, Digital Performer, FL Studio, Samplitude, Reaper, Bitwig, Reason, Sonar, and Audition.
- Robust aluminum and metal casing with Kensington lock port
