HERITAGE AUDIO I73 Pro 2 | 2 X 4 Usb-c Interface With Integrated 2x 73 Style Preamp

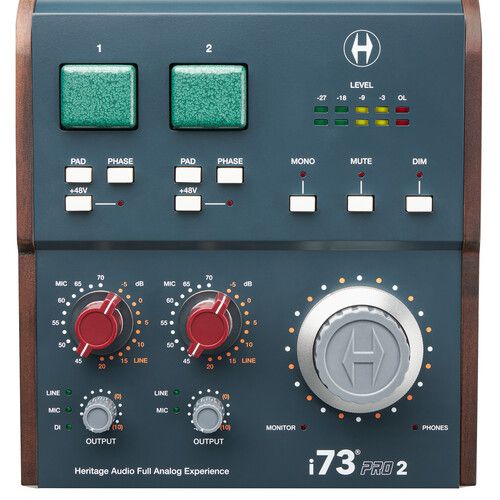

i73 PRO 2

USB-C Audio Interface

The first ever audio interface with two pure Class-A transformer-coupled 73-style preamps built in, the Heritage Audio i73 PRO 2 2x4 USB-C Audio Interface lets musicians, producers, and audio engineers track with all of that classic golden-era analog sound, directly into their computer. The interface features a low-latency monitoring/mixing console, ensuring you hear precisely what you need through either the monitor output or the headphone cue, each with its own independently configurable mix within the Heritage Audio MIXER running inside the i73 PRO 2. Plus, a comprehensive suite of DSP-powered plug-ins meticulously modeled after Heritage Audio's outboard gear lets you recreate the rich character of analog processing right out of the box.

By adding a set of MIDI I/O, a state-of-the art headphone amp, and attractive classic European-console design, the i73 PRO 2 is a smart choice for the centerpiece of your home or project studio, effortlessly bridging the gap between vintage warmth and modern digital recording.

Two Heritage Audio 73-Style Preamps

As with all of Heritage Audio’s 73-style preamps, there are three options for input. Whether you want to run vocals through the MIC preamp with up to 70 dB of gain or send your electric guitar/bass through the fast dynamic JFET DI or the clean LINE inputs, the i73 PRO 2 can route whatever the signal may be to your DAW, with true studio quality.

Process Your Tracks in Real Time

Process your tracks in real time within Heritage Audio’s MIXER with an ever growing comprehensive set of plug-ins modeled after Heritage Audio’s own outboard and private gear collection, running internally over i73 PRO 2’s DSP.

Record both DRY and WET streams from the MIXER to your DAW at the same time.

You can even insert third-party native plug-ins via the MIXER’s Aux channels.

Features

• 2-in / 4-out USB-C audio interface.
• 2 pure Class-A transformer-coupled 73-style preamps with up to 70 dB of gain for true studio-quality recordings.
• 2 microphone/line input on combo-XLR jacks and 1 dedicated JFET DI input on 1/4" jack for Hi-Z instruments.
• Analog stereo monitor output over 1/4" TRS independently controlled by Heritage Audio's MIXER.
• Stereo headphone output controlled independently by Heritage Audio's MIXER.
• Direct monitoring with Heritage Audio's MIXER software, processed in real time with near-zero latency.
• Class-leading 24-bit / 192 kHz AD/DA conversion for recording, mixing, and playing back.
• Access to a growing collection of Heritage Audio plug-in effects modeled after Heritage Audio's own outboard and Heritage Audio's private gear collection.
• Supports recording of both WET and DRY streams from the MIXER to your DAW at the same time.
• +48V phantom power, independent PAD and PHASE switches for each analog input channel.
• MONO, MUTE, and DIM monitor controls.
• Mini-DIN MIDI in/out connector.
• Classic attractive European console design

Specifications

• Channels of I/O
  • 2 Inputs / 4 Outputs at 192 kHz
• Maximum Sampling Rate
  • 192 kHz / 24-Bit
• Number of Microphone Inputs
  • 2
• Input Level Adjustment
  • Knob
• Pad
  • -10 dB (Switchable per Channel)
• Solo/Mute
  • Mute per Master
• Analog Audio I/O
  • 2x Combo XLR-1/4" 3-Pin Balanced Mic/Line Input
  • 1x 1/4" TS Unbalanced Hi-Z Input
  • 2x 1/4" TRS Balanced Monitor Output
  • 1x 1/4" TRS Headphone Output
• Phantom Power
  • 48 V
• Host Connection
  • USB-C
• MIDI I/O
  • 1x Mini-DIN 6-Pin Breakout Cable Connector (Breakout Cable Not Included)
• Sample Rates
  • Up to 192 kHz
• Bit Depths
  • 24-Bit
• Sync Sources
  • Internal
• OS Compatibility
  • macOS / Windows
• Power Requirements
  • AC/DC Power Adapter (Included)

In The Box

• Heritage Audio i73 PRO 2 USB-C Audio Interface
• USB-C Cable
• Power Supply
• Limited 1-Year Manufacturer Warranty
