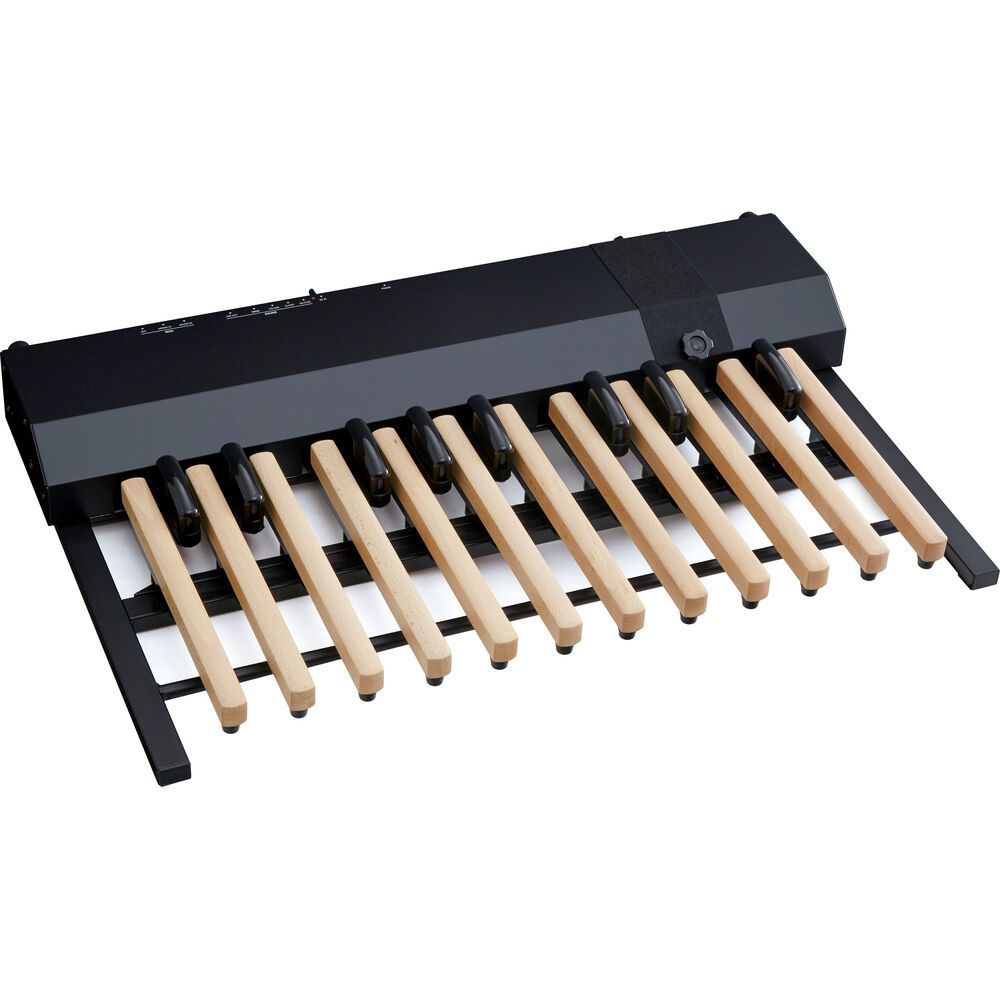

HAMMOND XPK-200GL | 20 Note Midi Sound Pedalboard

XPK-200GL

20-Note MIDI Sound Pedalboard with Built-In Sounds

If you find traditional 25-note pedal claviers heavy and bulky to move about, the Hammond XPK-200GL provides a great alternative, with its "long stick" design. Connect it via MIDI and play the classic Bass Pedal sounds found onboard every modern Hammond. If you wish to use this pedalboard situated below an electric piano/other keyboard or even by itself, connect the XPK-200GL to an appropriate amp and use one of the 5 built-in sounds. Either way, you'll get to the bottom of your bass needs. A mounting bracket for the optional Hammond Swell Pedals [EXP-100f / EXP-50/EXP-50J] is included in the package.

Note: The XPK-200GL will NOT retrofit to play the pedal voices of a vintage, mechanical Hammond

• 20-note pedalboard with wooden white keys
• Velocity-sensitive notes
• Internal sound generator for standalone use: Electric Organ, Pipe Organ, Synthesizer Bass, Fingered Bass, Upright Bass
• Trigger a sound module or virtual instrument
• Cutoff filter to shape your sound
• Velocity curve sets how notes respond to velocity
• Virtual Analog Sound Generator (monophonic, 24-bit / 32 kHz)
• MIDI Out and MIDI In connections
• MIDI Merge allows MIDI data received to be merged with the MIDI information generated and then outputted
• 1/4" Line out to connect to an amplifier
• Auto Power Off conserves energy
• Powered via AC adapter

Specifications

• Type
  • Organ Pedalboard
• Number of Pedals
  • 20x Organ Pedal
• Compatibility
  • Universal
• Inputs/Outputs
  • 1x DIN 5-Pin MIDI Input
  • 1x DIN 5-Pin MIDI Out/Thru
  • 1x DIN 5-Pin MIDI Output
• Audio Output (Line Out)
  • 1 x 1/4"
• Power Options
  • AC/DC Power Adapter (Included)
• Input Power
  • 120 VAC, 50 Hz
• Cable Length
  • 6.6' / 2 m
• Color
  • Black
• Dimensions
  • 34.3 x 22 x 4.5" / 87.1 x 55.9 x 11.4 cm
• Weight
  • 33 lb / 15 kg

In The Box

• Hammond XPK-200GL 20-Note MIDI Sound Pedalboard with Built-In Sounds
• MIDI Cable (6.5')
• Hammond Swell Mounting Bracket
• AD1-1210 AC Adapter
• Limited 1-Year Manufacturer Warranty
