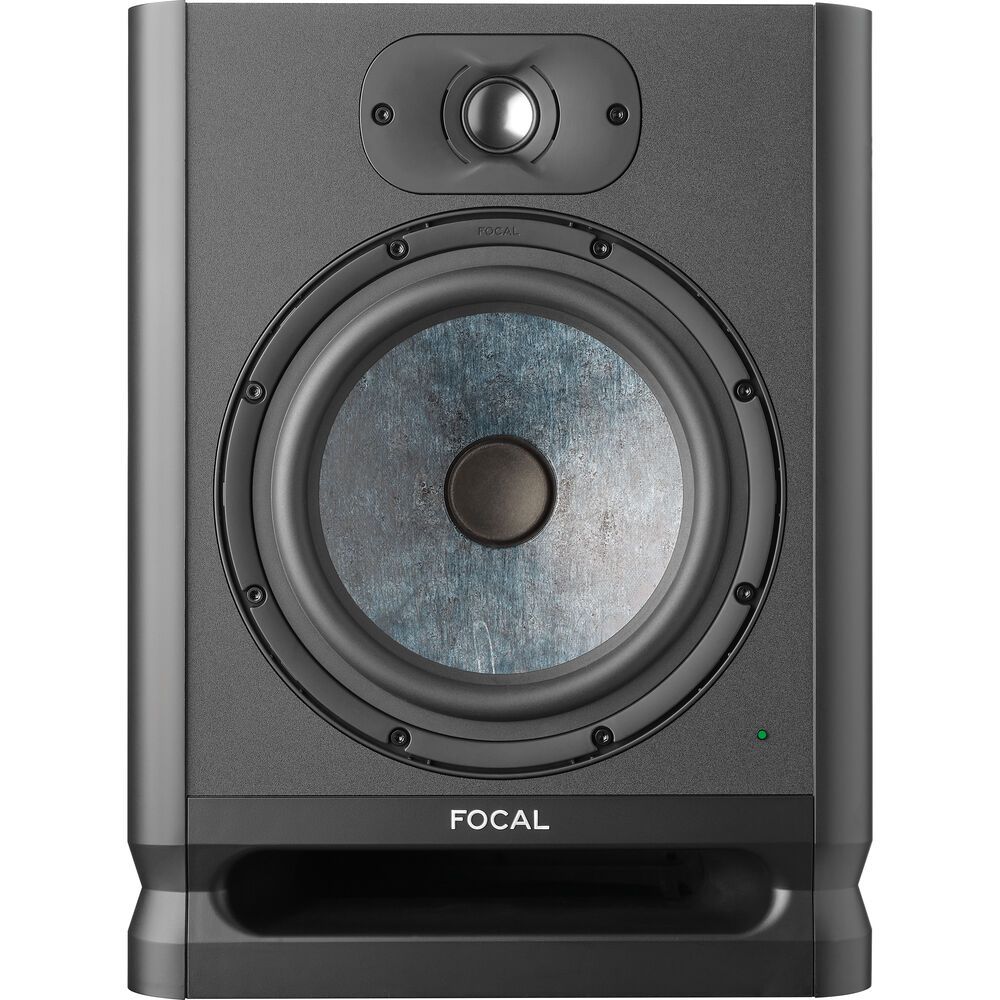

FOCAL PROFESSIONAL ALPHA Evo 80 Black | Active 2-way Studio Monitor

Alpha 80 Evo

Active 2-Way Studio Monitor

Versatility, discretion and studio performance. The benchmark in the Alpha Evo line, Alpha 80 is particularly recommended for high sound levels and extended bass. With its 21 cm woofer with Slatefiber cone, this amplified monitoring loudspeaker offers great neutrality across the entire spectrum and excellent dynamics with very low distortion.

Polyvalence

Connection of up to three audio sources (XLR, TRS and RCA inputs), disengageable automatic standby mode, wall or ceiling mounting: Alpha 80 Evo integrates a wide range of features for mixing, mastering or broadcasting.p>

Optimal Integration

Featuring a large-section vent for a compact bass-reflex design, rounded contours and robust side panels to enhance the sound, Alpha 80 Evo integrates easily into studios without compromising performance.

Performance

The woofer features a Slatefiber diaphragm renowned for its neutral sound and low distortion. Added to this are an aluminum tweeter for fine treble and two high-current amplifiers for dynamic signal control.

Specifications

• Type
  • 2-way monitor
• Loudspeakers
  • Woofer : 8" Slatefiber membrane
  • Tweeter : 1" Aluminium inverted dome
• Frequency response (+/- 3dB)
  • 38 Hz - 22 kHz
• Maximum SPL (peak@1m)
  • 106 dB
• Inputs
  • TRS: symmetrical 10 kOhms
  • XLR: symmetrical 10 kOhms
  • RCA: asymmetrical 10 kOhms with compensanted sensitivity
• LED
  • Power On LED
• Local supply
  • 100 - 240V - (T2AL fuse/250V)
• High frequency amplifier
  • 35 W, class D
• Bass level (>250Hz)
  • Adjustable +/-6dB
• Power on/of
  • On/Off switch on the rear panel
• Mid-range and low frequency amplifier
  • 80 W, class D
• Treble level (< 4.5kHz)
  • Adjustable +/-3dB
• Indicators and controls
  • Sensitivity
  • Auto standby
  • LF Shelv, HF Shelv
• Accessories sold seperately
  • Accessory Box Alpha 80 Evo
    • Includes 2 grills (woofer and tweeter) as well as 4 small rubber feet
• Dimensions
  • Height : 39 cm / 15.35 in
  • Width : 29.6 cm / 11.65 in
  • Depth : 33 cm / 13 in
• Weight
  • 9.8 kg / 21.6 lb

In The Box

• Focal Alpha 80 Evo 8" Active 2-Way Studio Monitor
• IEC Cable
