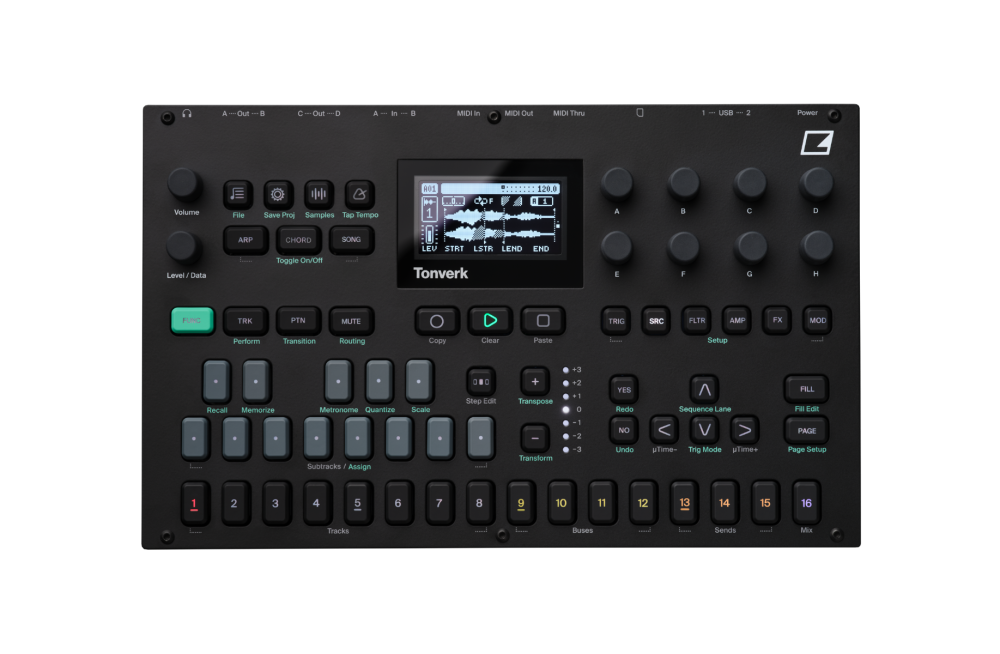

ELEKTRON TONVERK | Polyphonic Multisampler & Audio Processor

Tonverk

Polyphonic Multisampler & Audio Processor

This is a machine primed for adventure: an instrument to propel you towards extraordinary music-making and boundless sound exploration. Tonverk is both a revelatory pathfinder and wondrous labyrinth to immerse yourself in, offering diverse solutions to capture, process, and route your sound.

It can be;

• your versatile polyphonic sampler
• your routing playground
• your FX blender
• your machine with tracks within tracks
• your multi-tonal factory

Tonverk has eight audio tracks that can be utilized in different ways depending on where you want to take your sounds. There are a further eight tracks for buses, sends, and mix - all primed for relentless routing, putting a wealth of fresh FX flavors in your hands for use across the box. You're invited to enter a gateway to fantastic fun and experimentation. And, like all adventures, the beginning offers only a glimpse of what’s to come.

• 16 tracks (12 of which can be MIDI), each with its own 256-step sequencer •
• 8 audio •
• 4 bus tracks •
• 3 send tracks •
• 1 mix track Massive list of FX (with lots of newcomers)
• Loads of modulation
• Extensive routing possibilities, both internally and externally
• Recorder - for straightforward audio sampling, externally or internally
• Auto Sampler - Use MIDI to automatically multisample your favorite instrument
• + a lot more, including familiar Elektron workflow enhancers

Machines per audio track

• SINGLE PLAYER
  • Lets you play single WAV files (mono or stereo) polyphonically. Change playback behavior of your sample, set loop points, and smooth it out with the crossfade parameter for seamless looping. And more.
• MULTI PLAYER
  • Lets you load a multisampled instrument from Tonverk's library and play it polyphonically. Using Auto Sampler you can also create your own multisampled instruments
• SUBTRACKS
  • Adds 8 monophonic, multi-timbral Subtracks to one track, each with its own sample, sequencer, and individual parameter controls. 8 in 1!
• MIDI
  • Turns the selected track into a MIDI track

Specifications

Main Features

• 8 voices per audio track
• 4 × selectable machines per audio track:
  • Single Player
  • Multi Player
  • Subtracks
  • MIDI (also selectable on the bus tracks)
• 8 × stereo audio tracks
• 4 × bus tracks
• 3 × send effect tracks
• 1 × mix track
• 1 × digital base-width filter per track/subtrack
• 2 × assignable LFOs per track
• 1 × assignable modulation envelope per voice
• 2 × assignable FX LFOs per audio track
• 2 × assignable LFOs per effect bus, send effect, and mix
• Modulation setup per track for pitch bend, mod wheel, breath control, aftertouch
• Step Edit
• Extensive routing options
• Diverse sound library (single samples, drum sets, multi-sampled instruments, and presets)

MIDI track features

• 16 note polyphony per step
• 16 × assignable CC controls
• 2 × assignable LFOs per track

Performance features

• 2 × Trig modes
• Tracks
• Velocity
• Keyboard mode with 36 different scales
• Song mode
• Chord mode

Sequencer

• Up to 256 steps per pattern and track
• Arpeggiator per audio & MIDI track
• Polyphonic sequencing
• Individual pattern length per track
• Individual time scale multiplier per track
• Parameter locks
• Trig conditions & trig chance
• Retrig (audio & MIDI tracks only)
• Micro timing
• Sequencer lanes

Effects (dependent on track type, refer to manual)

• Comb +/- Filter
• Filterbank
• Low-pass Filter
• Multimode Filter
• Infinite Flanger
• Panoramic Chorus
• Phase 98
• Warble
• Chrono Pitch
• Frequency Warper
• Compressor
• Degrader
• Dirtshaper
• Daisy Delay
• Saturator Delay
• Rumsklang Reverb
• Supervoid Reverb

Hardware

• 128 × 64 pixel OLED screen
• 4 × ¼” impedance balanced audio out jacks
• 2 × ¼” balanced audio in jacks
• 1 × ¼” stereo headphone jack
• 48 kHz, 24-bit D/A and A/D converters
• 2 × USB-C port
• MIDI In/Out/Thru with DIN Sync out
• SD Card slot

Physical specifications

• Sturdy steel casing
• Dimensions: W 286 × D 176 × H 63 mm (11.3″ × 6.9″ × 2.5″) (including knobs and feet)
• Weight: approximately 1.85 kg (4.08 lbs)
• 100 × 100 mm VESA mounting holes. Use M4 screws with a max length of 7 mm

Miscellaneous

• Class Compliant USB Audio
• External Input mixer with routable outputs
• 3 year Elektron warranty

In The Box

• Tonverk | Polyphonic Multisampler & Audio Processor
• 64 GB SD card
• Power Supply PSU-5
• Elektron USB-C cable
• Exclusive artwork
