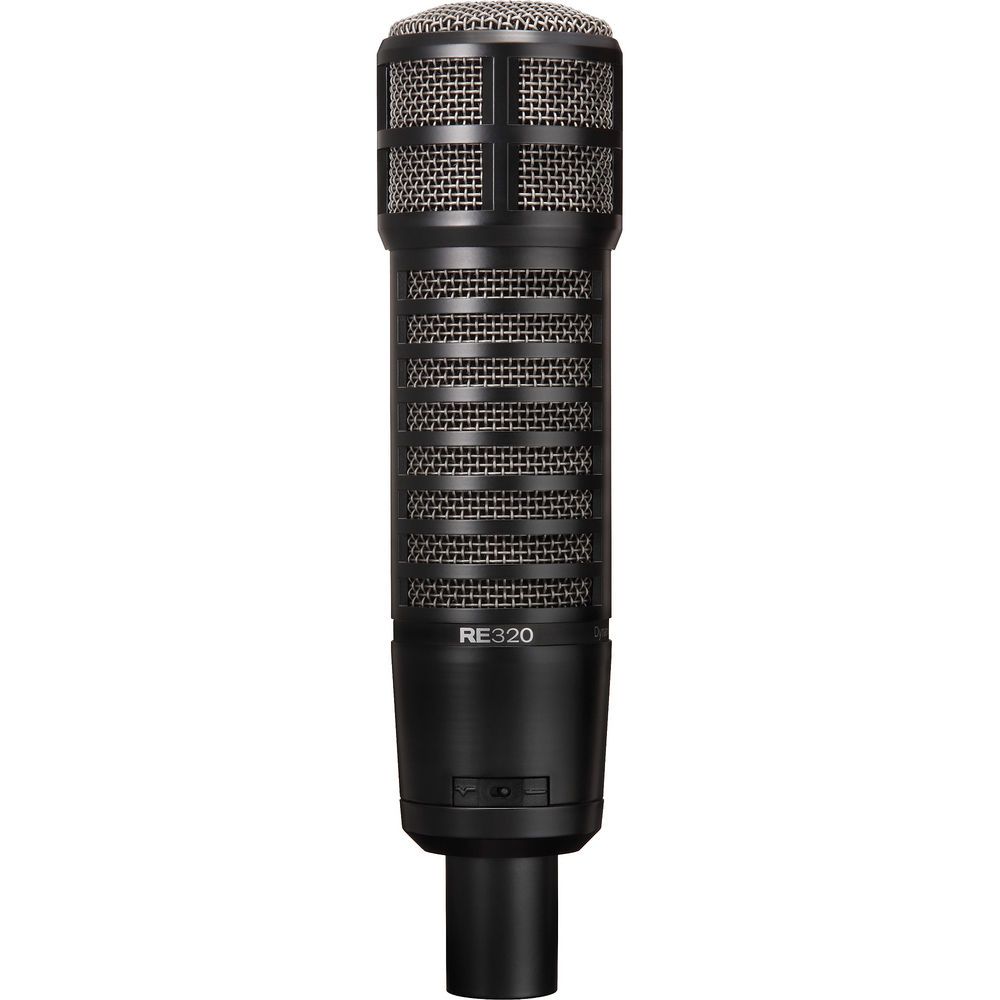

ELECTRO-VOICE RE320 | Variable-d Cardioid Dynamic Microphone

RE320

Variable-D Dynamic Vocal and Instrument Microphone

The RE320 Variable-D Dynamic Microphone features a neodymium element, sensitivity, and frequency response well suited to handle the gamut of recording applications.

Electro-Voice's Variable-D tonal response aides in combating the proximity effect as well as create an even tonal response at 180° of the capsule making it suitable for capturing a wide variety of vocal and instrument sources. Its neodymium capsule handles high SPL levels making it great at capturing transient signals from amplifier cabinets, percussion instruments, horns, loud vocals, and more.

In addition, the microphone features a kick drum curve switch, which automatically adjusts for the frequency response of kick drums. The RE320 ships with a hard case.

Two-Position Frequency Response Contour Switch

Selecting the left-hand switch position engages a curve specifically designed for use on kick drums. With dips and peaks exactly where kick drums need a little EQ attention, the result is an incredibly tight "insta-kick" sound requiring little if any additional EQ when the microphone is properly positioned at the drum.

Selecting the right-hand switch position engages a flatter, more linear curve designed to be ideal for other instruments (such as guitar amps, bass amps, low toms, percussion, brass and wind instruments etc.) as well as voice (music and speech) in many applications. The response is smooth, natural, and articulate with a minimum of discolored off-axis bleed from surrounding sound sources.

Humbucking Coil Technology

Utilizing the same humbucking coil technology found in the RE20 and RE27N/D to arrest electro-magnetic field interference introduced from sources close to the microphone, the RE320 produces an ultraquiet signal path free from the hum and buzz found in other dynamic microphones.

Variable-D

Electro-Voice’s exclusive solution to the tonal changes associated with the proximity effect found in other directional microphones. Providing balanced and uniform frequency response up to 180° off-axis, the result is always stable and linear tonal performance even when the sound source is moving around the mic.

Specifications

• Microphone Type
  • Large Diaphragm
• Polar Pattern
  • Cardioid
• Element Type
  • Dynamic
• Sound Field
  • Mono
• Orientation
  • End Address
• Controls
  • Mode
• Circuitry
  • Solid-State
• Frequency Response
  • 30 Hz to 18 kHz
• Sensitivity
  • 2.5 mV/Pa
• Analog Output
  • 1x XLR 3-Pin
• Color
  • Black
• Dimensions
  • ø: 2.14 x L: 8.53" / ø: 54.36 x L: 216.66 mm
• Weight
  • 1.5 lb / 681 g

In The Box

• Electro-Voice RE320 Variable-D Dynamic Vocal and Instrument Microphone
• 81715 Stand Clamp
• Hard Case
• Limited 3-Year Manufacturer Warranty
