ARTURIA MINIFUSE 2 Otg | On The Go Portable Interface

MiniFuse 2 OTG

2x2 USB-C Audio Interface

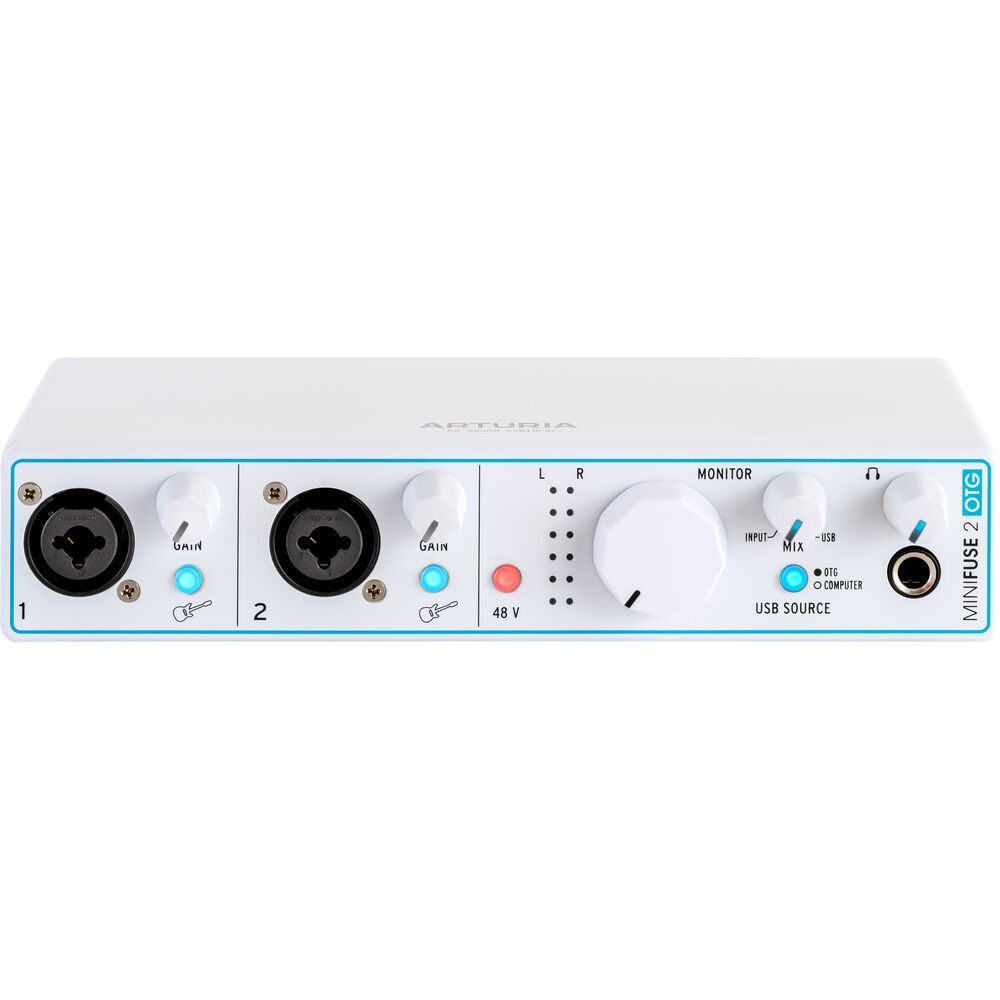

The Arturia MiniFuse 2 OTG is a portable 2-channel USB-C audio interface with a highly compact and lightweight design. With two USB-C ports, including one dedicated to OTG mobile device connections, you can work from your smart devices and take the studio with you anywhere.

The MiniFuse 2 OTG has two XLR-1/4" combo mic / line / Hi-Z inputs for handling whatever sources you want to throw at it and two 1/4" TRS outputs in the rear for analog connections to speakers and other audio devices. The unit also includes a front-panel headphone output with a dedicated volume control and a USB-A hub port for MIDI, device connections, and charging. You can activate 48V phantom power for active microphones, manually switch on Hi-Z mode on either input, and use the USB Source control to switch between analog input, USB, or a blend of both, as well as select whether to use the OTG or computer USB-C port for host connection duties. The front panel features an LED meter and a backlit gain knob. Loopback functionality makes it easy to use computer audio during a stream or while you're recording. This audio interface is fully USB bus powered and can be powered by a power bank for field-recording applications. The MiniFuse 2 OTG includes a USB-C cable, a USB-C to USB-A cable, and a suite of powerful audio software.

Capture, Create, Stream

Route audio between multiple devices and external hardware with ease. Whether you're streaming, producing, or recording, MiniFuse 2 OTG delivers high-quality sound and a mobile-friendly design.

Record or playback with a mobile device, stream and record with dual USB, record instruments or mics, share audio between two computers, mix with headphones, and monitor speaker outputs.

Ready for Mobile

Compatible with mobile and tablet devices (see arturia.com for detailed compatibility). OTG USB is compatible with 44.1 and 48 kHz sampling rates.

The Fuse Ecosystem

Exclusive tips and tutorials, a dedicated online portal, and complimentary intros to world-class mixing services help you get more from your setup.

Included Software

• MiniFuse Control Center, control utility companion
• Analog Lab Intro
• Chorus JUN-6
• Delay TAPE 201
• Pre 1973
• Rev PLATE 140
• Ableton Live Lite
• Steinberg Cubase LE and Cubasis LE
• Izotope VEA (AI Voice Enhancement Assistant)
• Hindenburg PRO (1-year subscription)
• Auto-Tune Unlimited (3-month subscription)
• Splice Creator Plan (3-month subscription)

Specifications

• Channels of I/O
  • 2 Inputs / 3 Outputs
• Maximum Sampling Rate
  • 192 kHz / 24-Bit
• Number of Microphone Inputs
  • 2
• Input Level Adjustment
  • Knob
• Analog Audio I/O
  • 2x Combo XLR-1/4" TRS Balanced/Unbalanced Mic/Line/Hi-Z Input
  • 2x 1/4" TRS Line Output
  • 1x 1/4" TRS Headphone Output (Front Panel)
• Phantom Power
  • 48 V
• Host Connection
  • 1x USB-C (Class-/USB OTG-Compliant)
• Host Connection Protocol USB
  • 2.0 USB (Non-Host) 1x USB-A (Device Charging, Device Connection)
• MIDI I/O
  • 1x DIN 5-Pin Input 1x DIN 5-Pin Output
• Frequency Response
  • 20 Hz to 20 kHz
• Maximum Input Level
  • XLR Mic Inputs: +9 dBu
  • 1/4" Line Inputs: +22 dBu
  • 1/4" Hi-Z Inputs: +11.5 dBu
• Maximum Output Level
  • 1/4" Line Outputs: +12 dBu
  • 1/4" Headphone Outputs: +11.4 dBu
• Headphone Output Power
  • 137 mW into 33 Ohms
• Impedance
  • XLR Mic Inputs: 2.5 Kilohms
  • 1/4" Line Inputs: 16 Kilohms
  • 1/4" Hi-Z Inputs: 1.1 Megohms
• Dynamic Range
  • Inputs: 110 dBA
  • 1/4" Headphone Outputs: 104 dBA
  • 1/4" Speaker Outputs: 107.5 dBA
• THD+N
  • Mic/Line Inputs: -100 dBA
  • Hi-Z Inputs: -91 dBA
• Sample Rates
  • Up to 192 kHz
• Bit Depths
  • 24-Bit
• OS Compatibility
  • Computer: Windows / macOS
  • Mobile: Android/iOS
• Required Hardware
  • USB Cable
• Power Requirements
  • USB Bus Power

In The Box

• Arturia MiniFuse 2 OTG 2x2 USB-C Audio Interface
• USB-C Cable
• USB-C to USB-A Cable
• Limited 2-Year Manufacturer Warranty
