ALLEN & HEATH XONE:24 | Compact 2+1 Channel All Analogue Mixer

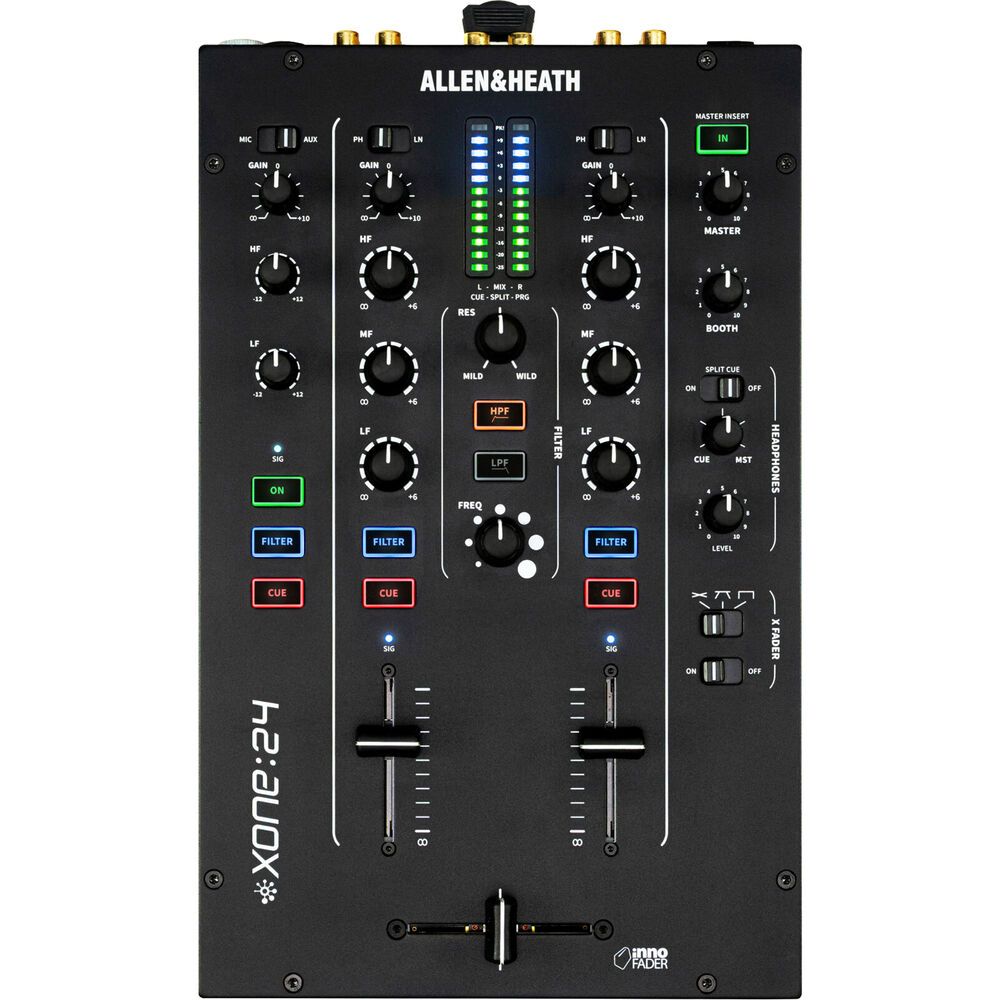

Xone:24

Professional 2+1 Channel Analog DJ Mixer

The Xone:24 is a 2-channel analog mixer that offers a perfect balance of simplicity and powerful sound-shaping tools. Equipped with Allen & Heath's VCF filter system, the mixer features high-pass, low-pass, and band-pass filters, all adjustable for frequency and resonance, allowing DJs to add creative flair while maintaining a straightforward workflow.

The Xone:24 offers that classic, rich Allen & Heath sound in a compact and durable form. The mixer’s versatility shines with its phono/line switch on each channel, responsive EQs, and a dedicated mic input, making it ideal for a range of setups from vinyl-only sessions to digital DJing or live streams. Its intuitive layout and sturdy build ensure a reliable, enjoyable experience, giving DJs the confidence to focus on their performance.

• Analog signal path:
  • Low-noise, high-gain RIAA preamp
  • 3-band isolator EQ
  • Warm pure analog summing
  • Matched Phono/Line inputs
• Classic Xone: VCF (Voltage Controlled Filter)
• Mini innoFADER crossfader
• Master insert / FX with switch
• Tactile illuminated switches with backlight
• Latching/non-latching Cue modes
• RGB chromatic channel meters

Legendary Xone Filter

Xone:24 features the Mini innoFADER crossfader, trusted by DJs worldwide for its smooth response and durability. Backlit switches, responsive metering, and comprehensive I/O round out a mixer built to deliver reliable performances, no matter where you find yourself performing.

Flexible Effects Integration

The Xone:24 introduces a Master Insert FX loop, offering easy integration with external effects via rear-panel send/return connections, making it simple to integrate the most popular effects hardware into your mixes. For venues, the Master Insert can be connected to dynamic processors, offering control over the main output for environmental or system management needs.

Specifications

• Number of Channels
  • 2x Stereo
  • 1x Mic/Aux
• Faders
  • 2x 1.8" / 45 mm Channel Level
  • 1x 1.8" / 45 mm Crossfader (Replaceable, Adjustable Fade Curve)
• Meters
  • Main Meter: 2x 12-Segment LED
  • Channel Meter: 2x Single LED
• Meter Range
  • Main Meter: -25 dB to +12 dBu Peak/Clip
• EQ
  • 4x Channel EQ:
    • Hi: 0 to +6 dB at 3 kHz
    • Mid: 0 to -30 dB at 1.1 kHz
    • Low: 0 to +6 dB at 500 Hz
  • 4x Mic/Aux EQ:
    • Hi: ±12.4 dB at 4 kHz
    • Low: ±12 dB at 160 Hz
• Performance Controls
  • Band-Pass Filter, High-Pass Filter, Low-Pass Filter
• Audio Inputs
  • 2x Stereo 2RCA Coaxial Line Input
  • 1x Stereo 2RCA Coaxial Aux/Line Input
  • 2x Stereo 2RCA Coaxial Return Input
  • 1x Combo XLR-1/4" 3-Pin Mic Input
• Audio Outputs
  • 2x XLR 3-Pin Balanced Master Output
  • 1x Stereo 2RCA Coaxial Unbalanced Booth Output
  • 1x Stereo 2RCA Coaxial Unbalanced Record Output
  • 1x Stereo 2RCA Coaxial Send Output
• Frequency Response
  • Line Input: 20 Hz to 30 kHz ±0.5 dB
• Headroom
  • 22 dB
• Gain/Trim Range
  • Mic Input: +40 dB
  • Stereo RCA Phono Input: 42 dB
• Output Level
  • Master: +22 dBu
  • Booth: +18 dBu
  • Stereo RCA Record: +8 dBV
• Crosstalk
  • <-85 dB (@1kHz +10 dBu)
• SNR
  • <-93 dBu
• THD
  • 0.01%
• Power Requirements
  • AC/DC Power Adapter (Included)
• Power Supply Output
  • 12 VDC (Included)
• AC Input Power
  • 100 to 240 VAC, 50/60 Hz
• Power Consumption
  • 35 W
• Current Consumption
  • 500 mA
• Dimensions (W x D x H)
  • 12.4 x 7.5 x 4.3" / 31.5 x 19.1 x 10.9 cm
• Weight
  • 6 lb / 2.7 kg

In The Box

• Allen & Heath Xone:24 Professional 2+1 Channel Analog DJ Mixer
• Power Cord
• Limited 1-Year Manufacturer Warranty
