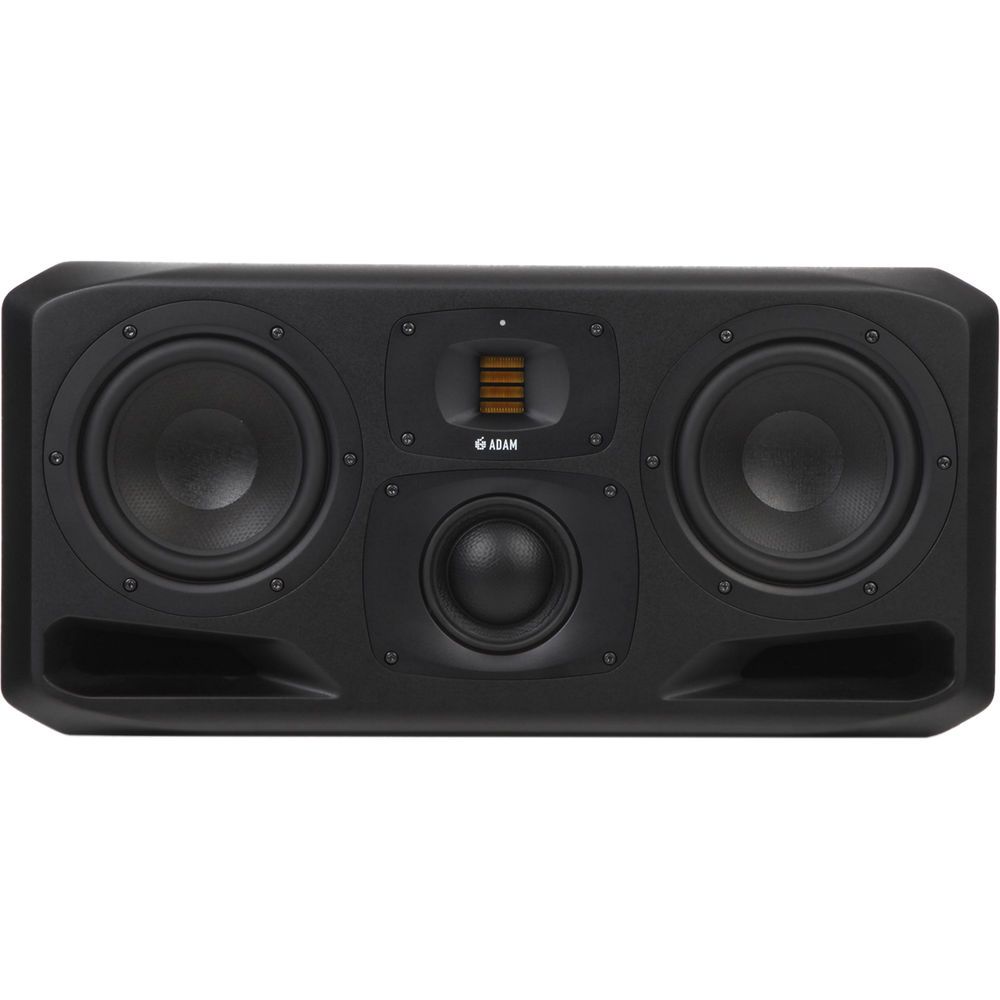

ADAM PRO AUDIO S3H | 2 X 7" Active 3-way Studio Monitor | Single

S3H

Active Three-Way 2x7" Midfield Studio Monitor - Horizontal -Single

S3H is an active studio reference monitor designed for horizontal orientation in medium-sized and smaller control rooms. Capable of delivering 1350W RMS of cumulative amp power, it features two 7” HexaCone woofers, one 4” dome/cone hybrid midrange driver, and a handmade folded-ribbon tweeter. The waveguides, Adam-designed mid- and high-range propagation systems (MPS and HPS), ensure a wide, stable sweet spot.

Developed for transparency, the S3H’s frequency response is an impressive 32 Hz – 50 kHz. A multitude of DSP options, from equalization to delay, are provided for tailoring the monitor to the room and to personal preferences. The back panel features an OLED display and a push-button/rotary encoder to allow modification of parameters. Connect a computer to the USB Type-A jack for convenient remote access to all the S3H’s settings.

Two inputs, balanced analog and AES3 digital, are available via XLR jacks. An XLR AES3 output is provided to route digital signal to the second monitor, necessary for correct digital signal flow. Vary input sensitivity and output level as needed. Load and save voicing presets for quick configuration of monitor options. If further tonal adjustments are desired, there is a 6-band parametric EQ with high-pass and low-pass filters. Use up to 5 ms of delay for timing adjustments.

Adam S Series monitors, custom-developed with no off-the-shelf components, are handmade in Berlin according to strict manufacturing tolerances.

• 2 x 7" ELE (Extended Linear Excursion) HexaCone woofers
• Redesigned bass reflex tubes minimize resonance and signal loss
• 4" carbon composite DCH (Dome/Cone Hybrid) midrange driver
• Aluminum MPS (Midrange Propagation System) waveguide
• S-ART folded ribbon tweeter with aluminum HPS (High-frequency Propagation System) waveguide
• 1350W RMS cumulative power via four amplifiers
• 2 x 500W PWM (Class D) woofer amps
• 300W PWM (Class D) midrange amp
• 50W Class A/B tweeter amp
•  32 Hz - 50 kHz frequency response
• Low harmonic distortion
• Adjustable input sensitivity and output level
• 6-band parametric equalizer with HPF and LPF filters
• Variable delay for timing adjustment
• XLR analog and AES3 digital inputs
• USB Type-A for remote access via computer

Specifications

• Monitor Enclosure
  • Bass-Reflex/Ported, Shielded
• Total Power Output
  • 1350 W RMS
• Tweeter
  • 1x 2" / 50.8 mm Ribbon
• Midrange
  • 1x 4" / 10 cm Composite Dome/Cone Hybrid
  • Voice Coil: 2.4" / 60 mm
• Woofer
  • 1x 7" / 17.8 cm HexaCone Cone
  • Voice Coil: 1.5" / 39 mm
• Amplifiers
  • HF: 50 W Class-AB
  • MF: 300 W Class-D
  • LF: 2 x 500 W Class-D
• Frequency Range
  • 32 Hz to 50 kHz
• Maximum Sound Pressure Level (SPL)
  • 126 dB
• Total Harmonic Distortion (THD)
  • 0.4% Maximum Input Level +24 dBu
• EQ
  • 1x HF Shelf
  • 1x LF Shelf
• Crossover Frequency
  • Low-Pass: 250 Hz
  • High-Pass: 3 kHz
• Audio I/O
  • 1x XLR 3-Pin Balanced Input (48 Kilohms)
• Digital Audio I/O
  • 1x XLR 3-Pin AES3 Input
  • 1x XLR 3-Pin AES3 Output
• USB
  • 1x USB-B (Remote)
• AC Input Power
  • 100 to 240 VAC, 50/60 Hz
• Power Consumption
  • 550 W (Maximum)
• Color
  • Black Monitor
• Orientation
  • Horizontal
• Dimensions (W x H x D)
  • 23 x 11 x 15" / 585 x 280 x 380 mm
• Weight
  • 58.6 lb / 26.6 kg

In The Box

• Adam Professional Audio S3H Active Three-Way 2x7" Midfield Studio Monitor (Horizontal, Single)
• IEC Power Cord
• Limited 2-Year Warranty
